Designing the Support Into New Equipment

New-machine projects allow the bearing position to be engineered before the frame, guards and nearby components become fixed. That makes early interface planning more valuable than simply selecting a familiar housing and drawing the structure around it later.

Start by reserving a clear shaft line and the envelope needed by the chosen mounting form. Leave realistic room for bolts, collars, grease access and eventual removal. A housing that fits in a CAD model can still become awkward on the shop floor if a guard blocks the fastener path or if a wrench cannot reach the locking feature after the rest of the machine is assembled.

The design record should identify the exact product reference, the shaft size, the locking method and the mounting dimensions that locate the unit. Put these items in the bill of materials rather than relying on a generic note such as "flange bearing." Doing so makes the first build easier to inspect and gives future maintenance teams a better starting point when the same support must be replaced.

Think about spares at the same stage. If several positions could share one product, verify the interfaces deliberately instead of assuming commonality because the shaft diameters match. A small amount of design discipline now can prevent a plant from carrying several almost-identical housings that cannot actually substitute for one another.

Technical Specifications & Drawing

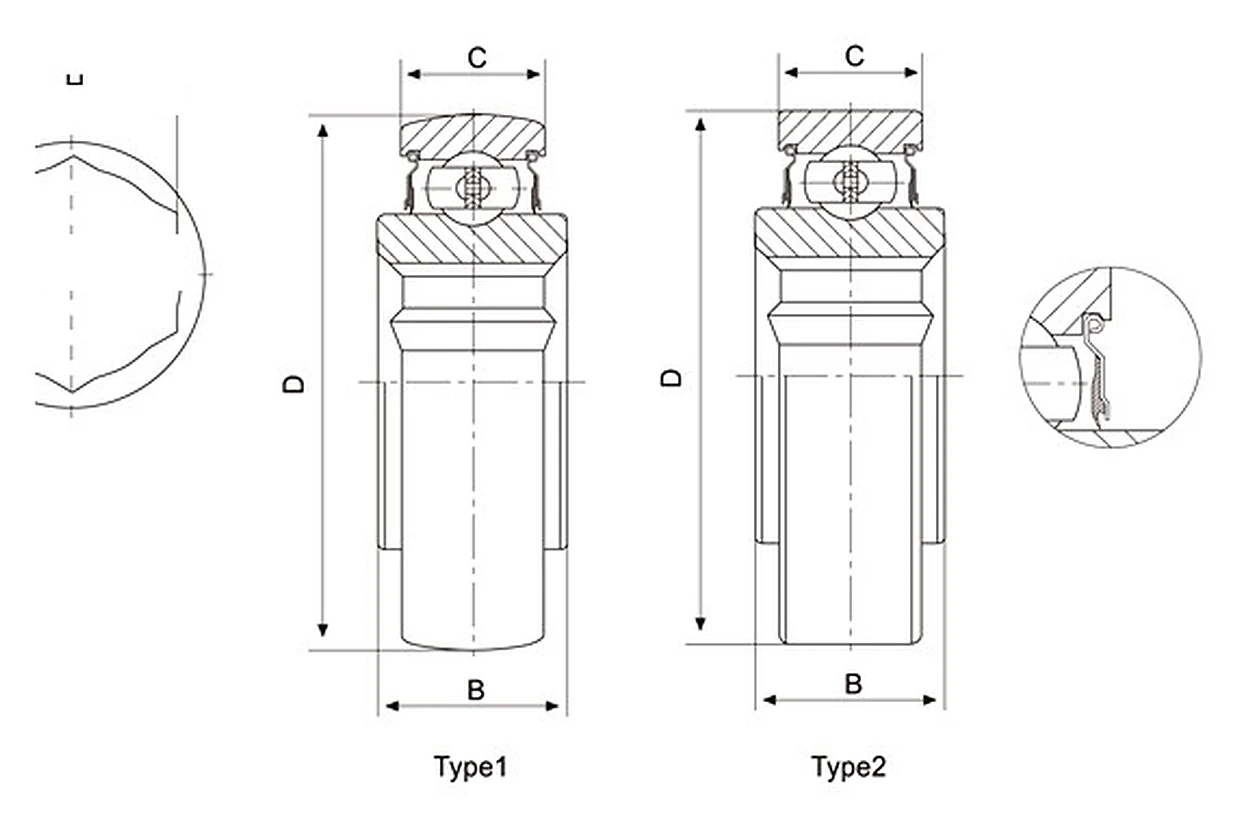

Use the drawing to compare bore form, seal arrangement and implement seating geometry. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.

Applications

Related Products

New-build RFQ

For FARM-RELUBE, provide the build quantity, hex shaft size, machine drawing and service environment. Include the bearing number from the table above if a specific model has been pre-selected.
