SAF500 Series Split Plummer Block Bearing Housings
SAF500 is the inch-oriented heavy industrial member of this plummer-block group. The source catalogue lists SAF505 through SAF544 and shaft options from 3/4 in up to 7-15/16 in, depending on the bearing and housing combination.
That inch basis is a major selection clue. On imported or legacy machinery, converting measurements too early to approximate metric values can send the cross-reference toward the wrong family. Keep shaft diameter, housing number, bearing and adapter sleeve in their original identification system until the fit is confirmed.
For a wider housing comparison, browse the bearings range before finalising the mounting style.
Keep the original inch references during cross-checking
Use the product drawing as the final dimensional authority. The points below are practical filters that help narrow the correct model before a full drawing comparison.
Record the measured diameter exactly rather than rounding to a metric equivalent for convenience.
The casting size and the internal bearing combination should both be confirmed.

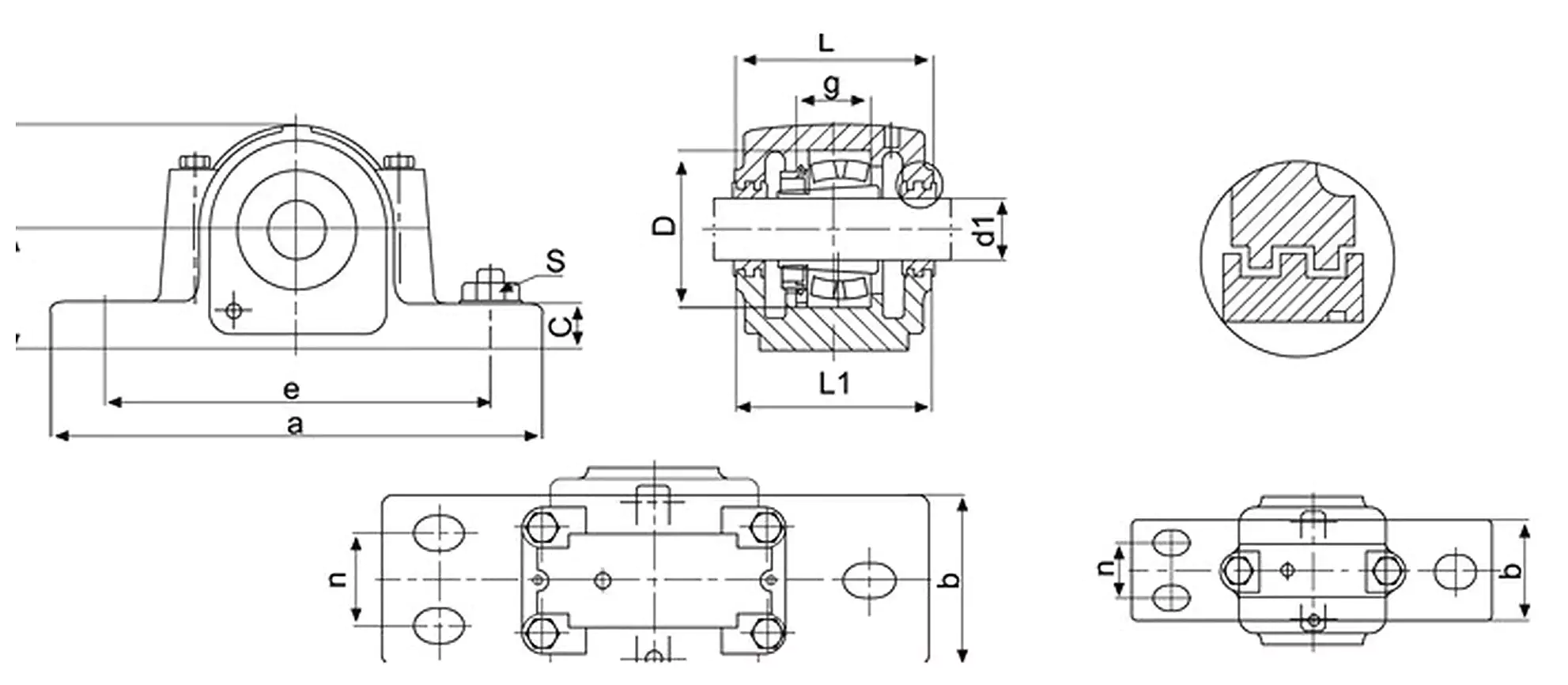

Check L, L1, a, b, c, e and mounting details against the existing pedestal.
A heavy housing replacement should include the surrounding sealing and locating components in the review.
Heavy split housing with inch-based selection
Heavy industrial split housing
SAF500 is identified in the catalogue as the heavy industrial option in this group.
3/4 to 7-15/16 in shaft options
The published series is organised around inch shaft combinations rather than a metric bore list.
Separate bearing and adapter sleeve
The complete support is assembled from compatible housing, bearing, sleeve and locating components.
Foot-mounted serviceable pedestal
The split cap provides bearing access while the base remains mounted on the machine.
SAF500 published technical range
The table below keeps the catalogue values used for this series. Use the model-specific drawing for the final interchange decision; dimensions and suffixes can vary inside a family.
| Specification point | SAF500 catalogue data |
|---|---|
| Series / model family | SAF505 to SAF544 |
| Duty class | Heavy industrial split housing |
| Locking / bearing mounting | Bearing and adapter-sleeve arrangement selected by shaft and bearing |
| Published shaft range | 3/4 to 7-15/16 in shaft options shown in catalogue |
| Published metric / inch options | Inch shaft series from 3/4 in up to 7-15/16 in, depending on housing and bearing combination |
| Housing / mounting style | SAF-style foot-mounted split housing |
| Housing construction | Cast iron |
| Catalog dimensional fields | D, g, h, W, L, L1, a, b, c, e, e-min, n, S, bearing, adapter sleeve and locating ring |
| Published unit weight | Model dependent |
Overhaul planning for a heavy SAF housing
Large SAF housings and bearings should be treated as heavy maintenance components, not hand-held units.
Keep machined joint faces clean and free from damage during bearing removal.
Sleeves, rings and seals deserve inspection at the same time as the bearing.
Future buyers should see the original SAF, bearing and sleeve codes instead of a converted generic description.
Where SAF-style pedestals are most practical
These are application patterns where the housing concept is commonly considered. Final suitability still depends on load, speed, alignment, environment and the machine designer’s requirements.
Heavy conveyors and process drives
The split pedestal format is appropriate where large inch shafting must be serviced without dismantling the entire drive train.
Legacy North American machinery
SAF-style housings are especially relevant when old equipment documentation and shafting are specified in inches.
Large fans and rotating equipment
The foot-mounted housing provides a rebuildable support for industrial shafts and planned maintenance programs.
Plant upgrades retaining original foundations
A correct SAF cross-reference can preserve established base and shaft geometry while renewing the bearing station.
Metric 500-series alternatives require dimensional proof
SAF500 is not simply an inch-labelled SN/SNU/SNG housing. It has its own published geometry and heavy-duty model range. A metric alternative should only be considered after the shaft, foundation, centre height and complete bearing arrangement have been dimensionally verified.
Send the machine details for a model check
For SAF500, send the existing model marking, shaft diameter, mounting dimensions and a photo of the bearing position. GBC can review the information against the published series before quotation. Email: sales@australia-drive.com.
