SBLF200 & SALF200 Series 2-Bolt Flange Bearing Units — Light Duty, Compact Oval Housing
The SBLF200 and SALF200 series provide a light duty two-bolt oval flange in a compact housing that is significantly smaller and lighter than the equivalent UCFL200 for the same bore size. Where the UCFL200 is the standard oval flange for light to medium duty applications, the SBLF/SALF200 targets installations where the machine frame is sized to accommodate a smaller bearing housing footprint — light agricultural equipment, tabletop packaging machinery, small conveyor systems, and compact ventilation units. SBLF200 uses a setscrew insert (SB series) for bidirectional drives; SALF200 uses an eccentric collar insert (SA series) for unidirectional drives where the self-tightening collar provides more reliable retention.
Key Features
▼
Compact Lightweight Oval Housing
Significantly smaller and lighter than equivalent UCFL200 bore sizes. SBLF201 (12 mm bore) weighs only 0.27 kg. Smaller housing footprint suits compact machine frames.
🔧
SBLF200 = Setscrew / SALF200 = Eccentric Collar
Identical housing, two locking options. SBLF for bidirectional. SALF for unidirectional self-tightening. Upgrade by replacing insert only — housing unchanged.
⚙
Cast Iron Housing
Grey cast iron construction. Same corrosion resistance and surface hardness as full-duty oval flanges despite the lighter duty designation.
↔
Self-Aligning Insert
SB/SA insert bearing with spherical OD, 2° misalignment compensation, and axial float capacity.
📏
Full Metric and Inch Bore
12–40 mm metric bore with inch bore variants per housing size.
💧
Grease Fitting Standard
Factory pre-lubricated insert. Re-lubrication accessible in standard mounting orientations.

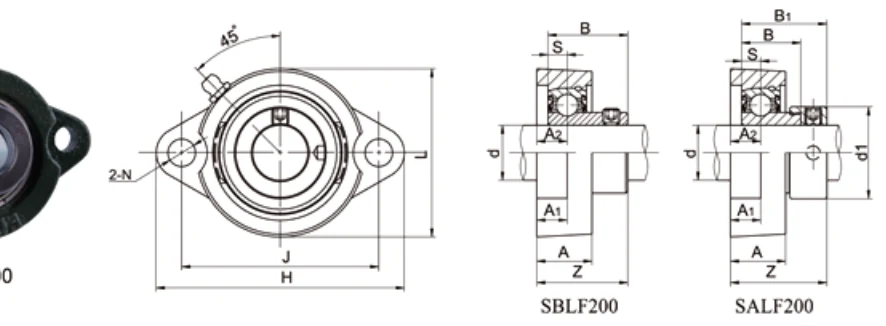

SBLF200 Series (Setscrew) Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A1 mm | A mm | N mm | L mm | B mm | S mm | Z mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBLF201 / 201-8 | 12 | 1/2 | 81 | 63.5 | 9.5 | 9.5 | 18.0 | 8 | 56 | 22 | 6.0 | 25.5 | M6 | 0.27 |
| SBLF202 / 202-9/10 | 15 | 9/16~5/8 | 81 | 63.5 | 9.5 | 9.5 | 18.0 | 8 | 56 | 22 | 6.0 | 25.5 | M6 | 0.25 |
| SBLF203 / 203-11 | 17 | 11/16 | 81 | 63.5 | 9.5 | 9.5 | 18.0 | 8 | 56 | 22 | 6.0 | 25.5 | M6 | 0.25 |
| SBLF204 / 204-12 | 20 | 3/4 | 90 | 71.5 | 11.0 | 11.0 | 20.0 | 10 | 61 | 25 | 7.0 | 29.0 | M8 | 0.33 |
| SBLF205 / 205-14~16 | 25 | 7/8~1 | 95 | 76.0 | 11.0 | 11.0 | 20.0 | 10 | 64 | 27 | 7.5 | 30.5 | M8 | 0.38 |
| SBLF206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 113 | 90.5 | 12.0 | 12.0 | 22.5 | 12 | 76 | 30 | 8.0 | 34.0 | M10 | 0.56 |
| SBLF207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 122 | 100 | 13 | 13.0 | 24 | 12 | 89 | 32 | 8.5 | 36.5 | M10 | 0.80 |
| SBLF208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 150 | 119 | 13.5 | 13.0 | 25 | 14 | 106 | 34 | 9 | 38.5 | M12 | 1.48 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
SALF200 Series (Eccentric Collar) Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A1 mm | A mm | N mm | L mm | B1 mm | B mm | S mm | Z mm | d1 mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SALF201~203 / 201-8~203-11 | 12~17 | 1/2~11/16 | 81 | 63.5 | 9.5 | 9.5 | 18.0 | 8 | 56 | 28.6 | 19.1 | 6.0 | 32.1 | 28.6 | M6 | 0.28 |
| SALF204 / 204-12 | 20 | 3/4 | 90 | 71.5 | 11.0 | 11.0 | 20.0 | 10 | 61 | 31 | 21.5 | 7.0 | 35 | 33.3 | M8 | 0.33 |
| SALF205 / 205-14~16 | 25 | 7/8~1 | 95 | 76.0 | 11.0 | 11.0 | 20.0 | 10 | 64 | 31.5 | 22 | 7.5 | 35 | 38.1 | M8 | 0.42 |
| SALF206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 113 | 90.5 | 12.0 | 12.0 | 22.5 | 12 | 76 | 35.7 | 23.8 | 8.0 | 39.7 | 44.5 | M10 | 0.60 |
| SALF207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 122 | 100 | 13.0 | 13.0 | 24.0 | 12 | 89 | 38.9 | 25.4 | 8.5 | 43.4 | 55.6 | M10 | 0.85 |
| SALF208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 150 | 119 | 13.5 | 13 | 25 | 14 | 106 | 43.7 | 30.2 | 9 | 48.2 | 60.3 | M12 | 1.48 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
B1 (SALF200) = eccentric collar insert width. d1 = eccentric collar outer diameter. Light duty: confirm application load against SB/SA insert bearing rated capacity before specifying.
Applications
🌿
Light Agricultural Equipment Oval Flanges
Seed drill metering shaft oval flanges, small sprayer pump drive supports, and compact implement auxiliary shafts where the light SBLF/SALF oval housing fits the compact implement frame sections.
📦
Compact Packaging & Labelling Oval Flanges
Label applicator roller, date coder drive, and small transfer conveyor oval flange supports in tabletop packaging equipment where unit weight affects machine portability.
⚙
Small Fan & Ventilation Oval Flanges
Small centrifugal fan shaft oval flange supports in ventilation units, fume extraction systems, and laboratory equipment where 12–20 mm shafts and compact housing are specified.
🧱
Light Conveyor & Feeder Oval Flanges
Small parts conveyor drive shaft oval flanges and vibratory feeder drive supports where load is dominated by chain or belt pre-tension and the compact SBLF housing fits the frame section.
🌳
Wood Craft & Light Processing Oval Flanges
Bandsaw guide roller shaft oval flanges and small machine tool auxiliary shaft supports where 12–25 mm shafts operate under intermittent light loads.
🔄
SBLF to SALF Upgrade on Unidirectional Drives
Any SBLF200 installation experiencing setscrew loosening on a unidirectional drive — upgrade to SALF200 eccentric collar by replacing only the insert. Housing unchanged.
