SQ...RS Series — Sealed Straight Ball Joint with Male Thread

14 bore sizes · d 5–35 mm · Male thread · Zinc-base alloy housing · Rubber dust seal

Straight Joint14 Sizes 5–35mmMale ThreadZinc Alloy HousingRubber Dust Seal

🆕 Series Overview

The SQ...RS series is the male-thread counterpart to SQZ...RS — a straight-joint ball joint with an external thread on the zinc-base alloy housing and a rubber dust seal. The external thread connects directly to female-threaded clevises and cable end fittings.

Available in 14 bore sizes from 5 mm to 35 mm. Unsealed variant designated SQ (no RS suffix). Left-hand thread suffix L. Same ball-in-zinc-alloy-housing construction as SQZ.

SQ RS rod end bearing product photo

⚙ Key Design Features

🔁

Ball Joint Construction

Hardened steel ball in zinc-alloy housing for multi-plane oscillating and angular motion.

🔒

Rubber Dust Seal

RS sealed design for contamination exclusion.

🔧

Male External Thread

External thread for connection to female-threaded clevises and cable end sockets.

✅

14 Bore Sizes

5 mm to 35 mm.

📈

Zinc-Base Alloy Housing

Corrosion-resistant, lightweight housing.

🔎

Left/Right Thread

Right-hand standard. Left-hand with suffix L.

📋 Specification Table

ⓘ L = overall length. L1 = ball housing length. D1/D2/D3 = housing diameters. S2 = housing width. Load rating in kN. Dimensions mm, weight grams.

Part No. d Thread L L1 D1 D2 D3 S2 a° Load kN Wt g
SQ5RS 5 M5x0.8 16 9 9 11 16 9 25 2.2 26
SQ6RS 6 M6x1.0 26 8 10 13 19 11 25 3.5 39
SQ8RS 8 M8x1.25 31 10 12.5 16 23 14 25 6.6 68
SQ10RS 10 M10x1.5 37 11 15 19 27 17 25 10.0 112
SQ12RS 12 M12x1.75 42 15 17.5 22 31 19 25 16 164
SQ14RS 14 M14x2.0 50 21.5 20 25 35 22 25 19 254
SQ16RS 16 M16x2.0 57 23.5 22 27 40 22 20 26 336
SQ18RS 18 M18x1.5 68 25.5 24 31 44 27 20 33 464
SQ20RS 20 M20x1.5 77 27.5 27.5 34 44 30 20 35 538
SQ22RS 22 M22x1.5 95 28 30 37 50 32 16 48 713
SQ25RS 25 M24x2.0 110 33 33.5 42 57 36 16 55 1020
SQ28RS 28 M27x2.0 125 40 37 46 64 41 16 68 1400
SQ30RS 30 M30x2.0 135 42 40 50 70 41 16 75 1700
SQ35RS 35 M36x2.0 155 50 46 58 80 50 16 100 2700

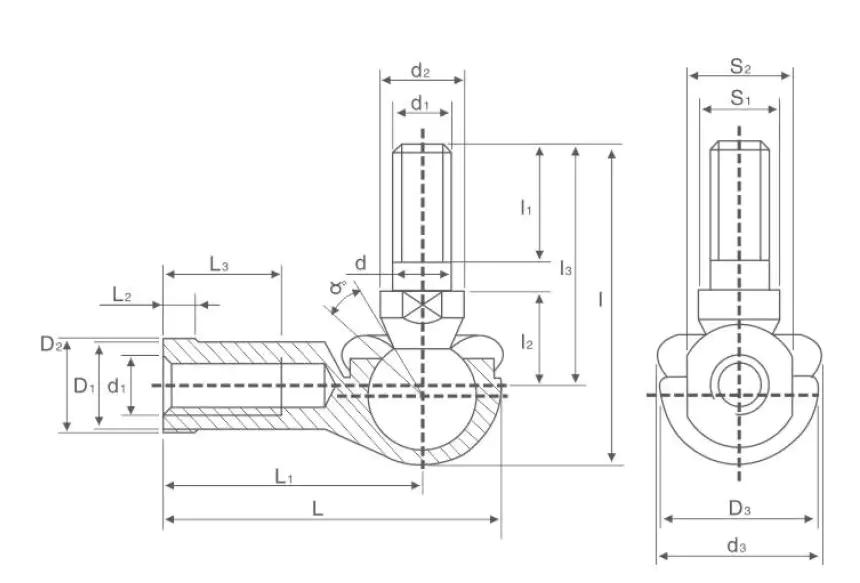

SQ RS rod end bearing specification drawing

🔭 Materials & Construction

Housing: zinc-base alloy. Ball: hardened steel. Seal: rubber NBR dust seal.

🔭

Zinc Alloy Housing

Lightweight, corrosion-resistant.

●

Hardened Steel Ball

Provides angular motion capability.

🔒

NBR Rubber Dust Seal

Excludes contamination.

🏭 Typical Applications

⚙

Cable End Connections

Male-thread ball joints for cable pull-rod ends in automotive, motorcycle, and marine cable systems.

📈

Brake and Clutch Linkages

External-thread connections on clutch fork push-rods and brake actuator links.

🔎

Agricultural Control Systems

Male-thread control rod ends for tractor implement depth and fold control mechanisms.

⚙

Industrial Control Rods

External-thread ball joint rod ends for valve and damper actuator push-pull rods.

🔭

Elevator Equipment

Control cable and governor rod connections in lift equipment.

📈

Consumer Products

Adjustable rod ends in furniture, display systems, and consumer product linkages.

rod end bearings selection guide overview

🔧 Installation & Maintenance

🔎 Thread Engagement

Minimum 1.0x nominal diameter. Thread-lock under vibration.

🔧 Jam Nut

Lock position after final adjustment.

📈 No Lubrication

No lubrication hole. Zinc alloy self-lubricating for normal oscillating conditions.

⚙ Seal Inspection

Check dust seal condition at maintenance intervals.

🌡 Temperature

-20 to +80 C for NBR seal.

✅ Replace on Wear

Not field-serviceable. Replace when play or stiffness develops.

❓ Frequently Asked Questions

▶ What is the difference between SQZ and SQ series?

SQZ series has internal (female) threads on the ball joint housing; SQ series has external (male) threads. Both use a zinc-base alloy ball joint housing with rubber dust seals and are suited for straight-joint linkage and control rod applications.

▶ Can the ball joint be used for continuous rotation?

No. SQZ and SQ ball joints are designed for oscillating and angular motion in control linkages and similar mechanisms. They are not suited for continuous rotation.

▶ What is the load rating unit in the specification table?

Load ratings are given in kN (kilonewtons). The single load rating represents the radial static load capacity of the ball joint. Contact GBC for combined load cases involving axial components.

▶ How do I order left-hand thread for SQZ/SQ series?

Add suffix L to the part number. For example, SQL 6RS indicates a left-hand thread SQZ6RS ball joint. The RS suffix indicates rubber-sealed construction.

▶ What material is the ball joint housing?

The ball joint housing is made of zinc-base alloy, providing corrosion resistance suitable for general industrial environments.

📞 Ready to Order?

MOQ is 100 units per model. Provide bore diameter, thread specification, load case, and operating environment. All catalogue data is for reference only.
