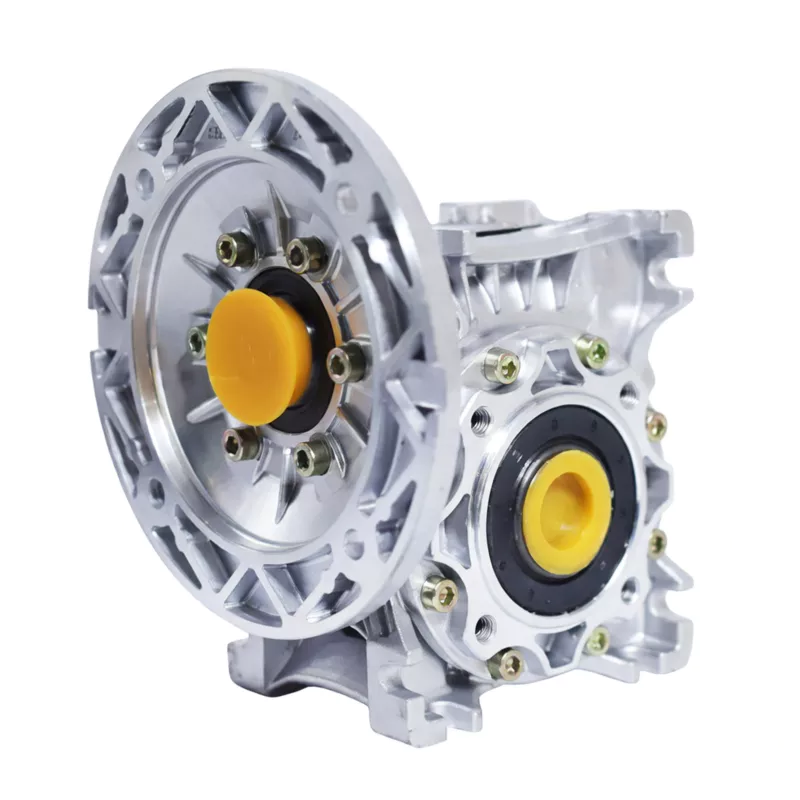

SSRV-050 Stainless Steel Worm Gearbox Reducer
The SSRV-050 stainless steel worm gear reducer features a 25 mm 304 SS output shaft in a precision-cast, electrolytically polished stainless housing. Gear ratios from 7.5:1 to 100:1 with 12-2 tin bronze worm gears and synthetic oil. Engineered for pharmaceutical GMP environments, dairy CIP washdown, and sanitary food production. Direct NMRV050 replacement. Fits IEC 63B–80B motor flanges.
SSRV-050 Stainless Steel Worm Gearbox Reducer — Versatile Pharmaceutical-Grade Performance
The SSRV-050 stainless steel worm gear reducer combines a versatile mid-compact frame with a robust 25 mm output shaft, delivering the precise speed control demanded by pharmaceutical manufacturing, dairy processing, and sanitary food production environments. Built from precision-cast 304 stainless steel and finished with electrolytic polishing, this SS worm gearbox achieves the surface smoothness required by GMP-regulated facilities where microbial contamination risks must be minimized. The SSRV-050 corrosion-resistant worm drive supports gear ratios from 7.5:1 to 100:1, paired with 12-2 tin bronze worm gears and fully synthetic lubricant for superior thermal stability and whisper-quiet operation. Compatible with IEC motor flanges ranging from 63B to 80B, the SSRV-050 handles a broader motor power range than its smaller SSRV-040 sibling, making it the preferred stainless steel speed reducer for mid-duty hygienic applications. Whether driving tablet coating pans, cream separators, or clean-in-place conveyor systems, this IP69K worm gearbox eliminates the paint flaking and rust contamination risks inherent in traditional cast iron reducers. Explore the full worm reducer gearbox category for additional drive configurations.
Technical Specifications — SSRV-050
| Parameter | Specification |
|---|---|
| Model | SSRV-050 |
| Housing Material | 304 Stainless Steel (Precision Cast) |
| Wheel Core Material | 304 Stainless Steel |
| Worm Gear Material | 12-2 Tin Bronze (CuSn12) |
| Surface Finish | Electrolytically Polished |
| Gear Ratio Range | 7.5:1 – 100:1 |
| Available Ratios | 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Output Shaft Diameter | 25 mm (304 Stainless Steel) |
| Output Shaft Length (B) | 50 mm |
| Overall Length (L) | 153 mm |
| Total Length with Input (L1) | 199 mm |
| Mounting Bolt | M10×27 |
| Compatible IEC Motor Flanges | 80B5, 80B14, 71B5, 71B14, 63B5, 63B14 |
| Lubricant | Fully Synthetic Worm Gear Oil |
| Output Flange KA | 90 mm |
| Output Flange KP × KQ | 125 × 110 mm |
| Torque Arm Length (K1) | 100 mm |
| Mounting Options | Foot, Flange, Torque Arm (Multi-Directional) |
| NMRV Equivalent | NMRV050 (Direct Dimensional Replacement) |
| Operating Temperature | -10°C to +80°C (Standard); Extended Range on Request |

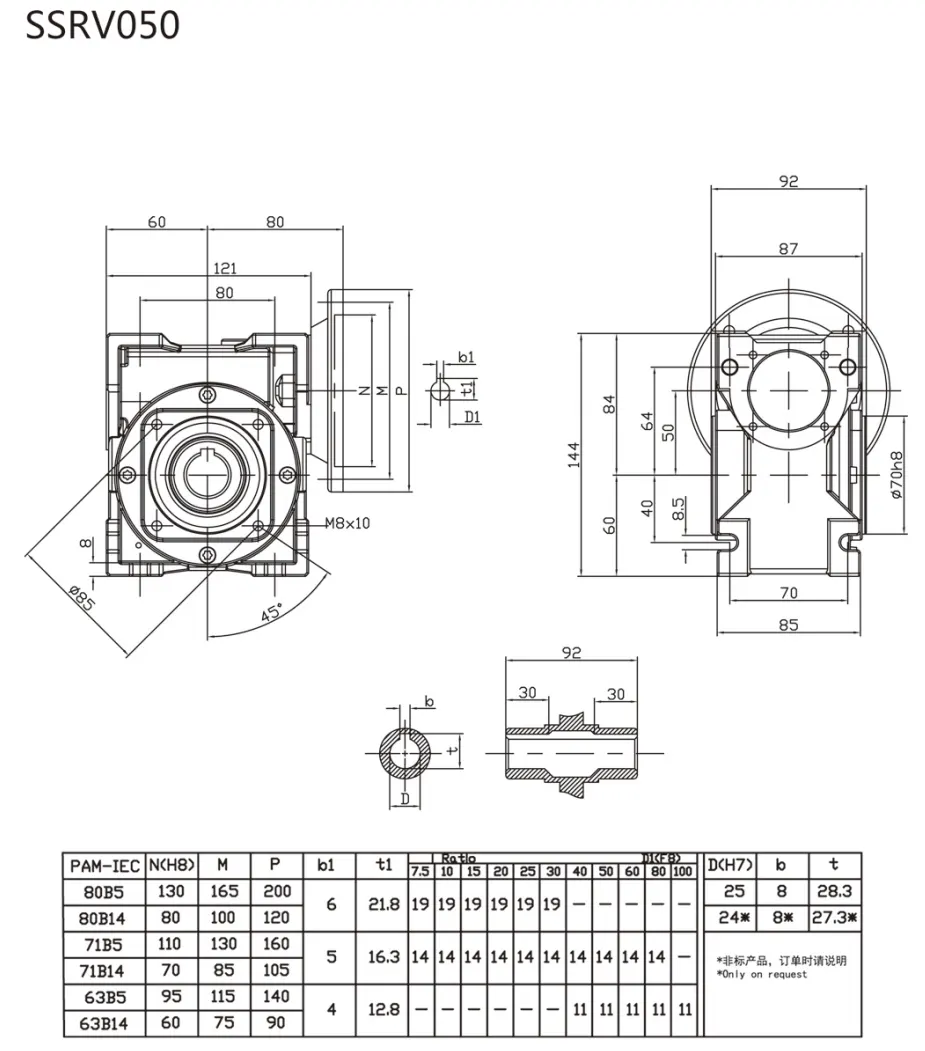

Technical Reference Drawings
The SSRV-050 shares standardized technical geometry with every other model in the SSRV series. The reference drawings below show the 304 stainless output shaft profiles, output flange mounting patterns, and torque arm assembly dimensions applicable to the entire series — use these alongside the SSRV-050-specific dimension drawing above for complete installation planning.
304 Stainless Output Shafts
Output shaft geometry and keyway profile reference for the SSRV-050. Shaft diameter: 25 mm.
Output Flange Dimensions
Standard output flange mounting pattern for the SSRV-050. KA: 90 mm, KP×KQ: 125×110 mm.
Torque Arm Assembly
304 stainless torque arm dimensions for shaft-mounted installation on the SSRV-050. K1 length: 100 mm.
Key Features & Benefits — SSRV-050
🛠 GMP-Ready Electrolytically Polished Surface
Achieves the low surface roughness demanded by pharmaceutical GMP environments — validating cleaning procedures becomes straightforward when the gearbox surface itself resists microbial colonization.
✅ Precision-Cast 304 Stainless Steel Housing
Provides whole-body corrosion resistance against dairy CIP chemicals including caustic soda and nitric acid — protecting the gearbox internals while eliminating paint contamination risks in hygienic production zones.
💪 25 mm Stainless Steel Output Shaft
Delivers robust torque transmission for cream separators, tablet coating pans, and mid-duty conveyor drives — a meaningful step up from the SSRV-040 for applications requiring greater shaft strength and load capacity.
⚙ 12-2 Tin Bronze Worm Gear with Synthetic Oil
The bronze-on-steel gear mesh combined with fully synthetic lubricant produces exceptionally quiet operation — critical in pharmaceutical clean rooms and dairy halls where noise levels affect worker comfort and communication.
🏆 Broad IEC Motor Compatibility (63B to 80B)
Accommodates a wide range of standard IEC motors, simplifying motor sourcing and enabling optimized power matching for diverse pharmaceutical, dairy, and food processing drive requirements.
🔄 Universal Multi-Position Mounting
Install as foot-mount, flange-mount, or torque-arm configuration — the versatile design adapts to existing plant equipment geometry without costly structural modifications or custom fabrication.
🔒 Extended Maintenance Intervals
Fully synthetic worm gear oil combined with the corrosion-free stainless housing drastically reduces scheduled maintenance — no repainting, no rust treatment, and longer intervals between oil changes compared to conventional mineral-oil-filled reducers.
🛡 Direct NMRV050 Replacement Dimensions
Matches standard NMRV050 mounting geometry — upgrading from a corroding cast iron or aluminum gearbox to full stainless steel protection requires zero mechanical redesign.
Industries & Applications for the SSRV-050
💊 Pharmaceutical Manufacturing
The SSRV-050 stainless steel worm gearbox is a preferred drive solution in GMP-regulated pharmaceutical production. Its 25 mm output shaft provides the torque needed for tablet coating pan drives, granulator feed screws, and blending vessel agitators while the polished 304 stainless surface passes rigorous validation cleaning protocols without trapping residues.
🍲 Dairy & Milk Processing
Dairy plants rely on the SSRV-050 food-grade worm reducer to drive cream separators, homogenizer feed pumps, and pasteurization line conveyors. The stainless construction withstands daily CIP cycles involving caustic soda and nitric acid solutions at elevated temperatures — conditions that destroy non-stainless gearboxes within a single production season.
🍴 Food & Beverage Processing
From bakery dough handling equipment to meat processing conveyors, the SSRV-050 corrosion-resistant gearbox eliminates contamination risks posed by deteriorating paint coatings. The mid-range torque capacity drives mixers, slicers, and transfer conveyors in facilities where HACCP compliance requires fully cleanable equipment surfaces.
📦 Packaging & Bottling Lines
High-speed bottling lines demand precise, reliable speed reduction. The SSRV-050 IP69K worm reducer drives capping heads, labeling rollers, and infeed conveyors with smooth, jerk-free motion. The 25 mm shaft handles higher loading than the SSRV-040, making it suitable for heavier bottles and higher throughput packaging machinery.
⚓ Marine & Offshore Environments
Coastal processing facilities and small marine installations benefit from the SSRV-050's resistance to salt spray corrosion. The stainless steel worm drive operates reliably in fish processing plants, harbor equipment, and desalination pre-treatment systems where humid, saline air attacks conventional gearboxes.
💧 Wastewater & Water Treatment
Water treatment chemicals and the humid atmosphere of pump houses corrode standard gearboxes aggressively. The SSRV-050 stainless steel speed reducer drives dosing pumps, sludge scraper mechanisms, and clarifier drives without the need for protective coatings or climate-controlled enclosures.
How to Choose the Right Stainless Steel Worm Gearbox
Selecting the optimal stainless steel worm gearbox for your application requires evaluating several critical parameters. This guide addresses the key factors engineers and procurement professionals should consider when specifying the SSRV-050 or any stainless worm reducer for corrosive-environment installations.
Torque Requirements
Calculate your required output torque based on the driven load, including safety factors for shock loading, starting torque, and duty cycle. The SSRV-050 with its 25 mm output shaft is engineered for applications matching the NMRV050 torque range. Always verify that your peak torque demand falls within the gearbox rating at your selected gear ratio.
Speed Ratio Selection
The SSRV-050 supports ratios from 7.5:1 to 100:1. Lower ratios (7.5:1 to 20:1) provide higher efficiency and are suited for conveyor drives and pump applications. Mid-range ratios (25:1 to 50:1) balance speed reduction and efficiency for most general processing equipment. High ratios (60:1 to 100:1) deliver maximum speed reduction for slow-speed mixers and positioning systems, though with slightly reduced efficiency inherent to all worm gear designs.
Material Grade: 304 vs 316L Stainless Steel
The SSRV series uses 304 stainless steel, which provides excellent corrosion resistance for the vast majority of applications including food processing, pharmaceutical manufacturing, freshwater environments, and mild chemical exposure. For installations with direct chloride contact (marine submersion, salt brine processing) or strong acid exposure, consult GBC engineering about 316L options. In most washdown and processing environments, 304 SS provides the optimal cost-to-performance balance.
Mounting Configuration
The SSRV-050 supports foot mounting, flange mounting, and torque arm mounting. Foot mounting suits conveyor drives and base-mounted equipment. Flange mounting is ideal for direct motor-to-gearbox-to-machine connections. Torque arm mounting (K1 = 100 mm) allows direct shaft-to-shaft coupling without a separate support base — commonly used on conveyor head shafts and agitator installations.
IP Protection Rating
Ensure your selected gearbox provides adequate ingress protection for the operating environment. The SSRV-050 is designed for washdown environments and offers protection suitable for high-pressure water jet cleaning. For IP69K certification requirements, consult GBC to confirm the specific seal and shaft configuration meets your protection standard.
Stainless Steel vs. Painted Cast Iron Worm Gearbox
| Comparison Factor | SSRV-050 (304 SS) | Painted Cast Iron |
|---|---|---|
| Corrosion Resistance | Inherent — solid stainless throughout | Coating-dependent — fails when paint chips |
| Washdown Durability | Unlimited high-pressure washdowns | Paint degrades with repeated washdowns |
| Hygienic Compliance | Meets HACCP, FDA, GMP surface standards | Paint flaking creates contamination risk |
| Service Life (Corrosive) | 10–20+ years | 6–24 months before coating failure |
| Lifecycle Cost | Lower — no repainting, no premature replacement | Higher — recurring paint, labor, downtime costs |
| Chemical Resistance | Resists acids, alkalis, solvents, salt | Paint dissolves in many chemical exposures |
| Environmental Suitability | Marine, chemical, food, pharma, outdoor | Dry indoor environments only |
| Upfront Cost | Higher initial investment | Lower initial cost |
Frequently Asked Questions — SSRV-050
Customer Reviews — SSRV-050
★★★★★
"The SSRV-050 drives our pharmaceutical tablet coating pans reliably. The polished surface passes our GMP audits every time. Outstanding corrosion resistance."
David Thompson — Engineering Lead | Australia
★★★★★
"We tested multiple brands for our dairy cream separator line. The SSRV-050 outperformed all competitors in washdown endurance over our 18-month trial."
Yuki Tanaka — Production Manager | Japan
★★★★★
"Very smooth operation at ratio 30:1. The bronze worm gear runs quietly. We have four units on our pasta extrusion line with zero downtime so far."
Luca Moretti — Maintenance Planner | Italy
★★★★☆
"Good value for a stainless unit. We needed IP65-rated reducers for our milk processing hall. The SSRV-050 met every requirement."
Sarah Mitchell — Procurement Specialist | United Kingdom
★★★★★
"Desert heat and humidity destroyed our previous gearboxes. The SSRV-050 handles 45°C ambient temperatures in our juice concentrate plant without issue."
Ahmed Al-Farsi — Chief Engineer | UAE
Related Products
Specify the SSRV-050 for Your Next Project
From pharmaceutical clean rooms to dairy processing halls, the SSRV-050 delivers the corrosion-resistant performance your facility demands. GBC offers complimentary engineering consultation, 3D CAD files, and worldwide delivery.
✅ Free Technical Support | 📄 CAD Files Available | 🌎 Global Shipping
