SSRV-075 Stainless Steel Worm Gearbox Reducer
The SSRV-075 stainless steel worm reducer delivers heavy-duty torque through a 28 mm 304 SS output shaft housed in precision-cast, electrolytically polished stainless steel. Gear ratios 7.5:1 to 100:1 with synthetic lubrication. Built for wastewater treatment, offshore platforms, and large-scale chemical plants. Direct NMRV075 replacement. Accommodates IEC 71B–100/112B motor flanges.
SSRV-075 Stainless Steel Worm Gearbox Reducer — Heavy-Duty Corrosion-Proof Power
The SSRV-075 stainless steel worm gear reducer is a heavy-duty power transmission unit built for large-scale operations where both high torque output and uncompromising corrosion resistance are non-negotiable. Featuring a 28 mm solid 304 stainless steel output shaft — the second largest in the SSRV family — this unit powers municipal wastewater sludge mixers, offshore platform conveyors, and industrial-scale chemical reactor feed systems with equal reliability. The precision-cast 304 stainless housing is electrolytically polished to a surface finish that prevents microbial growth and resists pitting from chlorinated water, sea spray, and acidic process vapors. Supporting gear ratios from 7.5:1 to 100:1 and compatible with IEC motor flanges up to 100/112B, the SSRV-075 corrosion-resistant worm drive accommodates motors in the 1.1 kW to 3 kW range, making it a direct stainless steel speed reducer replacement for standard NMRV075 cast iron units. The 12-2 tin bronze worm gear combined with fully synthetic lubricant ensures efficient, quiet operation even under continuous heavy loads. Review the full worm reducer gearbox category to evaluate alternative drive configurations for heavy-duty applications.
Technical Specifications — SSRV-075
| Parameter | Specification |
|---|---|
| Model | SSRV-075 |
| Housing Material | 304 Stainless Steel (Precision Cast) |
| Wheel Core Material | 304 Stainless Steel |
| Worm Gear Material | 12-2 Tin Bronze (CuSn12) |
| Surface Finish | Electrolytically Polished |
| Gear Ratio Range | 7.5:1 – 100:1 |
| Available Ratios | 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Output Shaft Diameter | 28 mm (304 Stainless Steel) |
| Output Shaft Length (B) | 60 mm |
| Overall Length (L) | 192 mm |
| Total Length with Input (L1) | 247 mm |
| Mounting Bolt | M10×27 |
| Compatible IEC Motor Flanges | 100/112B5, 100/112B14, 90B5, 90B14, 80B5, 80B14, 71B5 |
| Lubricant | Fully Synthetic Worm Gear Oil |
| Output Flange KA | 111 mm |
| Output Flange KP × KQ | 200 × 170 mm |
| Torque Arm Length (K1) | 200 mm |
| Mounting Options | Foot, Flange, Torque Arm (Multi-Directional) |
| NMRV Equivalent | NMRV075 (Direct Dimensional Replacement) |
| Operating Temperature | -10°C to +80°C (Standard); Extended Range on Request |

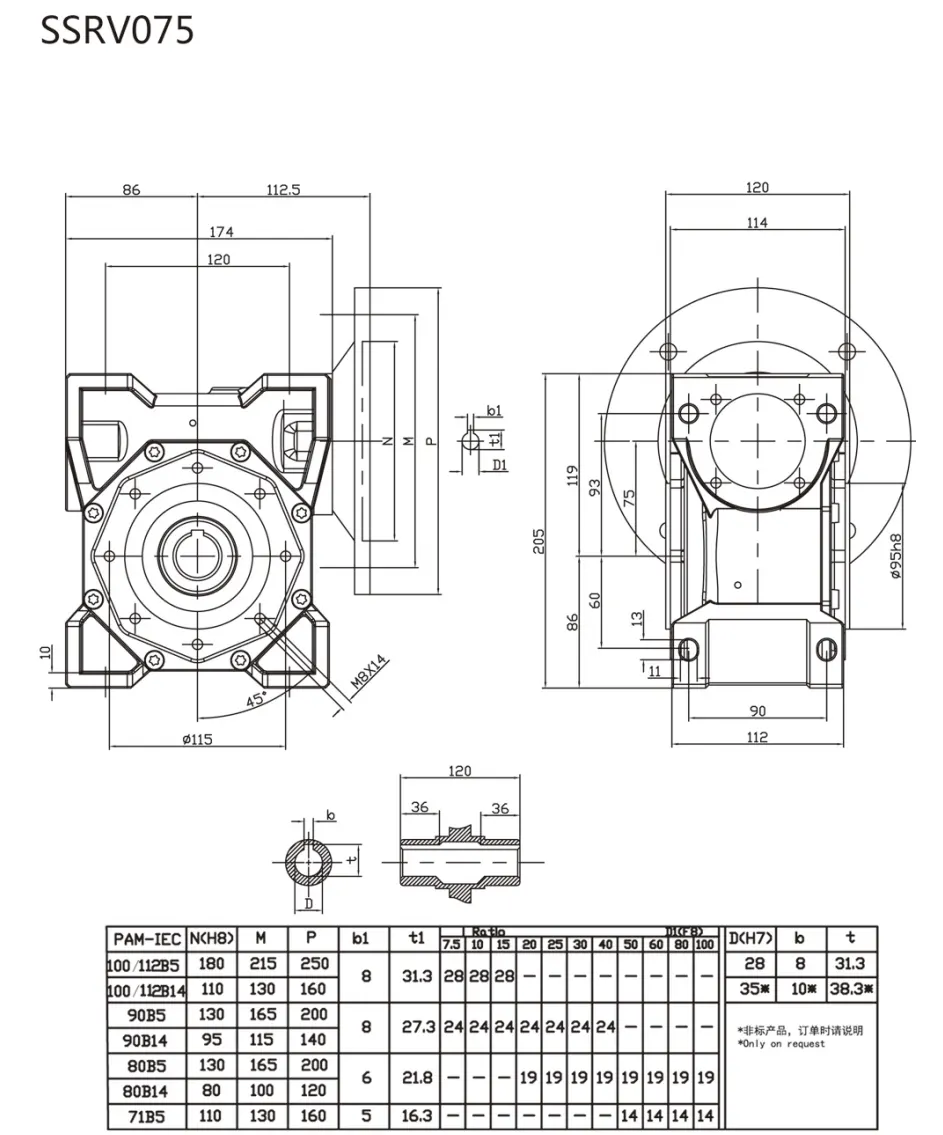

Technical Reference Drawings
The SSRV-075 shares standardized technical geometry with every other model in the SSRV series. The reference drawings below show the 304 stainless output shaft profiles, output flange mounting patterns, and torque arm assembly dimensions applicable to the entire series — use these alongside the SSRV-075-specific dimension drawing above for complete installation planning.
304 Stainless Output Shafts
Output shaft geometry and keyway profile reference for the SSRV-075. Shaft diameter: 28 mm.
Output Flange Dimensions
Standard output flange mounting pattern for the SSRV-075. KA: 111 mm, KP×KQ: 200×170 mm.
Torque Arm Assembly
304 stainless torque arm dimensions for shaft-mounted installation on the SSRV-075. K1 length: 200 mm.
Key Features & Benefits — SSRV-075
💪 Heavy-Duty 28 mm Stainless Output Shaft
The robust 28 mm output shaft handles the high-torque demands of sludge mixers, large screw conveyors, and offshore equipment — providing the mechanical strength needed for continuous heavy-load operation in corrosive environments.
⚓ Offshore-Proven Corrosion Performance
Years of deployment on offshore platforms and marine installations demonstrate the SSRV-075's ability to maintain structural integrity and surface quality under relentless salt spray, wind-driven rain, and marine atmosphere exposure.
🛠 Electrolytically Polished Hygiene Surface
The mirror-finish polish meets the surface requirements of large-scale food production, pharmaceutical manufacturing, and water treatment — where equipment cleanliness directly impacts regulatory compliance and product quality.
✅ Solid 304 Stainless Steel Construction
Every structural component is manufactured from 304 stainless steel — the housing, wheel core, output shaft, and flange are all corrosion-resistant, eliminating weak points where dissimilar metal galvanic corrosion could initiate.
⚙ High-Efficiency Bronze Worm Gear System
The 12-2 tin bronze worm gear paired with fully synthetic lubricant delivers efficient torque transfer with minimal heat generation — critical for sustained heavy-duty operation where thermal management affects gearbox longevity.
🔄 200 mm Torque Arm for Direct Shaft Mounting
The heavy-duty torque arm allows the SSRV-075 to mount directly on conveyor head shafts, agitator shafts, and drum drives — eliminating separate mounting bases and simplifying heavy equipment installations.
🏆 Wide Motor Range: Up to 100/112B Flange
Accommodates motors from 71B through 100/112B frames — supporting motor power from fractional kilowatt to multi-kilowatt drives for the full range of heavy-duty industrial applications.
🛡 NMRV075 Dimensional Interchangeability
Drop-in replacement for standard NMRV075 reducers — upgrade from corroding cast iron to full stainless construction without mechanical redesign, baseplate changes, or coupling modifications.
Industries & Applications for the SSRV-075
💧 Wastewater & Water Treatment
The SSRV-075 is the primary choice for heavy-duty wastewater treatment applications. Its 28 mm stainless output shaft powers sludge mixers, screw conveyors, and dewatering press drives under continuous high-torque loading. Municipal and industrial water treatment plants rely on this unit because it survives decades of exposure to hydrogen sulfide, chlorinated effluent, and corrosive biogas environments without housing failure.
⚓ Marine & Offshore Environments
Offshore oil platforms, LNG terminals, and large marine vessels demand gearboxes that withstand unrelenting salt spray exposure and vibration. The SSRV-075 corrosion-resistant worm drive delivers the heavy torque needed for platform conveyor systems, winch auxiliary drives, and ballast water treatment equipment without the corrosion-driven maintenance cycles that plague standard steel gearboxes.
⚠️ Chemical & Petrochemical Plants
Large-scale chemical reactors and petrochemical blending systems generate significant torque demands alongside aggressive chemical vapor exposure. The SSRV-075 stainless steel worm gear reducer powers agitator shafts, large pump coupling drives, and scrubber mechanisms in environments saturated with sulfur compounds, chlorine gas, and volatile organic solvents.
🍴 Food & Beverage Processing
Large food processing plants processing bulk commodities — grain handling, sugar refining, rendering operations — require heavy-duty drives that meet food safety standards. The SSRV-075 food-grade worm reducer combines the torque capacity for heavy conveyor belts and large mixer drives with the hygienic surface finish needed for regulatory compliance.
💊 Pharmaceutical Manufacturing
Large-batch pharmaceutical production with multi-ton blenders and reactor vessels demands heavy-duty stainless drives. The SSRV-075 IP69K worm gearbox meets this need while maintaining the surface hygiene standards required by FDA 21 CFR Part 211 regulations for equipment used in drug manufacturing environments.
🚗 Car Wash & Vehicle Cleaning Systems
Heavy-duty commercial vehicle wash facilities processing trucks, buses, and mining equipment require larger drives than passenger car wash systems. The SSRV-075 provides the torque needed for oversized brush assemblies and heavy-duty conveyor chains while resisting the constant water, detergent, and acid presoak chemical exposure.
How to Choose the Right Stainless Steel Worm Gearbox
Selecting the optimal stainless steel worm gearbox for your application requires evaluating several critical parameters. This guide addresses the key factors engineers and procurement professionals should consider when specifying the SSRV-075 or any stainless worm reducer for corrosive-environment installations.
Torque Requirements
Calculate your required output torque based on the driven load, including safety factors for shock loading, starting torque, and duty cycle. The SSRV-075 with its 28 mm output shaft is engineered for applications matching the NMRV075 torque range. Always verify that your peak torque demand falls within the gearbox rating at your selected gear ratio.
Speed Ratio Selection
The SSRV-075 supports ratios from 7.5:1 to 100:1. Lower ratios (7.5:1 to 20:1) provide higher efficiency and are suited for conveyor drives and pump applications. Mid-range ratios (25:1 to 50:1) balance speed reduction and efficiency for most general processing equipment. High ratios (60:1 to 100:1) deliver maximum speed reduction for slow-speed mixers and positioning systems, though with slightly reduced efficiency inherent to all worm gear designs.
Material Grade: 304 vs 316L Stainless Steel
The SSRV series uses 304 stainless steel, which provides excellent corrosion resistance for the vast majority of applications including food processing, pharmaceutical manufacturing, freshwater environments, and mild chemical exposure. For installations with direct chloride contact (marine submersion, salt brine processing) or strong acid exposure, consult GBC engineering about 316L options. In most washdown and processing environments, 304 SS provides the optimal cost-to-performance balance.
Mounting Configuration
The SSRV-075 supports foot mounting, flange mounting, and torque arm mounting. Foot mounting suits conveyor drives and base-mounted equipment. Flange mounting is ideal for direct motor-to-gearbox-to-machine connections. Torque arm mounting (K1 = 200 mm) allows direct shaft-to-shaft coupling without a separate support base — commonly used on conveyor head shafts and agitator installations.
IP Protection Rating
Ensure your selected gearbox provides adequate ingress protection for the operating environment. The SSRV-075 is designed for washdown environments and offers protection suitable for high-pressure water jet cleaning. For IP69K certification requirements, consult GBC to confirm the specific seal and shaft configuration meets your protection standard.
Stainless Steel vs. Painted Cast Iron Worm Gearbox
| Comparison Factor | SSRV-075 (304 SS) | Painted Cast Iron |
|---|---|---|
| Corrosion Resistance | Inherent — solid stainless throughout | Coating-dependent — fails when paint chips |
| Washdown Durability | Unlimited high-pressure washdowns | Paint degrades with repeated washdowns |
| Hygienic Compliance | Meets HACCP, FDA, GMP surface standards | Paint flaking creates contamination risk |
| Service Life (Corrosive) | 10–20+ years | 6–24 months before coating failure |
| Lifecycle Cost | Lower — no repainting, no premature replacement | Higher — recurring paint, labor, downtime costs |
| Chemical Resistance | Resists acids, alkalis, solvents, salt | Paint dissolves in many chemical exposures |
| Environmental Suitability | Marine, chemical, food, pharma, outdoor | Dry indoor environments only |
| Upfront Cost | Higher initial investment | Lower initial cost |
Frequently Asked Questions — SSRV-075
Customer Reviews — SSRV-075
★★★★★
"The SSRV-075 powers our municipal wastewater sludge mixers. Heavy-duty performance in a corrosive environment. No bearing failures in over two years of continuous operation."
Mark Collins — Operations Manager | Australia
★★★★★
"We specified the SSRV-075 for our LNG terminal conveyor drives. The large 28mm output shaft handles our high-torque requirements. Superb quality."
Kim Seung-ho — Chief Mechanical Engineer | South Korea
★★★★★
"Retrofitted twelve SSRV-075 gearboxes into our water treatment facility. The multi-directional mounting saved us significant re-engineering costs."
Anna Kowalski — Project Engineer | Poland
★★★★☆
"Solid construction. We run these on our ethanol plant mixer drives. The stainless housing resists the acidic atmosphere better than anything we have tried."
Roberto Santos — Maintenance Director | Brazil
★★★★★
"Exceptional performance on our North Sea platform. Salt spray, wind, and rain have no effect on the SSRV-075. Maintenance intervals extended by 300%."
John MacGregor — Offshore Platform Manager | United Kingdom
Related Products
Power Your Heavy-Duty Application with the SSRV-075
When maximum corrosion resistance meets heavy-duty torque requirements, the SSRV-075 delivers. GBC engineering is available for load calculations, CAD file delivery, and custom configuration review — at no cost.
