SSRV-090 Stainless Steel Worm Gearbox Reducer

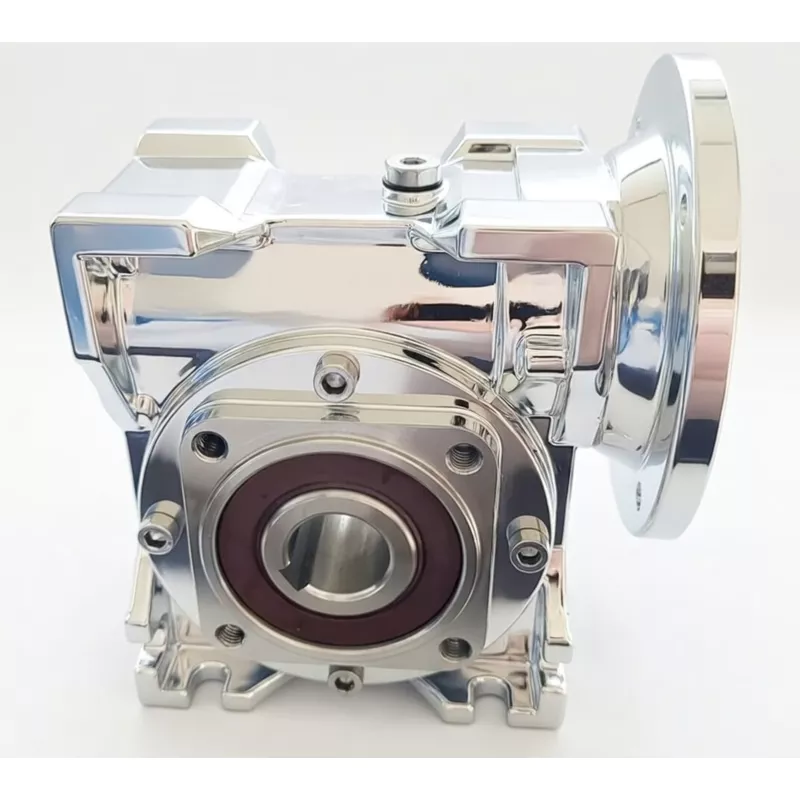

The SSRV-090 stainless steel worm gearbox is the largest, highest-torque unit in the SSRV series — featuring a 35 mm 304 SS output shaft and electrolytically polished precision-cast housing. Ratios 7.5:1 to 100:1. Designed for petrochemical reactor drives, mining washdown conveyors, and heavy marine installations. NMRV090 drop-in replacement. IEC 80B–100/112B motor flanges.
SSRV-090 Stainless Steel Worm Gearbox Reducer — Maximum Torque for Extreme Industrial Demands
The SSRV-090 is the flagship unit of the GBC SSRV stainless steel worm gearbox series, delivering the highest torque capacity and the largest frame size for the most punishing industrial applications. Built around a massive 35 mm solid 304 stainless steel output shaft and housed in a precision-cast, electrolytically polished stainless enclosure, this SS worm gearbox thrives where petrochemical vapors, mining slurries, and aggressive marine conditions render conventional gearboxes useless within weeks. The SSRV-090 corrosion-resistant worm drive provides a full gear ratio span from 7.5:1 to 100:1, paired with 12-2 tin bronze worm gears and fully synthetic worm gear oil for sustained high-load performance with minimal heat generation. Accommodating IEC motor flanges from 80B through 100/112B, this stainless steel speed reducer replaces standard NMRV090 units on a one-for-one dimensional basis — no bracket modifications or baseplate redesigns required. Chemical plant engineers and heavy-industry maintenance teams choose the SSRV-090 IP69K worm gearbox to eliminate the recurring costs of recoating, rust remediation, and premature gearbox replacement that plague painted cast iron drives in demanding environments. Browse the complete worm reducer gearbox range to compare all SSRV sizes and related corrosion-resistant drive options.
Technical Specifications — SSRV-090
| Parameter | Specification |
|---|---|
| Model | SSRV-090 |
| Housing Material | 304 Stainless Steel (Precision Cast) |
| Wheel Core Material | 304 Stainless Steel |
| Worm Gear Material | 12-2 Tin Bronze (CuSn12) |
| Surface Finish | Electrolytically Polished |
| Gear Ratio Range | 7.5:1 – 100:1 |
| Available Ratios | 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Output Shaft Diameter | 35 mm (304 Stainless Steel) |
| Output Shaft Length (B) | 80 mm |
| Overall Length (L) | 234 mm |
| Total Length with Input (L1) | 309 mm |
| Mounting Bolt | M12×34 |
| Compatible IEC Motor Flanges | 100/112B5, 100/112B14, 90B5, 90B14, 80B5, 80B14 |
| Lubricant | Fully Synthetic Worm Gear Oil |
| Output Flange KA | 111 mm |
| Output Flange KP × KQ | 210 × 200 mm |
| Torque Arm Length (K1) | 200 mm |
| Mounting Options | Foot, Flange, Torque Arm (Multi-Directional) |
| NMRV Equivalent | NMRV090 (Direct Dimensional Replacement) |
| Operating Temperature | -10°C to +80°C (Standard); Extended Range on Request |

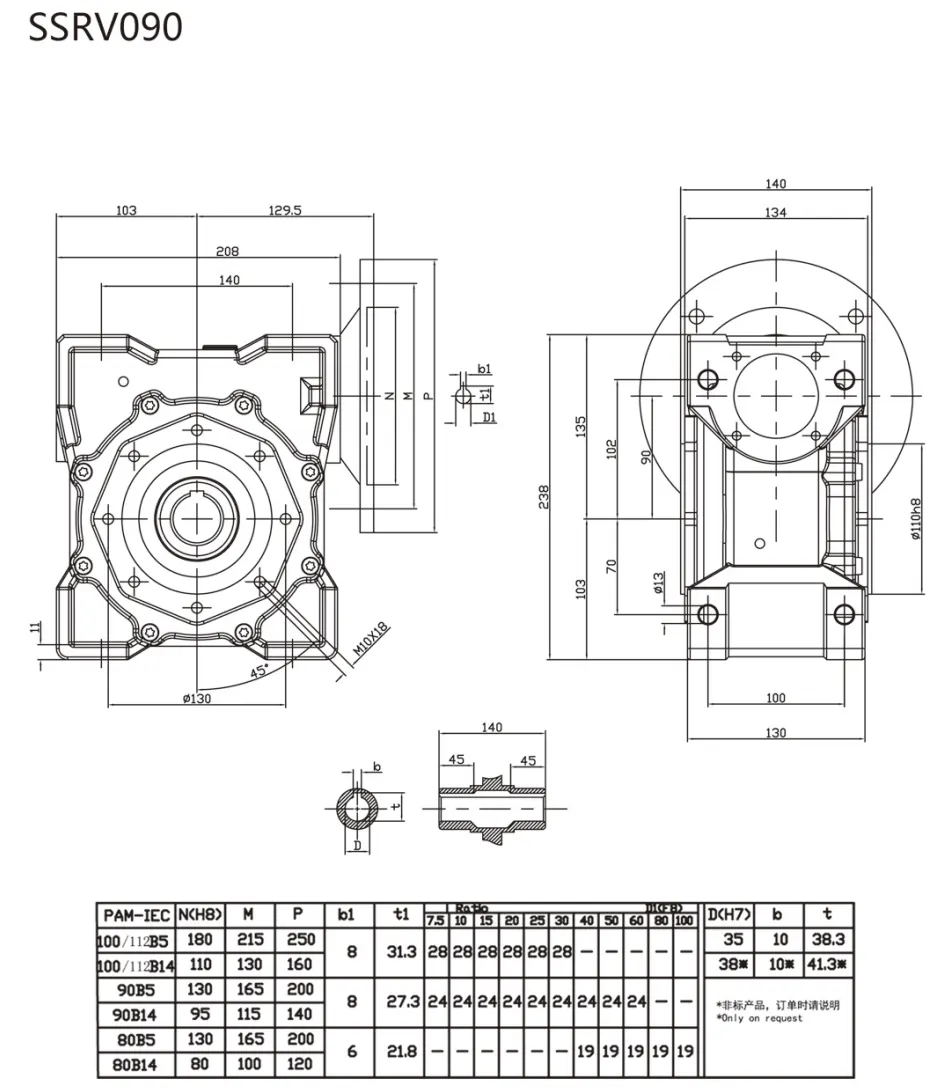

Technical Reference Drawings
The SSRV-090 shares standardized technical geometry with every other model in the SSRV series. The reference drawings below show the 304 stainless output shaft profiles, output flange mounting patterns, and torque arm assembly dimensions applicable to the entire series — use these alongside the SSRV-090-specific dimension drawing above for complete installation planning.

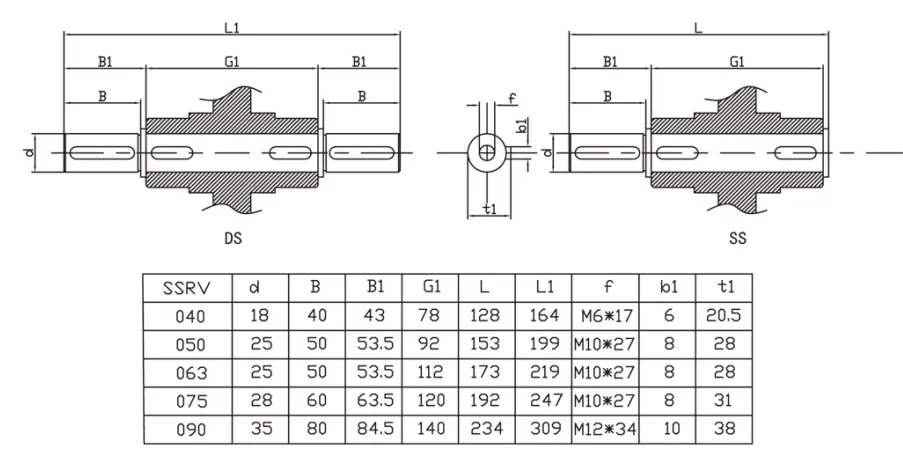

304 Stainless Output Shafts
Output shaft geometry and keyway profile reference for the SSRV-090. Shaft diameter: 35 mm.

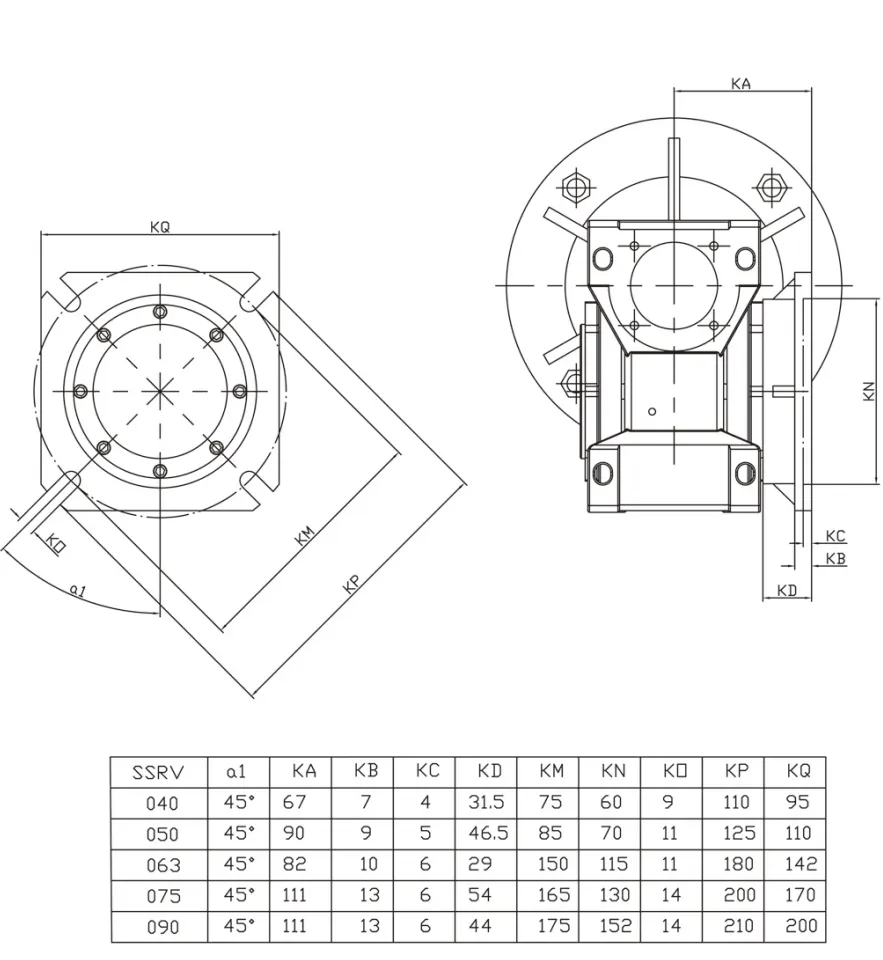

Output Flange Dimensions
Standard output flange mounting pattern for the SSRV-090. KA: 111 mm, KP×KQ: 210×200 mm.

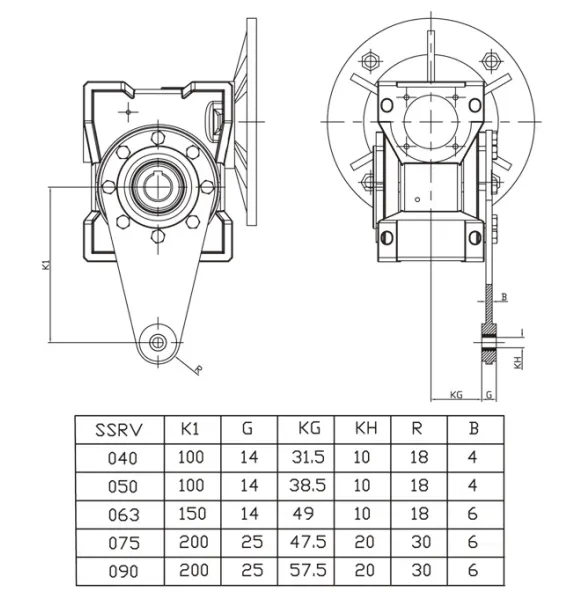

Torque Arm Assembly
304 stainless torque arm dimensions for shaft-mounted installation on the SSRV-090. K1 length: 200 mm.
Key Features & Benefits — SSRV-090
💪 Maximum 35 mm Stainless Output Shaft
The largest output shaft in the SSRV series handles the highest torque loads — powering petrochemical reactor agitators, mining conveyor head drives, and heavy industrial mixers that demand uncompromising mechanical strength and corrosion immunity.
⚠️ Petrochemical-Grade Chemical Resistance
The 304 stainless steel housing withstands continuous exposure to sulfuric acid vapor, hydrochloric acid mist, organic solvents, and other aggressive chemicals that rapidly destroy painted or coated gearbox housings in petrochemical plants.
🛠 Electrolytically Polished for Extreme Environments
The polished surface provides the ultimate corrosion defense by eliminating surface imperfections where aggressive chemicals and marine salts initiate pitting and crevice corrosion — extending housing service life by an order of magnitude.
✅ Full 304 Stainless Steel Construction
Housing, wheel core, output shaft, flange, and torque arm are all 304 stainless steel — providing monolithic corrosion resistance with no dissimilar-metal joints, no coatings to fail, and no hidden carbon steel components.
⚙ Heavy-Duty Bronze Worm Gear with Synthetic Lubricant
The oversized 12-2 tin bronze worm gear combined with fully synthetic worm gear oil sustains high-load operation with low friction, minimal heat generation, and extended service life — essential for 24/7 petrochemical and mining operations.
🔄 Multi-Configuration Mounting System
Foot, flange, and 200 mm torque arm mounting options support diverse installation geometries found in petrochemical plants, mining washdown stations, and large marine installations without custom fabrication.
🏆 Motor Compatibility: 80B to 100/112B
Pairs with industrial motors across a wide power range, enabling optimal drive matching for heavy-duty applications from bulk material conveying to large-vessel agitation and heavy pump drives.
🛡 Direct NMRV090 Replacement
Shares identical mounting dimensions with the standard NMRV090 — replace failing cast iron or aluminum gearboxes with permanent stainless corrosion resistance in a single mechanical swap with zero re-engineering.
Industries & Applications for the SSRV-090
⚠️ Petrochemical & Heavy Chemical Plants
The SSRV-090 delivers the ultimate combination of maximum torque and chemical resistance for the most demanding petrochemical installations. Its 35 mm output shaft drives large reactor agitators, heavy scrubber mechanisms, and bulk transfer conveyor systems exposed to sulfuric acid vapor, hydrogen chloride, and aromatic hydrocarbons. Where coated cast iron gearboxes require replacement every 12 to 18 months, the SSRV-090 stainless steel worm gearbox maintains structural integrity for years.
⚓ Marine & Offshore Environments
Major offshore platforms and large marine vessels require the maximum torque capacity the SSRV series offers. The SSRV-090 powers mooring winch auxiliary drives, heavy cargo conveyor systems, and ballast treatment equipment on vessels and platforms where salt corrosion destroys lesser gearboxes. The 304 stainless construction withstands continuous saltwater submersion and splash zone exposure.
💧 Wastewater & Water Treatment
The largest municipal and industrial wastewater plants process massive volumes requiring heavy-duty drive equipment. The SSRV-090 corrosion-resistant worm drive powers primary clarifier rake mechanisms, large screw presses, and heavy-duty belt filter drives operating 24/7 in atmospheres saturated with moisture and hydrogen sulfide gas.
⚒️ Mining & Mineral Processing
Mining operations expose gearboxes to acidic slurries, abrasive dust, and high-pressure washdown cleaning. The SSRV-090 stainless steel speed reducer powers conveyor head drives, washdown drum rotators, and flotation cell agitators in copper, gold, and lithium processing facilities where the acidic environment corrodes standard steel within weeks.
🍴 Large-Scale Food Production
Industrial-scale food manufacturing — edible oil refining, sugar processing, rendering plants — generates enormous torque demands alongside strict hygiene requirements. The SSRV-090 IP69K worm gearbox handles the heaviest food processing drives while maintaining the polished stainless surface needed for audit compliance and washdown durability.
💊 Pharmaceutical Bulk Production
Large-volume pharmaceutical production facilities processing multi-ton API batches require heavy-duty agitator and conveyor drives that meet cGMP surface standards. The SSRV-090 combines the highest torque in the SSRV range with a hygienically polished surface, supporting large reactor drives and bulk powder handling systems in validated production areas.
How to Choose the Right Stainless Steel Worm Gearbox
Selecting the optimal stainless steel worm gearbox for your application requires evaluating several critical parameters. This guide addresses the key factors engineers and procurement professionals should consider when specifying the SSRV-090 or any stainless worm reducer for corrosive-environment installations.
Torque Requirements
Calculate your required output torque based on the driven load, including safety factors for shock loading, starting torque, and duty cycle. The SSRV-090 with its 35 mm output shaft is engineered for applications matching the NMRV090 torque range. Always verify that your peak torque demand falls within the gearbox rating at your selected gear ratio.
Speed Ratio Selection
The SSRV-090 supports ratios from 7.5:1 to 100:1. Lower ratios (7.5:1 to 20:1) provide higher efficiency and are suited for conveyor drives and pump applications. Mid-range ratios (25:1 to 50:1) balance speed reduction and efficiency for most general processing equipment. High ratios (60:1 to 100:1) deliver maximum speed reduction for slow-speed mixers and positioning systems, though with slightly reduced efficiency inherent to all worm gear designs.
Material Grade: 304 vs 316L Stainless Steel
The SSRV series uses 304 stainless steel, which provides excellent corrosion resistance for the vast majority of applications including food processing, pharmaceutical manufacturing, freshwater environments, and mild chemical exposure. For installations with direct chloride contact (marine submersion, salt brine processing) or strong acid exposure, consult GBC engineering about 316L options. In most washdown and processing environments, 304 SS provides the optimal cost-to-performance balance.
Mounting Configuration
The SSRV-090 supports foot mounting, flange mounting, and torque arm mounting. Foot mounting suits conveyor drives and base-mounted equipment. Flange mounting is ideal for direct motor-to-gearbox-to-machine connections. Torque arm mounting (K1 = 200 mm) allows direct shaft-to-shaft coupling without a separate support base — commonly used on conveyor head shafts and agitator installations.
IP Protection Rating
Ensure your selected gearbox provides adequate ingress protection for the operating environment. The SSRV-090 is designed for washdown environments and offers protection suitable for high-pressure water jet cleaning. For IP69K certification requirements, consult GBC to confirm the specific seal and shaft configuration meets your protection standard.
Stainless Steel vs. Painted Cast Iron Worm Gearbox
| Comparison Factor | SSRV-090 (304 SS) | Painted Cast Iron |
|---|---|---|
| Corrosion Resistance | Inherent — solid stainless throughout | Coating-dependent — fails when paint chips |
| Washdown Durability | Unlimited high-pressure washdowns | Paint degrades with repeated washdowns |
| Hygienic Compliance | Meets HACCP, FDA, GMP surface standards | Paint flaking creates contamination risk |
| Service Life (Corrosive) | 10–20+ years | 6–24 months before coating failure |
| Lifecycle Cost | Lower — no repainting, no premature replacement | Higher — recurring paint, labor, downtime costs |
| Chemical Resistance | Resists acids, alkalis, solvents, salt | Paint dissolves in many chemical exposures |
| Environmental Suitability | Marine, chemical, food, pharma, outdoor | Dry indoor environments only |
| Upfront Cost | Higher initial investment | Lower initial cost |
Frequently Asked Questions — SSRV-090
Customer Reviews — SSRV-090
★★★★★
"The SSRV-090 is the backbone of our heavy-duty mining washdown conveyors. The 35mm shaft handles enormous loads. Stainless construction eliminated our rust-related failures entirely."
Steve Murray — Principal Engineer | Australia
★★★★★
"We installed SSRV-090 units in our petrochemical reactor feed systems. The corrosion resistance in sulfuric acid vapor conditions is extraordinary. No replacements needed in three years."
Heinrich Weber — Plant Director | Germany
★★★★★
"Maximum torque output in the series and the finish quality is excellent. Our food-grade edible oil processing line runs flawlessly with these reducers."
Tomoko Ishikawa — Technical Advisor | Japan
★★★★☆
"Heavy, robust, and perfectly suited for our shipboard winch drive application. The electrolytic polish resists salt corrosion far better than any coating."
Niels Andersen — Marine Systems Engineer | Denmark
★★★★★
"We use the SSRV-090 in our copper mine slurry pump drives. Acidic conditions that destroyed conventional gearboxes in weeks have zero effect on this unit after 18 months."
Pablo Gutierrez — Engineering Manager | Chile
Related Products
Deploy the SSRV-090 — Maximum Performance, Zero Corrosion
The SSRV-090 is the definitive stainless steel worm gearbox for petrochemical plants, mining operations, and heavy marine installations. GBC offers dedicated project engineering, complete CAD documentation, and worldwide logistics support for every order.
