SSUCFL-EHB-ESB All Stainless Steel 2-Bolt Flange Bearing Units
On SSUCFL-EHB-ESB-SERIES, the mechanical form is 2-bolt flange bearing units, the construction is all-stainless housed construction, and the shaft connection is setscrew locking. The machine-side comparison should cover two-hole spacing, flange length and shaft centre position.
Give the support a position name in the maintenance system and record the complete model, shaft size, mounting style and any important configuration note. A photo that includes the surrounding equipment is helpful because it ties the bearing record to a recognizable location rather than to a loose spare on a workbench.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
SSUCFL205ESB
Mounting
2-bolt flange, EHB/ESB styles
Locking
Setscrew
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Maintenance Traceability
Traceability-focused buying notes
On SSUCFL-EHB-ESB-SERIES, the mechanical form is 2-bolt flange bearing units, the construction is all-stainless housed construction, and the shaft connection is setscrew locking. The machine-side comparison should cover two-hole spacing, flange length and shaft centre position.
This product family is commonly reviewed for food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Maintenance Traceability
Bearing identification is most useful when it stays attached to a specific machine position. A part number stored without location context can still create confusion in plants that use several similar housings.
Give the support a position name in the maintenance system and record the complete model, shaft size, mounting style and any important configuration note. A photo that includes the surrounding equipment is helpful because it ties the bearing record to a recognizable location rather than to a loose spare on a workbench.
After a replacement has been proven, update the equipment history with the confirmed code. If the installed unit differs from the original record, explain the change briefly instead of overwriting the old information without context. That history makes future cross-reference work faster and prevents repeated uncertainty.
Traceability also improves purchasing quality. Buyers can separate requirements from different machine positions even when they use related series names, and suppliers can ask focused questions about the exact installation rather than treating every enquiry as a generic bearing request.

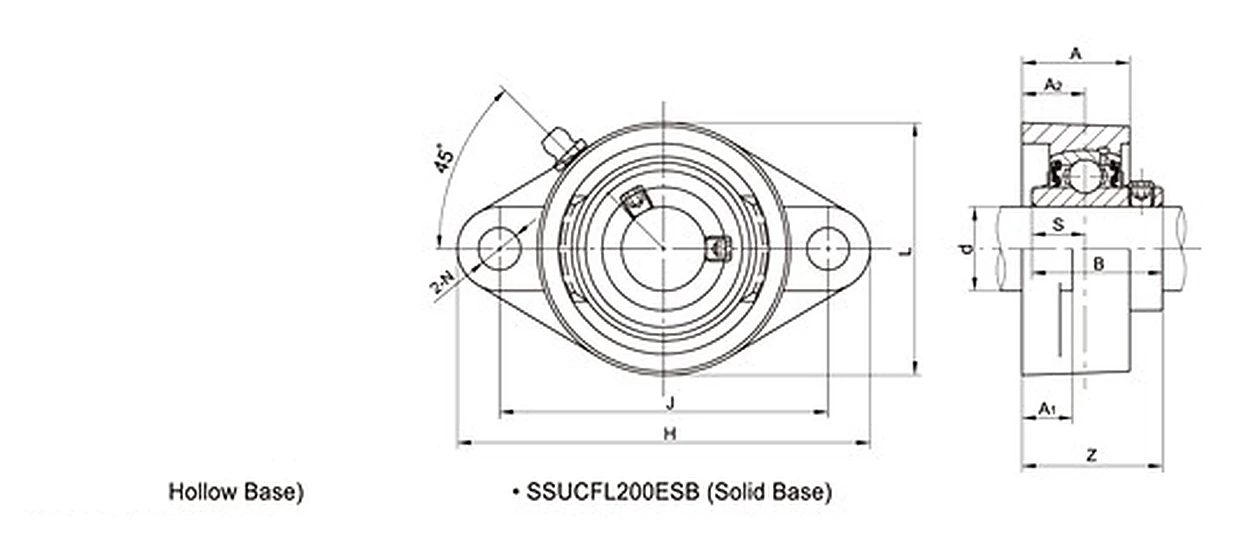

Record this drawing with the asset
Use the drawing to compare two-hole spacing, flange length and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUCFL205ESB |
| Mounting form | 2-bolt flange, EHB/ESB styles |
| Locking | Setscrew |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |
| Load / Housing Strength Reference | |
| Recommended set-screw torque for SUC204-206 | 3.9 N.m |
Applications
Food & Beverage
SSUCFL205ESB can be considered for food & beverage where its 2-bolt flange, ehb/esb styles geometry matches the machine. Two-hole spacing and flange thickness should be checked before replacing an older support.
Pharmaceutical Equipment
For pharmaceutical equipment, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUCFL205ESB only where the actual moisture, contamination and cleaning conditions match the selected product family.
