SSUEFL-EHB-ESB All Stainless Steel 2-Bolt Flange Bearing Units
The requested SSUEFL-EHB-ESB-SERIES configuration combines all-stainless housed construction with concentric locking collar in a 2-bolt flange bearing units format. The decisive fit dimensions are two-hole spacing, flange length and shaft centre position.
Inspect the frame while the old unit is still installed. Look for shims, cracked welds, elongated holes and signs that the housing has not been sitting evenly. If the equipment has been rebuilt locally, measure the current interface instead of assuming the original drawing remains accurate.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
SSUEFL205ESB
Mounting
2-bolt flange, EHB/ESB styles
Locking
Concentric collar
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Condition of the Machine Frame
Frame-condition buying notes
The requested SSUEFL-EHB-ESB-SERIES configuration combines all-stainless housed construction with concentric locking collar in a 2-bolt flange bearing units format. The decisive fit dimensions are two-hole spacing, flange length and shaft centre position.
The surrounding use case is typically food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports, but the final choice still depends on the actual machine position and service conditions.
Condition of the Machine Frame
A mounted bearing depends on the surface that supports it. Warped plates, repaired holes, weld distortion or uneven bases can create fit problems that a new housing cannot correct.
Inspect the frame while the old unit is still installed. Look for shims, cracked welds, elongated holes and signs that the housing has not been sitting evenly. If the equipment has been rebuilt locally, measure the current interface instead of assuming the original drawing remains accurate.
During fit-up, the replacement should contact the mounting face naturally. Tightening bolts to force a twisted housing flat can load the support in ways that are unrelated to the product itself. Correct the machine interface first where necessary, then position the bearing with the shaft line as the reference.
Record frame repairs in the maintenance history because they explain why a future replacement may not match older documentation. This is especially valuable on long-service equipment that has passed through several rebuilds.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUEFL205ESB |
| Mounting form | 2-bolt flange, EHB/ESB styles |
| Locking | Concentric collar |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |

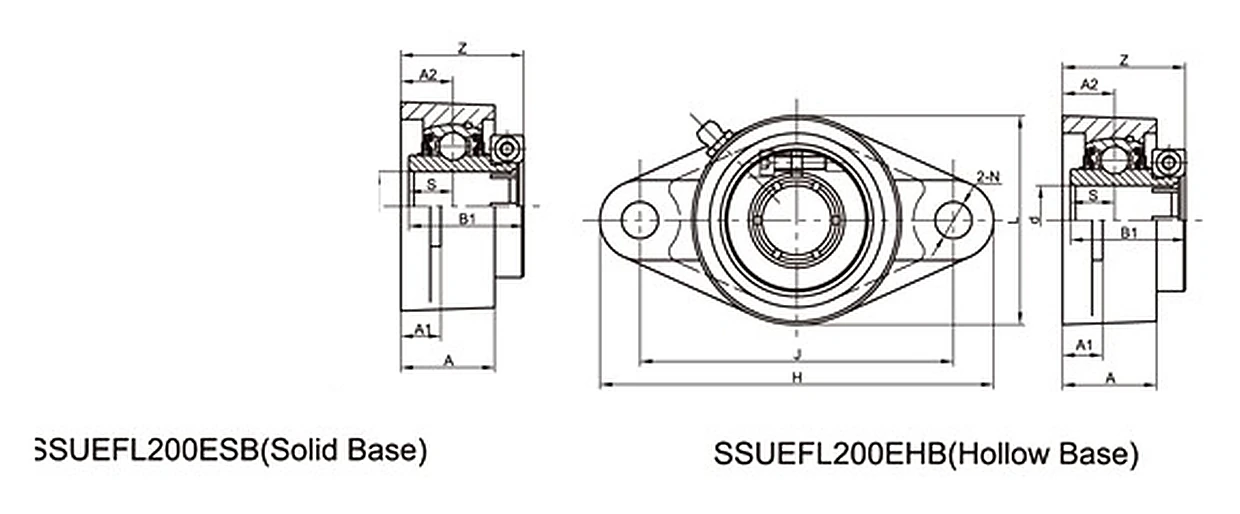

Frame repair dimension check
Use the drawing to compare two-hole spacing, flange length and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food & Beverage
SSUEFL205ESB can be considered for food & beverage where its 2-bolt flange, ehb/esb styles geometry matches the machine. Two-hole spacing and flange thickness should be checked before replacing an older support.
Pharmaceutical Equipment
For pharmaceutical equipment, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUEFL205ESB only where the actual moisture, contamination and cleaning conditions match the selected product family.
