SSUEF-EHB-ESB All Stainless Steel 4-Bolt Flange Bearing Units
SSUEF-EHB-ESB All Stainless Steel 4-bolt flange bearing units is a 4-bolt flange bearing units using all-stainless housed construction; this version uses concentric locking collar. For fit approval, check four-hole flange pattern, centre opening and rear clearance.
Clean the shaft and mounting surface before fit-up. Start fixing hardware loosely, position the unit without side-loading the shaft, and only then tighten according to the machine procedure. If significant force is required to make the holes line up, stop and investigate the interface rather than using bolts to pull the housing into shape.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Installation and Commissioning Check
Commissioning-focused buying notes
SSUEF-EHB-ESB All Stainless Steel 4-bolt flange bearing units is a 4-bolt flange bearing units using all-stainless housed construction; this version uses concentric locking collar. For fit approval, check four-hole flange pattern, centre opening and rear clearance.
The surrounding use case is typically food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports, but the final choice still depends on the actual machine position and service conditions.
Representative
SSUEF205ESB
Mounting
4-bolt flange, EHB/ESB styles
Locking
Concentric collar
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Installation and Commissioning Check
A correct product choice can still give a poor result if the housing is forced into position during assembly. Installation should preserve the shaft line and allow the support to sit naturally on its intended mounting face.
Clean the shaft and mounting surface before fit-up. Start fixing hardware loosely, position the unit without side-loading the shaft, and only then tighten according to the machine procedure. If significant force is required to make the holes line up, stop and investigate the interface rather than using bolts to pull the housing into shape.
Where safe and practical, check shaft movement before guards are closed. After the first controlled run, inspect seating, fastener security and any signs of movement at the locking area. These checks do not replace the machine manufacturer’s procedure; they help confirm that the chosen bearing unit has been integrated without an obvious fit-up problem.
Record any shims, spacers or special assembly notes discovered during the job. Those details are valuable the next time the same position is opened for service.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUEF205ESB |
| Mounting form | 4-bolt flange, EHB/ESB styles |
| Locking | Concentric collar |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |

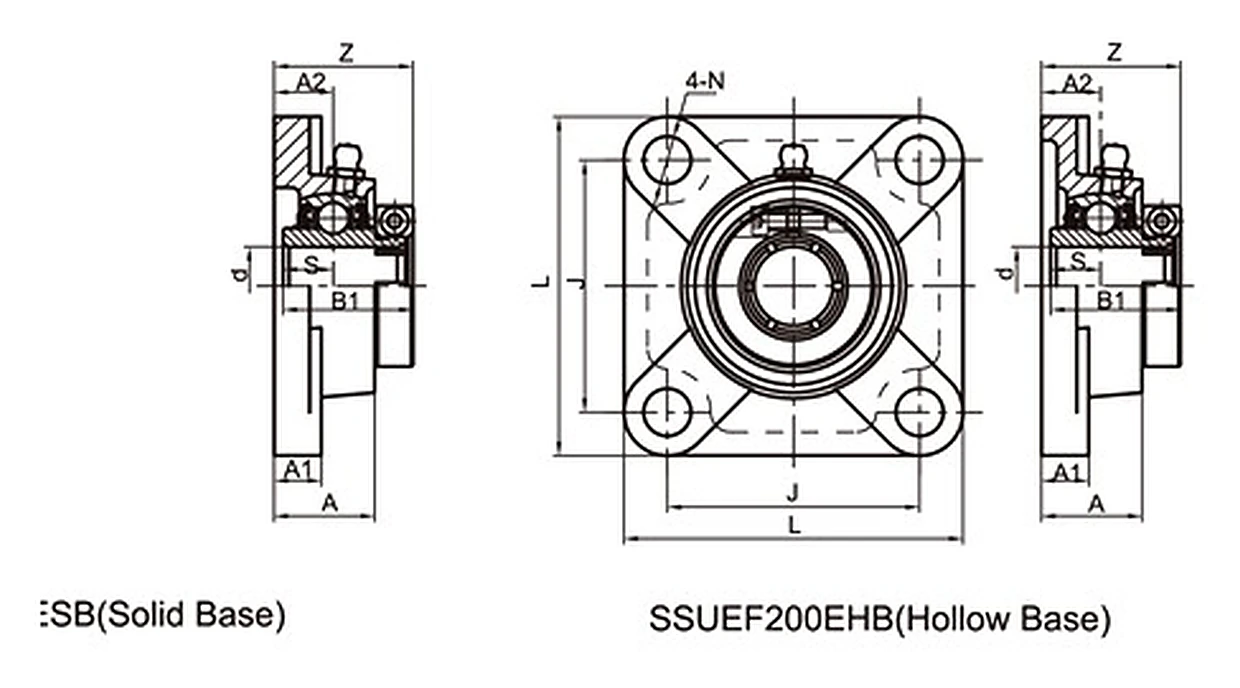

Pre-commissioning drawing check
Use the drawing to compare four-hole flange pattern, centre opening and rear clearance. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food & Beverage
SSUEF205ESB can be considered for food & beverage where its 4-bolt flange, ehb/esb styles geometry matches the machine. Four-hole pitch, rear clearance and centre opening control the flange interface.
Pharmaceutical Equipment
For pharmaceutical equipment, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUEF205ESB only where the actual moisture, contamination and cleaning conditions match the selected product family.
