UCAK200 Series Pillow Block Bearing Units — Low Centre Height Housing, Setscrew Locking

The UCAK200 series uses the AK housing profile — a design variant where the housing body is lower in centre height than the standard UCP200 for equivalent bore sizes. This reduced centreline-to-base distance (H0 dimension) directly addresses installations where the shaft must pass close to the mounting surface, where headroom above the mounting plane is limited by an adjacent component, or where the machine designer needs the shaft centreline at a specific height without using a large-bore unit as a workaround.

UCAK200 series pillow block bearing unit low centre height AK housing setscrew locking cast iron

AK Housing Geometry — Where the Difference Matters

Comparing UCAK205 and UCP205 at 25 mm bore: the UCAK205 has H = 33.3 mm and H0 = 68 mm versus the UCP205 H = 36.5 mm and H0 = 71 mm. This 3 mm reduction in centreline height may appear minor in isolation, but in a multi-bearing shaft arrangement where all bearing mounting heights must be co-planar and the shaft centreline is constrained by adjacent gears, sprockets, or guards, a 3 mm difference per bearing can cascade into a significant misalignment problem if the wrong housing is specified.

The AK housing also uses a smaller bolt pattern (M12 bolts for the 30–50 mm bore range versus M14 for equivalent UCP200 sizes), which allows mounting in frame sections where M14 would require additional machining.

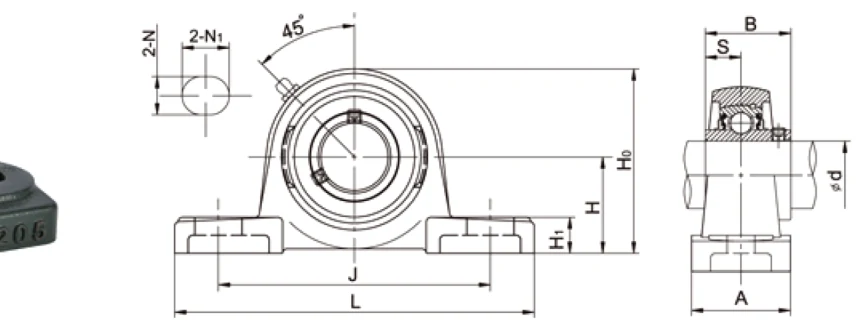

UCAK200 low centre height pillow block dimensional drawing H H0 AK housing specifications

Key Features

▼

Reduced Centre Height (H0)

Lower shaft centreline-to-base dimension than UCP200 for equivalent bore sizes. Enables shaft positioning closer to the mounting surface.

🔧

Dual Setscrew Locking

Two setscrews at 120° — same proven retention geometry as the UCP200 family. Bidirectional and intermittent-duty capable.

↔

Wider Inner Ring Self-Aligning Insert

UC series insert bearing with spherical OD accommodating up to 2° misalignment. Wide inner ring provides setscrew seating surfaces and axial float capacity.

▭

Compact Hollow Base

Hollow base standard. AK housing profile keeps overall unit width narrower than UCP200.

💧

Standard Lubrication Access

Grease fitting at 45° standard; 90° on request.

✅

Multi-Standard Compliance

AK housing dimensions comply with GB, ISO, ANSI, JIS standards.

Full Dimensional Specifications

Unit No. d mm d inch H mm L mm J mm A mm N mm N1 mm H1 mm H0 mm B mm S mm Bolt kg
UCAK201~203 / 201-8~202-10 12~15 1/2~5/8 27 121 89 35 12 16 13 54 26 10 M10 0.74
UCAK204 / 204-12 20 3/4 31.8 133 98 41 12 16 14.3 64 31 12.7 M10 0.77
UCAK205 / 205-13~16 25 13/16~1 33.3 140 105 45 12 16 16 68 34 14.3 M10 0.91
UCAK206 / 206-17~20 30 1-1/16~1-1/4 39.7 160 121 48 15 19 17 80 38.1 15.9 M12 1.27
UCAK207 / 207-20~23 35 1-1/4~1-7/16 46 167 127 48 15 19 19 92 42.9 17.5 M12 1.59
UCAK208 / 208-24/25 40 1-1/2~1-9/16 49.2 181 140 54 15 19 19 100 49.2 19 M12 2.06
UCAK209 / 209-26~28 45 1-5/8~1-3/4 52.4 190 146 54 15 19 21 106 49.2 19 M12 2.33
UCAK210 / 210-29~32 50 1-13/16~2 55.6 203 159 57 15 19 22 113 51.6 19 M12 2.68
UCAK211 / 211-32~35 55 2~2-3/16 61.9 232 181 60 20 24 25 125 55.6 22.2 M16 3.62
UCAK212 / 212-36~39 60 2-1/4~2-7/16 68.3 241 190 64 20 24 29 138 65.1 25.4 M16 4.61
UCAK213 / 213-40/41 65 2-1/2~2-9/16 68.3 248 194 70 22 29 27 141 65.1 25.4 M20 6.42
UCAK214 / 214-42~44 70 2-5/8~2-3/4 82.6 294 232 72 22 32 29 160 74.6 30.2 M20 7.18
UCAK215 / 215-45~48 75 2-13/16~3 84.1 304 241 74 22 32 32 165 77.8 33.3 M20 8.86
