UCFLX00 Series 2-Bolt Flange Bearing Units — Medium Duty, Setscrew Locking
The UCFLX00 series provides the medium-duty step-up from the standard UCFL200 in the oval two-bolt flange format, exactly mirroring the UCFX00 relationship to UCF200 in the square four-bolt format. The heavier housing cross-section and higher-rated UC insert bearing of the UCFLX00 address the two most common failure modes of a standard-duty oval flange under elevated load: housing tilt causing loss of bearing alignment, and insert bearing fatigue from loads that exceed the UCFL200 capacity. The UCFLX00 specification table also lists both metric and inch bolt sizes — the oval flange bolt holes accept either standard at the listed dimensions.
Key Features
⚙
Heavy-Section Oval Housing
Heavier cast iron oval housing cross-section delivers higher bending stiffness and moment resistance than UCFL200 at equivalent bore sizes.
🔧
Setscrew Locking
Same dual 120° setscrew geometry as UCFL200. No crew retraining when upgrading from standard to medium duty oval flange.
↔
Higher-Rated UC Insert
Heavier UC insert bearing with higher C and C0 ratings than UCFL200 equivalent at same bore size.
📏
Metric and Inch Bolt Sizes
Both metric (M14, M16) and inch (3/8, 1/2, 5/8) bolt sizes listed — same bolt hole accepts either standard.
▭
Solid Base Option
Hollow base standard. Solid base (SB) on request.
✅
GB / ISO / ANSI / JIS Compliant
Drop-in replacement for UCFLX-pattern medium duty oval flange units.
Full Dimensional Specifications

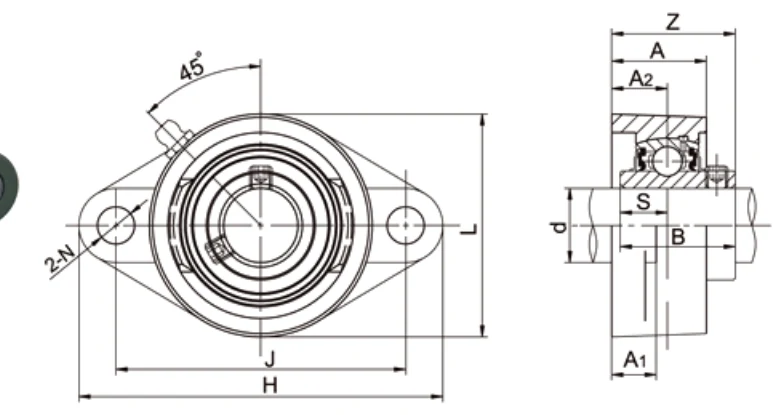

| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A1 mm | A mm | N mm | L mm | B mm | S mm | Z mm | Bolt mm | Bolt in | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFLX05 / 05-13~16 | 25 | 13/16~1 | 141 | 117 | 18 | 13 | 30 | 12 | 83 | 38.1 | 15.9 | 40.2 | M14 | 3/8 | 1.0 |
| UCFLX06 / 06-17~20 | 30 | 1-1/16~1-1/4 | 156 | 130 | 19 | 15 | 34 | 16 | 95 | 42.9 | 17.5 | 44.4 | M14 | 1/2 | 1.5 |
| UCFLX07 / 07-21~23 | 35 | 1-5/16~1-7/16 | 171 | 144 | 21 | 16 | 38 | 16 | 105 | 49.2 | 19 | 51.2 | M14 | 1/2 | 2.0 |
| UCFLX08 / 08-24/25 | 40 | 1-1/2~1-9/16 | 179 | 148 | 22 | 16 | 40 | 16 | 111 | 49.2 | 19 | 52.2 | M14 | 1/2 | 2.2 |
| UCFLX09 / 09-26~29 | 45 | 1-5/8~1-13/16 | 189 | 157 | 23 | 16 | 40 | 16 | 116 | 51.6 | 19 | 55.6 | M16 | 1/2 | 2.4 |
| UCFLX10 / 10-30~32 | 50 | 1-7/8~2 | 216 | 184 | 26 | 18 | 44 | 19 | 133 | 55.6 | 22.2 | 59.4 | M16 | 5/8 | 3.4 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
Applications
▶
Heavy Belt Drive Oval Flange Positions
Drive and tail shaft oval flange supports where belt tensions push a UCFL200 toward its rated capacity and housing tilt under belt pull is a concern.
⛏
Aggregate & Quarry Side-Frame Supports
Screen and crusher auxiliary shaft oval flange supports on vertical side-frame panels where impact loads demand medium-duty housing stiffness.
🌿
Agricultural Heavy Implement Oval Flanges
Combine harvester and large implement shaft oval flange supports where crop-load variability creates peak loads exceeding UCFL200 capacity.
⚙
Mixer & Agitator Oval Flange Supports
Paddle mixer and agitator shaft oval flange supports on vertical vessel end plates where cantilevered impeller weight generates sustained bending moments.
🔄
Upgrade from UCFL200
Direct medium-duty upgrade from UCFL200 when field service shows short bearing life. Same setscrew procedure, same bore suffixes.
🏛
Building Materials Frame Drives
Extrusion screw and press roller shaft oval flange supports on vertical press frames where high cyclic radial loads demand housing stiffness beyond standard UCFL200.
