UCT300 Series Take Up Bearing Units

UCT300 Series Take Up Bearing Units

Heavy duty cast iron take-up bearing units with setscrew locking, shaft bore 25–140 mm. Maximum radial load capacity in the standard cast iron take-up range — for mining, cement, and large bulk handling conveyor drives. New-client samples 1–5 pcs at sample price. Multi-model orders from USD 1,500. Retail 1–2 pcs not accepted. Engineering drawings required — catalogue for reference only.

MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.

SKU: GBC-UCT300 Categories: , Tags: , , , ,
Inquiry Now

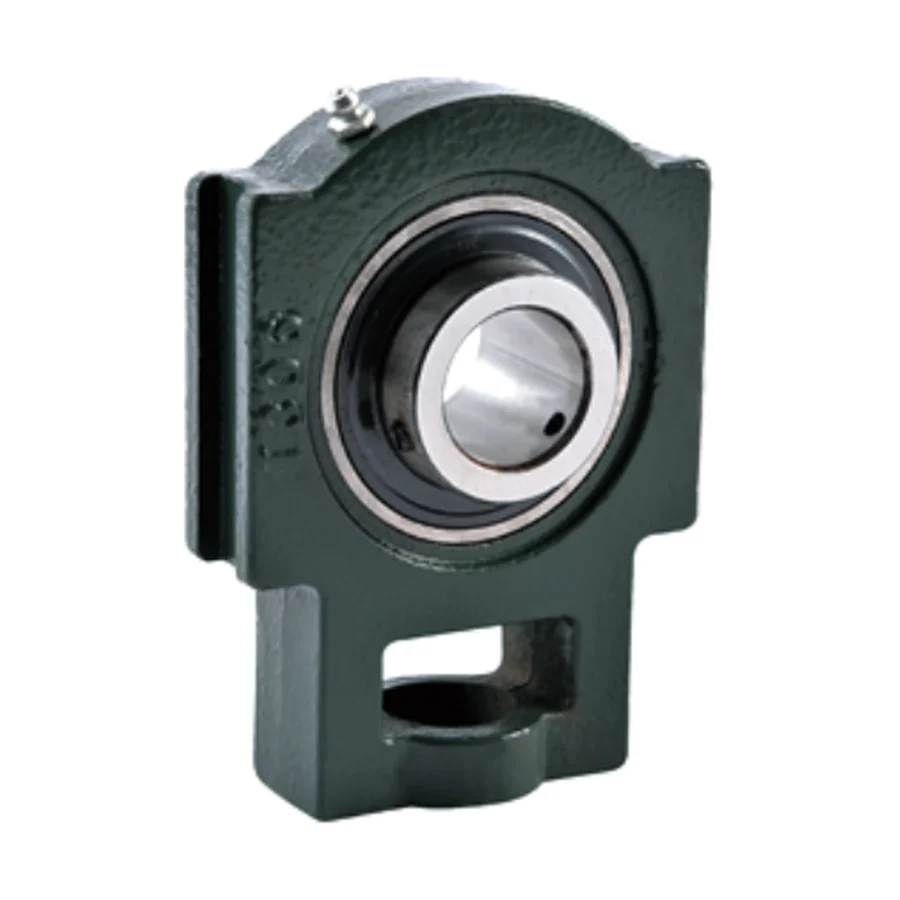

UCT300 Series Take Up Bearing Units — Heavy Duty, Setscrew Locking, 25–140 mm

A take-up unit combines a mounted bearing with a slotted cast iron housing that slides along a frame rail or between guide faces, driven by an adjusting screw. The slot travel (controlled by dimensions N1 and N2 — slot width and slot length) allows the bearing centreline to be moved axially or laterally relative to the drive structure after installation, tensioning a belt, chain, or timing drive without removing the bearing from the shaft. Once the correct tension is set, the housing is locked in position by tightening the frame bolts through the slot. This combination of bearing and tensioning mechanism in a single unit reduces the number of components on a conveyor or drive frame, lowers installation time, and makes re-tensioning after belt stretch a tool-only operation without shaft removal.

The UCT300 series represents the maximum load capacity available in a standard cast iron take-up unit, scaling from 25 mm (UCT305) to 140 mm shaft diameter (UCT328). At 140 mm, the UCT328 weighs 83.2 kg, with a frame length L of 515 mm and a slot travel N2 of 80 mm. This combination of heavy structural frame and large-diameter UC300 series insert makes the UCT300 the correct choice for the tail pulley and bend pulley take-up positions on large overland conveyors, where belt tensions reach tens of kilonewtons and the frame must maintain its slot alignment under sustained load without deflecting.

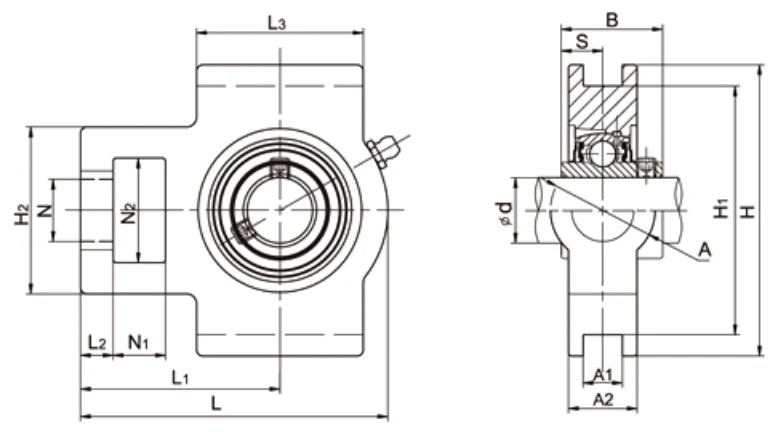

UCT300 series heavy duty take-up bearing unit cast iron setscrew locking 25 to 140mm large belt conveyor miningUCT300 heavy duty take-up bearing dimensional drawing N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B S specifications

Key Features

⚙

Maximum Load Cast Iron Take-Up Frame

Heaviest take-up frame cross-section in the standard cast iron range. UCT305 (1.41 kg) to UCT328 (83.2 kg, 515 mm frame). Full heavy-duty coverage for the largest take-up positions.

🔧

UC300 Insert Bearing

Significantly higher C and C0 ratings than UC200 equivalents. Wide inner ring for axial float in long belt spans where thermal expansion is significant.

⇨

Large N2 Slot Travel

Slot travel grows with frame size: UCT305 N2=36 mm to UCT328 N2=80 mm. Sufficient range for initial installation alignment and re-tensioning after extended belt stretch on large conveyor systems.

📏

Pure Metric Bore

Metric bore only. Model suffix = bore in mm: UCT305=25 mm, UCT328=140 mm. No inch bore variants.

▭

Hollow Base Standard

Solid base (SB) available on request — recommended for UCT316 and above where frame reaction loads are highest.

💧

Re-lubrication Under Load

Grease fitting at 45° standard; 90° on request for large units where side access is restricted during operation.

Full Dimensional Specifications

Unit No. d mm N1 mm L2 mm H2 mm N2 mm N mm L3 mm A1 mm H1 mm H mm L mm A mm A2 mm L1 mm B mm S mm kg
UCT305 25 16 12 62 36 26 65 12 80 90 122 36 26 76 38 15 1.41
UCT306 30 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 1.85
UCT307 35 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 2.45
UCT308 40 22 17 83 50 32 89 18 112 124 162 50 34 100 52 19 3.09
UCT309 45 24 18 90 55 34 97 18 125 138 178 55 38 110 57 22 4.08
UCT310 50 27 20 98 61 37 106 20 140 151 191 61 40 117 61 22 5.25
UCT311 55 29 21 105 66 39 115 22 150 163 207 66 44 127 66 25 6.41
UCT312 60 31 23 115 71 41 123 22 160 179 220 72 46 135 71 26 7.61
UCT313 65 32 25 116 70 43 134 26 170 190 238 80 50 146 75 30 9.22
UCT314 70 36 25 130 85 46 140 26 180 202 252 90 52 155 78 33 11.40
UCT315 75 36 25 134 85 46 150 26 192 216 262 90 55 160 82 32 12.90
UCT316 80 42 28 150 98 53 160 30 204 230 282 102 60 174 86 34 15.65
UCT317 85 42 30 152 98 53 170 32 214 240 298 102 64 183 96 40 19.34
UCT318 90 46 30 160 106 57 175 32 228 255 312 110 66 192 96 40 21.25
UCT319 95 46 31 165 106 57 180 35 240 270 322 110 72 197 103 41 24.40
UCT320 100 48 32 175 115 59 200 35 260 290 345 120 75 210 108 42 30.60
UCT321 105 48 32 175 115 59 200 35 260 290 345 120 75 210 112 44 30.20
UCT322 110 52 38 185 125 65 215 38 285 320 385 130 80 235 117 46 38.80
UCT324 120 60 42 210 140 70 230 45 320 355 432 140 90 267 126 51 54.60
UCT326 130 65 45 220 150 75 240 50 350 385 465 150 100 285 135 54 68.40
UCT328 140 70 50 230 160 80 255 50 380 415 515 155 100 315 145 59 83.20

→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.

Metric bore only — no inch variants. Model suffix = bore in mm. Solid base: suffix SB. Note UCT328 = 83.2 kg, frame L = 515 mm.

UCT300 heavy duty take-up bearing units large bore mining cement bulk handling conveyor

Applications

⛏

Mining Overland Conveyor Take-Up

Tail pulley and bend pulley take-up positions on overland and underground mining conveyors where shaft diameters of 80–140 mm and belt tensions of tens of kN require UCT316–UCT328 frame capacity.

🏛

Cement Plant Conveyor Take-Up

Clinker conveyor, raw mill feed conveyor, and cement silo feed conveyor take-up positions where heavy cyclic belt loads and abrasive conditions demand maximum frame stiffness.

▶

Bulk Terminal Conveyor Take-Up

Stacker-reclaimer and ship loader/unloader belt conveyor take-up positions where shaft sizes reach UCT320–UCT328 and sustained high belt tensions require the UCT300 frame capacity.

🔄

Aggregate & Quarry Heavy Conveyor Take-Up

Primary crusher discharge and secondary screening conveyor take-up positions where heavy material loads create belt tensions that exceed UCTX00 medium-duty frame capacity.

🌿

Port & Grain Terminal Conveyor Take-Up

Grain elevator leg, ship loader, and grain conveyor belt take-up positions where large belt spans and high throughput demands create sustained high belt tensions.

⚙

Power Station Coal Handling Take-Up

Coal conveyor take-up positions at power station coal handling plants where long conveyor spans and high throughput create sustained high belt tensions at shaft sizes up to UCT320.

📦 MOQ & Order Information

  • Standard parts: quantity-based MOQ applies per model number.
  • High-value / large items: minimum order by USD order value.
  • New-client samples: 1–5 pcs available at sample price for first-time buyers.
  • Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
  • Special materials / processes: subject to process MOQ — confirm at inquiry stage.
  • Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.

Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.

GBC UCT300 heavy duty take-up bearing units large bore range

Frequently Asked Questions

Does UCT300 have inch bore variants?

No — metric bore only. Bore size = model suffix: UCT305=25 mm, UCT328=140 mm.

Maximum shaft size and slot travel?

UCT328 = 140 mm shaft, 83.2 kg, L=515 mm, N2=80 mm.

UCT300 vs UCTX00?

UCT300 = heavy duty, UC300 insert, metric bore 25–140 mm. UCTX00 = medium duty, UCX insert, metric+inch bore 25–85 mm.

What is the MOQ?

Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.

Request a Quote for UCT300 Series

Provide shaft diameter, belt tension estimate, operating speed, and daily running hours. Contact us.
