WP-SSBF-WATERPROOF Waterproof Thermoplastic 4-Bolt Flange Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
WP-SSBFL-WATERPROOF Waterproof Thermoplastic 2-Bolt Flange Bearing Units
On WP-SSBFL-WATERPROOF-SERIES, the mechanical form is 2-bolt flange bearing units, the construction is waterproof thermoplastic housing and dedicated sealing accessories, and the shaft connection is confirm locking style by exact model code. The machine-side comparison should cover two-hole spacing, flange length and shaft centre position.
Start by reserving a clear shaft line and the envelope needed by the chosen mounting form. Leave realistic room for bolts, collars, grease access and eventual removal. A housing that fits in a CAD model can still become awkward on the shop floor if a guard blocks the fastener path or if a wrench cannot reach the locking feature after the rest of the machine is assembled.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
WP-SSBFL205
Mounting
Waterproof 2-bolt flange
Locking
Setscrew insert
Representative bore
25 mm
H
131 mm
J
99 mm
Designing the Support Into New Equipment
Design-stage selection notes
On WP-SSBFL-WATERPROOF-SERIES, the mechanical form is 2-bolt flange bearing units, the construction is waterproof thermoplastic housing and dedicated sealing accessories, and the shaft connection is confirm locking style by exact model code. The machine-side comparison should cover two-hole spacing, flange length and shaft centre position.
This product family is commonly reviewed for washdown equipment, splash-prone conveyors and protected wet-process bearing positions. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Designing the Support Into New Equipment
New-machine projects allow the bearing position to be engineered before the frame, guards and nearby components become fixed. That makes early interface planning more valuable than simply selecting a familiar housing and drawing the structure around it later.
Start by reserving a clear shaft line and the envelope needed by the chosen mounting form. Leave realistic room for bolts, collars, grease access and eventual removal. A housing that fits in a CAD model can still become awkward on the shop floor if a guard blocks the fastener path or if a wrench cannot reach the locking feature after the rest of the machine is assembled.
The design record should identify the exact product reference, the shaft size, the locking method and the mounting dimensions that locate the unit. Put these items in the bill of materials rather than relying on a generic note such as “flange bearing.” Doing so makes the first build easier to inspect and gives future maintenance teams a better starting point when the same support must be replaced.
Think about spares at the same stage. If several positions could share one product, verify the interfaces deliberately instead of assuming commonality because the shaft diameters match. A small amount of design discipline now can prevent a plant from carrying several almost-identical housings that cannot actually substitute for one another.
Machine drawing review

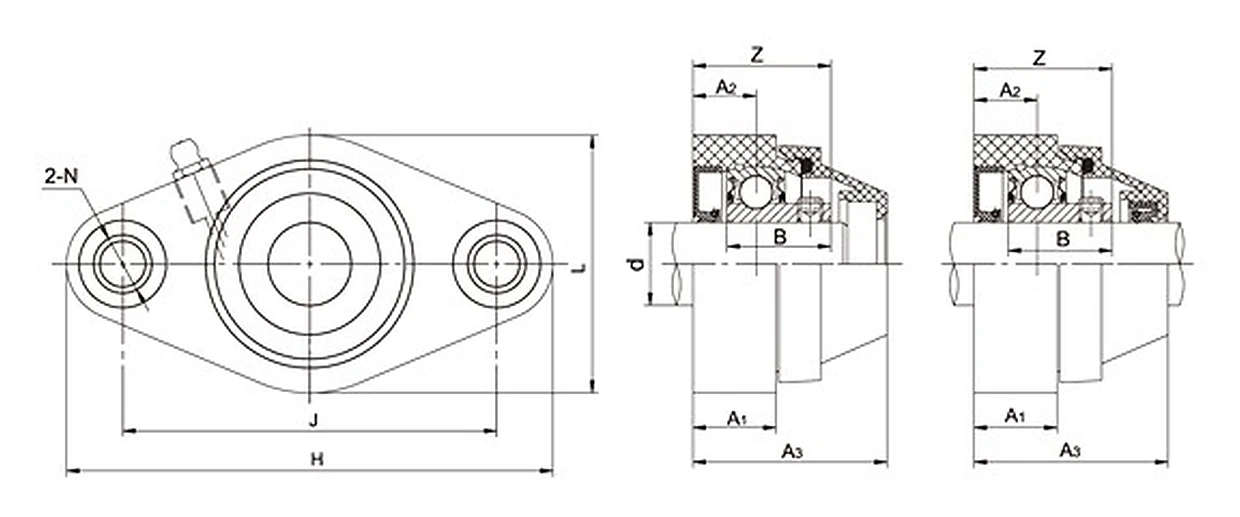

Use the drawing to compare two-hole spacing, flange length and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H | 131 mm |
| J | 99 mm |
| A2 | 16.8 mm |
| A1 | 22.5 mm |
| N | 11 mm |
| L | 71 mm |
| B | 27 mm |
| Z | 36.3 mm |
| A3 | 49.5 mm |
| Bolt size | M10 |
| Housing weight | 0.14 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 8,943 N |
| Mode 2 | 15,811 N |
| Mode 3 | 3,876 N |
Applications
Frequent Washdown
WP-SSBFL205 can be considered for frequent washdown where its waterproof 2-bolt flange geometry matches the machine. Two-hole spacing and flange thickness should be checked before replacing an older support.
Food & Beverage Lines
For food & beverage lines, the setscrew insert arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Wet Process Equipment
In wet process equipment service, use the construction of WP-SSBFL205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
Related Products
WP-SSBP205 Waterproof Thermoplastic Pillow Block | Washdown | 25 mm Bore
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
New-build RFQ
For WP-SSBFL-WATERPROOF-SERIES, provide the build quantity, shaft size, machine drawing and service environment.
On WP-SSBFL-WATERPROOF-SERIES, the mechanical form is 2-bolt flange bearing units, the construction is waterproof thermoplastic housing and dedicated sealing accessories, and the shaft connection is confirm locking style by exact model code. The machine-side comparison should cover two-hole spacing, flange length and shaft centre position.
Start by reserving a clear shaft line and the envelope needed by the chosen mounting form. Leave realistic room for bolts, collars, grease access and eventual removal. A housing that fits in a CAD model can still become awkward on the shop floor if a guard blocks the fastener path or if a wrench cannot reach the locking feature after the rest of the machine is assembled.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
