NAT200 Series Take Up Bearing Units — Standard Duty, Eccentric Locking Collar
A take-up unit combines a mounted bearing with a slotted cast iron housing that slides along a frame rail or between guide faces, driven by an adjusting screw. The slot travel (controlled by dimensions N1 and N2 — slot width and slot length) allows the bearing centreline to be moved axially or laterally relative to the drive structure after installation, tensioning a belt, chain, or timing drive without removing the bearing from the shaft. Once the correct tension is set, the housing is locked in position by tightening the frame bolts through the slot. This combination of bearing and tensioning mechanism in a single unit reduces the number of components on a conveyor or drive frame, lowers installation time, and makes re-tensioning after belt stretch a tool-only operation without shaft removal.
The NAT200 combines the UCT200 take-up frame with the eccentric locking collar insert of the NAP200 pillow block series. The eccentric collar tightens under unidirectional shaft rotation, making the NAT200 more resistant to locking mechanism loosening under sustained belt tension and frame vibration than a setscrew take-up unit. On conveyor drives that run in one direction continuously, the self-reinforcing grip of the eccentric collar means the bearing stays locked on the shaft through the tensioning adjustment range without the retightening intervals that setscrew units may require in high-vibration environments.
Key Features
🔄
Eccentric Collar Self-Tightening
Collar tightens under unidirectional shaft rotation. Self-reinforcing grip increases with belt load — more secure than setscrew in high-vibration take-up positions on sustained unidirectional conveyors.
⇨
Same Take-Up Frame as UCT200
N1, N2, L, L1, L2, L3, H, H1, H2 dimensions match UCT200 for equivalent bore sizes. Upgrade from setscrew to eccentric collar by replacing insert only.
▼
NAT201S–203S Slim Variant
Compact S-series for 12–17 mm bore with reduced B1 width. Lighter and narrower for small-bore take-up positions.
📏
Metric and Inch Bore
12–85 mm metric bore with inch bore variants per housing size.
⚡
Unidirectional Drives Only
Eccentric collar releases under shaft reversal. For reversing or jogging drives, use UCT200 setscrew or UET200 concentric collar.
✅
GB / ISO / ANSI / JIS Compliant
Drop-in replacement for NAT200-pattern eccentric collar take-up units.

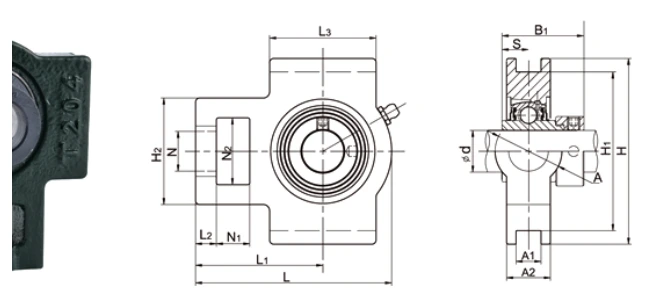

Full Dimensional Specifications
| Unit No. | d mm | d inch | N1 mm | L2 mm | H2 mm | N2 mm | N mm | L3 mm | A1 mm | H1 mm | H mm | L mm | A mm | A2 mm | L1 mm | B1 mm | S mm | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NAT201S~203S / -8S~203-11S | 12~17 | 1/2~11/16 | 15 | 9 | 46 | 31 | 18 | 46 | 12 | 70 | 82 | 88 | 30 | 21 | 58 | 37.3 | 13.9 | 0.78 |
| NAT201~204 / 201-8~204-12 | 12~20 | 1/2~3/4 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 43.5 | 17 | 0.87 |
| NAT205 / 205-14~16 | 25 | 7/8~1 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 97 | 32 | 24 | 62 | 44.3 | 17.4 | 0.92 |
| NAT206 / 206-18~20 | 30 | 1-1/8~1-1/4 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 | 102 | 113 | 37 | 28 | 70 | 48.3 | 18.2 | 1.39 |
| NAT207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 | 102 | 129 | 37 | 30 | 78 | 51.1 | 18.8 | 1.83 |
| NAT208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 114 | 144 | 49 | 33 | 88 | 56.3 | 21.4 | 2.64 |
| NAT209 / 209-26~28 | 45 | 1-5/8~1-3/4 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 117 | 144 | 49 | 35 | 87 | 56.3 | 21.4 | 2.67 |
| NAT210 / 210-30/31 | 50 | 1-7/8~1-15/16 | 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 | 117 | 149 | 49 | 37 | 90 | 62.7 | 24.6 | 2.81 |
| NAT211 / 211-32~35 | 55 | 2~2-3/16 | 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 | 146 | 171 | 64 | 38 | 106 | 71.3 | 27.7 | 4.27 |
| NAT212 / 212-36~39 | 60 | 2-1/4~2-7/16 | 32 | 19 | 102 | 64 | 35 | 102 | 22 | 130 | 146 | 194 | 64 | 42 | 119 | 77.7 | 30.9 | 5.26 |
| NAT213 / 213-40 | 65 | 2-1/2 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 70 | 44 | 137 | 85.7 | 34.1 | 7.55 |
| NAT214 / 214-44 | 70 | 2-3/4 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 224 | 70 | 46 | 137 | 85.7 | 34.1 | 7.62 |
| NAT215 / 215-47/48 | 75 | 2-15/16~3 | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 151 | 167 | 232 | 70 | 48 | 140 | 92.1 | 37.3 | 8.13 |
| NAT216 | 80 | — | 32 | 21 | 111 | 70 | 41 | 121 | 26 | 165 | 184 | 235 | 70 | 51 | 140 | 95.2 | 37.3 | 8.53 |
| NAT217 / 217-52 | 85 | 3-1/4 | 38 | 29 | 124 | 73 | 48 | 157 | 30 | 173 | 198 | 260 | 73 | 54 | 162 | 73.2 | 23.4 | 12.03 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
B1 = eccentric collar insert width (wider than UCT200 B). S-suffix = compact slim variant. Eccentric collar lock direction must match shaft rotation direction — specify at order if non-standard.
Applications
▶
Unidirectional Flat Belt Conveyors
Take-up positions on single-direction flat belt conveyors where the eccentric collar's self-tightening action under belt tension provides more reliable long-term shaft retention than setscrew in vibration-prone frame structures.
🔄
Chain Drive Tensioning — Unidirectional
Primary and secondary chain drive take-up positions where the drive runs in one direction and the eccentric collar provides better retention under sustained chain load than setscrew.
🌿
Agricultural Harvester Unidirectional Drives
Combine harvester and baler belt drive take-up positions where the drive direction is fixed and the eccentric collar tightens progressively under crop-load-induced belt tension spikes.
⚙
Fan Drive Belt Take-Up — Unidirectional
Single-direction centrifugal fan belt drive take-up positions where the fan runs continuously and the eccentric collar provides better retention than setscrew under sustained belt load and frame vibration.
⛏
Aggregate Plant Belt Conveyors
Medium-duty aggregate and mineral conveyor take-up positions where high frame vibration and sustained belt tension make setscrew loosening a recurring maintenance issue.
🔄
Upgrade from UCT200 on Unidirectional Drives
Direct insert-only upgrade from UCT200 setscrew where field experience shows setscrew loosening under vibration. Frame and slot dimensions unchanged.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Frequently Asked Questions
Can NAT200 be used on a reversing drive?
No — eccentric collar releases under reversal. Use UCT200 or UET200 for reversing drives.
Same frame as UCT200?
Yes — N1, N2, L, H dimensions match. Replace insert only to upgrade.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for NAT200 Series
Provide shaft diameter, rotation direction, bore type, and quantity. Contact us.
