SSUCFB-A All Stainless Steel Flange Bracket Bearing Units
SSUCFB-A-SERIES belongs to the all stainless steel bearing units range. It is supplied as a flange bracket bearing units with all-stainless housed construction and setscrew locking; compare bracket outline, bolt locations and shaft offset before approval.
Measure the journal rather than assuming an old equipment list is still correct. Previous repairs may have introduced sleeves, polished seating areas or local modifications that are not recorded in the original documentation. The shaft surface also deserves attention: burrs, corrosion and old locking marks can make a new insert difficult to install even when the nominal bore is right.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
SSUCFB205A
Mounting
Flange bracket, A style
Locking
Setscrew
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Shaft-First Selection
Shaft-first buying notes
SSUCFB-A-SERIES belongs to the all stainless steel bearing units range. It is supplied as a flange bracket bearing units with all-stainless housed construction and setscrew locking; compare bracket outline, bolt locations and shaft offset before approval.
Applications include food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports. Treat that as context only; dimensions and environment at the real bearing point control the final selection.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUCFB205A |
| Mounting form | Flange bracket, A style |
| Locking | Setscrew |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |
| Load / Housing Strength Reference | |
| Recommended set-screw torque for SUC204-206 | 3.9 N.m |
Shaft-First Selection
A good bearing selection starts at the shaft because every other decision depends on that interface. Bore size, shaft condition and the retention method should be established before the housing is treated as final.
Measure the journal rather than assuming an old equipment list is still correct. Previous repairs may have introduced sleeves, polished seating areas or local modifications that are not recorded in the original documentation. The shaft surface also deserves attention: burrs, corrosion and old locking marks can make a new insert difficult to install even when the nominal bore is right.
Once the shaft connection is clear, work outward to housing geometry and machine mounting. This sequence keeps two different questions separate: whether the insert belongs on the shaft, and whether the complete unit belongs on the frame. Mixing those decisions is a common reason a substitute looks convincing on paper but does not fit during maintenance.
If the shaft has visible damage, include photos and measurements in the enquiry. A replacement bearing should not be expected to correct a mechanical problem at the seating area. Addressing the shaft condition at the same time usually produces a cleaner, more repeatable repair.
Journal and housing dimensions

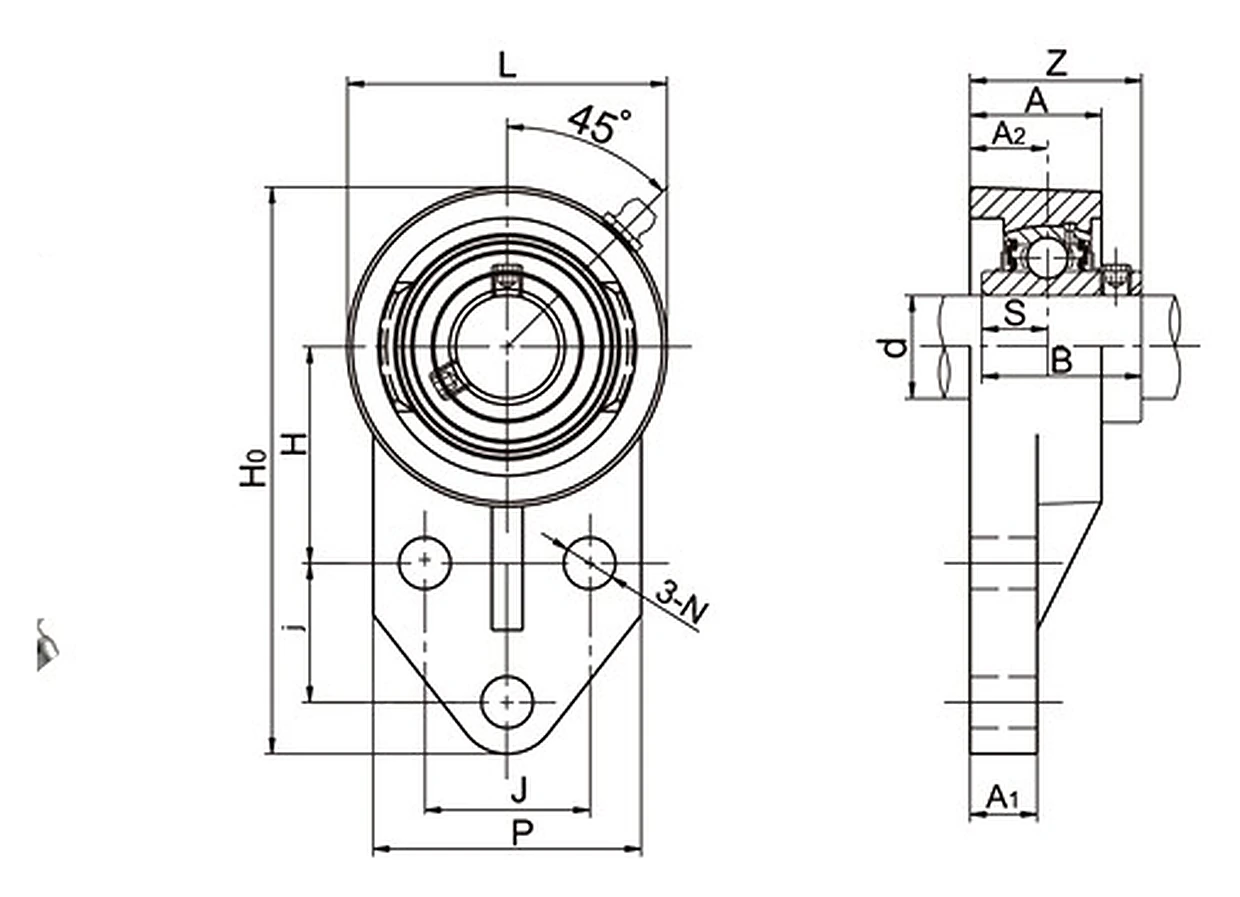

Use the drawing to compare bracket outline, bolt locations and shaft offset. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food & Beverage
SSUCFB205A can be considered for food & beverage where its flange bracket, a style geometry matches the machine. Bracket hole pattern and offset influence how the bearing sits against the support plate.
Pharmaceutical Equipment
For pharmaceutical equipment, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUCFB205A only where the actual moisture, contamination and cleaning conditions match the selected product family.
