SSUCT All Stainless Steel Take-Up Bearing Units
For SSUCT All Stainless Steel Take-up bearing units, review the complete mounted interface: take-up guide width, adjustment travel and shaft centre position, then the setscrew locking shaft connection. The product construction is all-stainless housed construction.
Use receiving labels that show the complete SKU and one or two distinguishing features. If the store holds two close variants, add a plain-language note such as “concentric collar” or “two-bolt flange” rather than relying on packaging artwork. This helps maintenance personnel select the right item without opening several boxes during a shutdown.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Warehouse and Receiving Identification
Receiving-control buying notes
For SSUCT All Stainless Steel Take-up bearing units, review the complete mounted interface: take-up guide width, adjustment travel and shaft centre position, then the setscrew locking shaft connection. The product construction is all-stainless housed construction.
This product family is commonly reviewed for food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Representative
SSUCT205
Mounting
Take-up unit
Locking
Setscrew
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Warehouse and Receiving Identification
Similar bearing units are easy to mix after they enter stores. The broad family name may be correct for several items while the bore, locking style or housing geometry differs in ways that only become obvious at installation.
Use receiving labels that show the complete SKU and one or two distinguishing features. If the store holds two close variants, add a plain-language note such as “concentric collar” or “two-bolt flange” rather than relying on packaging artwork. This helps maintenance personnel select the right item without opening several boxes during a shutdown.
Before the old bearing is removed, compare the picked spare with the work order. Check the shaft interface and mounting form while there is still time to resolve a mismatch. This small receiving-to-maintenance link can prevent a planned job from turning into emergency sourcing.
Return unused spares to clearly identified storage. Mixed cartons, missing labels and open packages create future uncertainty that no technical catalogue can fully solve.

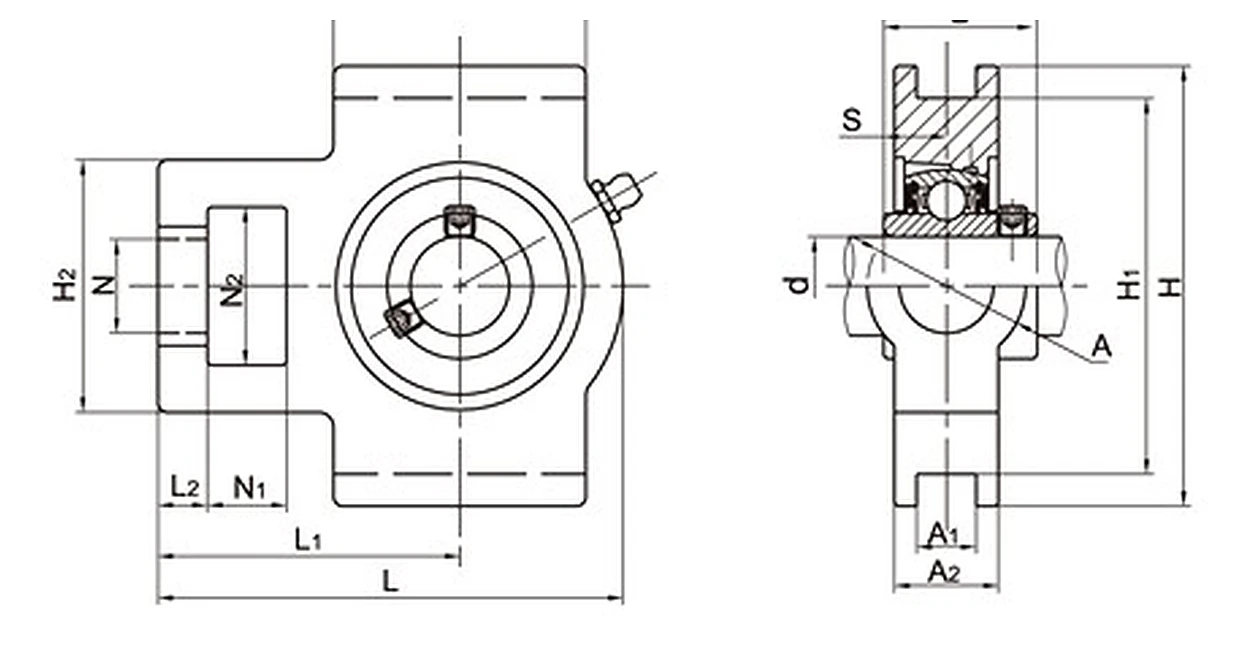

Receiving inspection drawing check
Use the drawing to compare take-up guide width, adjustment travel and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUCT205 |
| Mounting form | Take-up unit |
| Locking | Setscrew |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |
| Load / Housing Strength Reference | |
| Recommended set-screw torque for SUC204-206 | 3.9 N.m |
Applications
Food & Beverage
SSUCT205 can be considered for food & beverage where its take-up unit geometry matches the machine. Guide width and adjustment travel must remain compatible with the tensioning frame.
Pharmaceutical Equipment
For pharmaceutical equipment, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUCT205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
Related Products
SSUCFL-A All Stainless Steel 2-Bolt Flange Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
SSUCF-A All Stainless Steel 4-Bolt Flange Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
Receiving RFQ
State the exact store SKU, bore, housing form and quantity so receiving can separate close variants.
For SSUCT All Stainless Steel Take-up bearing units, review the complete mounted interface: take-up guide width, adjustment travel and shaft centre position, then the setscrew locking shaft connection. The product construction is all-stainless housed construction.
Use receiving labels that show the complete SKU and one or two distinguishing features. If the store holds two close variants, add a plain-language note such as “concentric collar” or “two-bolt flange” rather than relying on packaging artwork. This helps maintenance personnel select the right item without opening several boxes during a shutdown.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
