TP-SBPY-TP-SAPY Thermoplastic Pillow Block Bearing Units
The requested TP-SBPY-TP-SAPY-SERIES configuration combines corrosion-resistant thermoplastic housing with confirm locking style by exact model code in a pillow block bearing units format. The decisive fit dimensions are base bolt spacing, centre height and foot length.
Inspect the frame while the old unit is still installed. Look for shims, cracked welds, elongated holes and signs that the housing has not been sitting evenly. If the equipment has been rebuilt locally, measure the current interface instead of assuming the original drawing remains accurate.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
TP-SBPY205-16 / TP-SAPY205-16
Mounting
Compact pillow block
Locking
Setscrew / eccentric collar
Representative shaft
1 in
Housing size
PY205
Center height h
29 mm
Condition of the Machine Frame
Frame-condition buying notes
The requested TP-SBPY-TP-SAPY-SERIES configuration combines corrosion-resistant thermoplastic housing with confirm locking style by exact model code in a pillow block bearing units format. The decisive fit dimensions are base bolt spacing, centre height and foot length.
The surrounding use case is typically food processing, bottling, packaging and wet-process machinery, but the final choice still depends on the actual machine position and service conditions.
Condition of the Machine Frame
A mounted bearing depends on the surface that supports it. Warped plates, repaired holes, weld distortion or uneven bases can create fit problems that a new housing cannot correct.
Inspect the frame while the old unit is still installed. Look for shims, cracked welds, elongated holes and signs that the housing has not been sitting evenly. If the equipment has been rebuilt locally, measure the current interface instead of assuming the original drawing remains accurate.
During fit-up, the replacement should contact the mounting face naturally. Tightening bolts to force a twisted housing flat can load the support in ways that are unrelated to the product itself. Correct the machine interface first where necessary, then position the bearing with the shaft line as the reference.
Record frame repairs in the maintenance history because they explain why a future replacement may not match older documentation. This is especially valuable on long-service equipment that has passed through several rebuilds.
Technical Specifications & Drawing
| Representative shaft | 1 in |
|---|---|
| Housing size | PY205 |
| Center height h | 29 mm |
| Base length a | 114 mm |
| Bolt pitch e | 87 mm |
| Base width b | 32 mm |
| S1 | 11 mm |
| S2 | 15 mm |
| Bolt slot g | 10 mm |
| Housing weight | 0.065 kg |
Frame repair dimension check

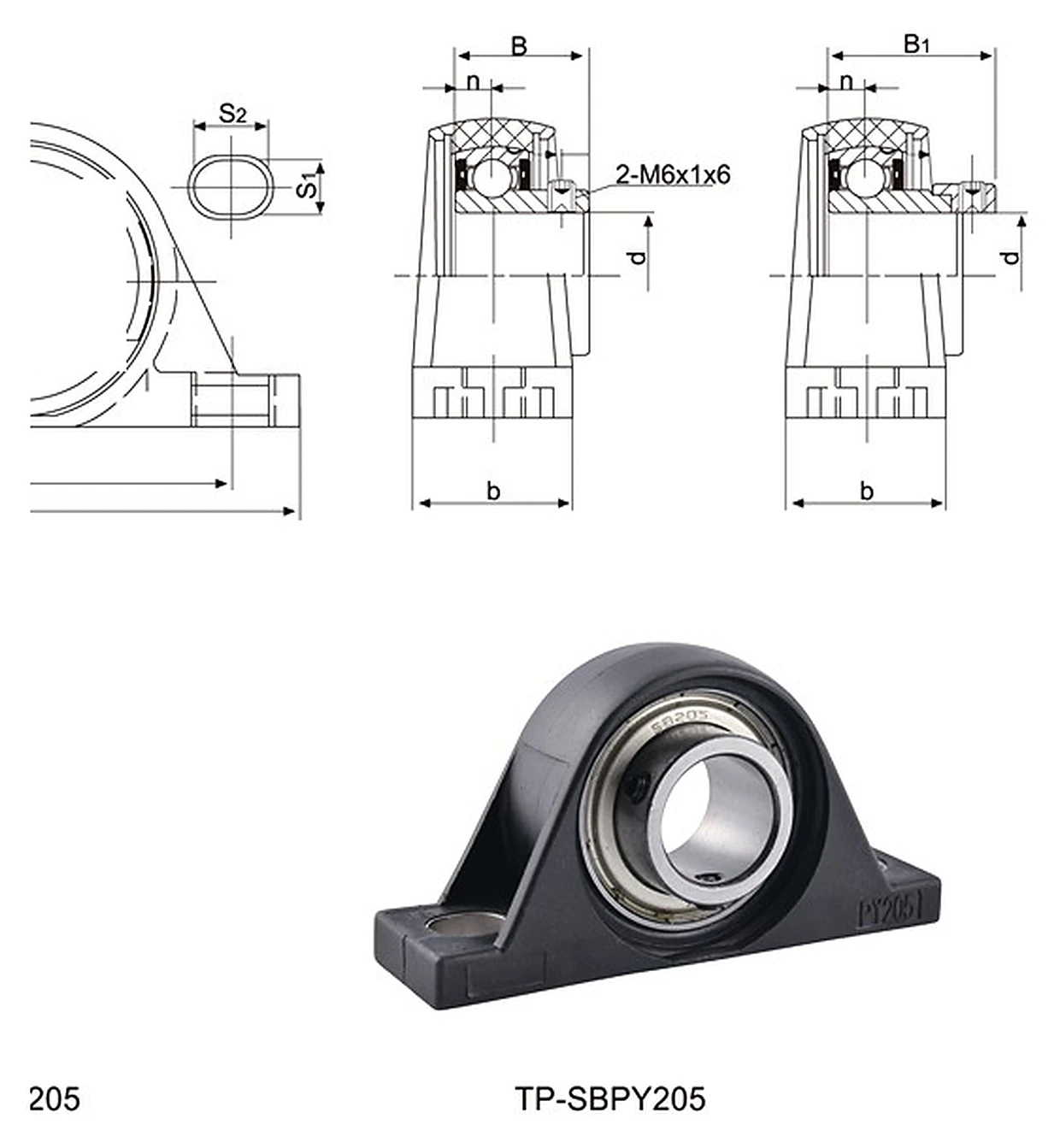

Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SBPY205-16 / TP-SAPY205-16 can be considered for food processing where its compact pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Bottling & Packaging
For bottling & packaging, the setscrew / eccentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SBPY205-16 / TP-SAPY205-16 only where the actual moisture, contamination and cleaning conditions match the selected product family.
