TP-SUETB Thermoplastic Pillow Block Bearing Units
On TP-SUETB-SERIES, the mechanical form is pillow block bearing units, the construction is corrosion-resistant thermoplastic housing, and the shaft connection is concentric locking collar. The machine-side comparison should cover base bolt spacing, centre height and foot length.
Give the support a position name in the maintenance system and record the complete model, shaft size, mounting style and any important configuration note. A photo that includes the surrounding equipment is helpful because it ties the bearing record to a recognizable location rather than to a loose spare on a workbench.
After a verified installation, store one wider machine-position photo, the confirmed base dimensions and the selected locking description together with the product code. If a later replacement changes suffix or housing detail, note the reason for the change instead of overwriting the original record. That position history makes future thermoplastic pillow-block sourcing faster and reduces the risk of treating a nearby look-alike support as automatically interchangeable.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Position Record for Repeat Maintenance
For this TP-SUETB series position, keep the installed reference tied to the actual machine location rather than filing it only under a general thermoplastic bearing family. Record the support position, shaft size, base dimensions, locking style and any surrounding guard or frame feature that affects access. A position-specific record makes the next shutdown easier because technicians can identify the spare before opening the machine.
When the unit is replaced successfully, add one wider installation photo and the confirmed drawing to the maintenance history. If a later order uses a different suffix or housing detail, document why the change was accepted. This preserves a clear chain from machine position to product choice and prevents a close-looking thermoplastic pillow block from being treated as automatically interchangeable.
Representative
TP-SUETB205
Mounting
Tapped-base pillow block
Locking
Concentric collar
Representative bore
25 mm
H
36.5 mm
A
39.7 mm
Maintenance Traceability
Traceability-focused buying notes
On TP-SUETB-SERIES, the mechanical form is pillow block bearing units, the construction is corrosion-resistant thermoplastic housing, and the shaft connection is concentric locking collar. The machine-side comparison should cover base bolt spacing, centre height and foot length.
This product family is commonly reviewed for food processing, bottling, packaging and wet-process machinery. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Maintenance Traceability
Bearing identification is most useful when it stays attached to a specific machine position. A part number stored without location context can still create confusion in plants that use several similar housings.
Give the support a position name in the maintenance system and record the complete model, shaft size, mounting style and any important configuration note. A photo that includes the surrounding equipment is helpful because it ties the bearing record to a recognizable location rather than to a loose spare on a workbench.
After a replacement has been proven, update the equipment history with the confirmed code. If the installed unit differs from the original record, explain the change briefly instead of overwriting the old information without context. That history makes future cross-reference work faster and prevents repeated uncertainty.
Traceability also improves purchasing quality. Buyers can separate requirements from different machine positions even when they use related series names, and suppliers can ask focused questions about the exact installation rather than treating every enquiry as a generic bearing request.

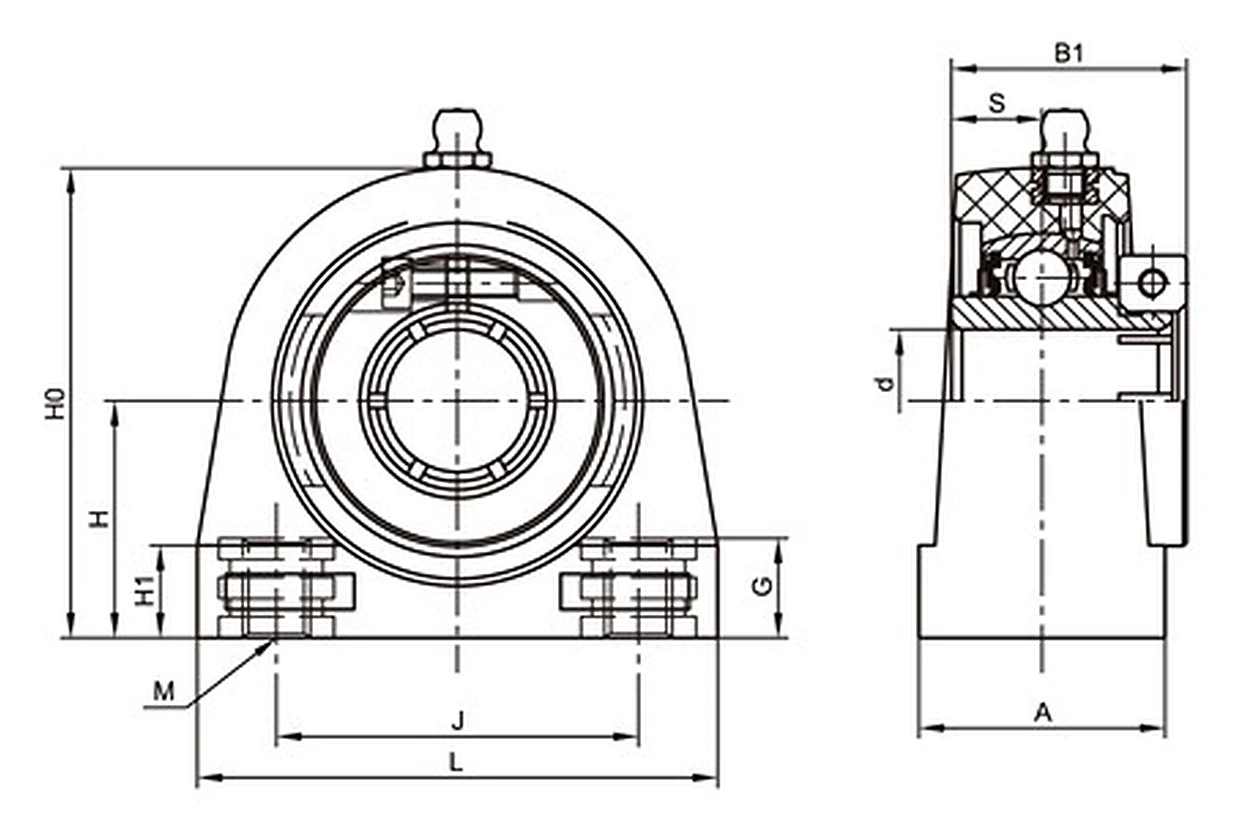

Record this drawing with the asset
Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H | 36.5 mm |
| A | 39.7 mm |
| H0 | 73.4 mm |
| J | 50.8 mm |
| L | 76.2 mm |
| Mounting thread | 3/8-16 |
| G | 14 mm |
| H1 | 13 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Weight | 0.34 kg |
Applications
Food Processing
TP-SUETB205 can be considered for food processing where its tapped-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUETB205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
