TP-SUETB Thermoplastic Pillow Block Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
TP-SUCTB Thermoplastic Pillow Block Bearing Units
TP-SUCTB Thermoplastic Pillow block bearing units is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses setscrew locking. For fit approval, check base bolt spacing, centre height and foot length.
Clean the shaft and mounting surface before fit-up. Start fixing hardware loosely, position the unit without side-loading the shaft, and only then tighten according to the machine procedure. If significant force is required to make the holes line up, stop and investigate the interface rather than using bolts to pull the housing into shape.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Installation and Commissioning Check
Commissioning-focused buying notes
TP-SUCTB Thermoplastic Pillow block bearing units is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses setscrew locking. For fit approval, check base bolt spacing, centre height and foot length.
The surrounding use case is typically food processing, bottling, packaging and wet-process machinery, but the final choice still depends on the actual machine position and service conditions.
Representative
TP-SUCTB205
Mounting
Tapped-base pillow block
Locking
Setscrew
Representative bore
25 mm
H
36.5 mm
A
39.7 mm
Installation and Commissioning Check
A correct product choice can still give a poor result if the housing is forced into position during assembly. Installation should preserve the shaft line and allow the support to sit naturally on its intended mounting face.
Clean the shaft and mounting surface before fit-up. Start fixing hardware loosely, position the unit without side-loading the shaft, and only then tighten according to the machine procedure. If significant force is required to make the holes line up, stop and investigate the interface rather than using bolts to pull the housing into shape.
Where safe and practical, check shaft movement before guards are closed. After the first controlled run, inspect seating, fastener security and any signs of movement at the locking area. These checks do not replace the machine manufacturer’s procedure; they help confirm that the chosen bearing unit has been integrated without an obvious fit-up problem.
Record any shims, spacers or special assembly notes discovered during the job. Those details are valuable the next time the same position is opened for service.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H | 36.5 mm |
| A | 39.7 mm |
| H0 | 73.4 mm |
| J | 50.8 mm |
| L | 76.2 mm |
| Mounting thread | 3/8-16 |
| B | 34.1 mm |
| S | 14.3 mm |
| Weight | 0.32 kg |

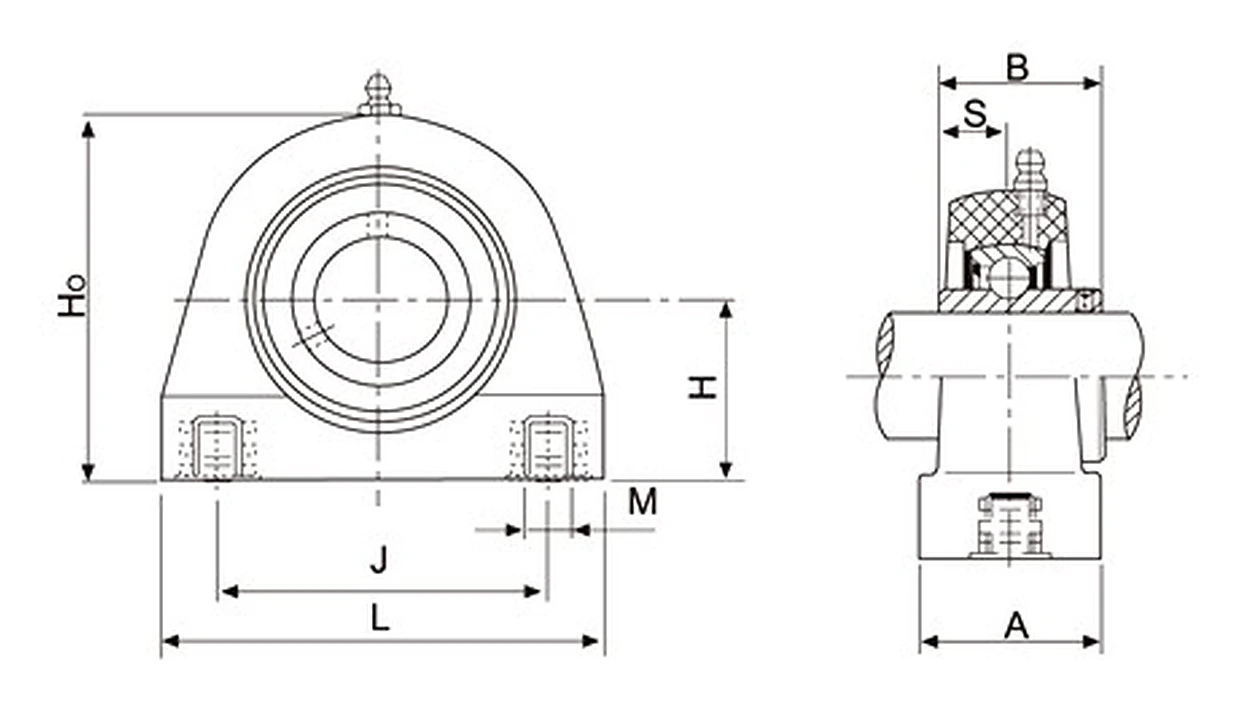

Pre-commissioning drawing check
Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUCTB205 can be considered for food processing where its tapped-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Bottling & Packaging
For bottling & packaging, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUCTB205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
Related Products
TP-SUCPA Thermoplastic Pillow Block Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
TP-SUEPA Thermoplastic Pillow Block Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
Commissioning RFQ
Include installation constraints, shaft size, mounting geometry and requested quantity for commissioning review.
TP-SUCTB Thermoplastic Pillow block bearing units is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses setscrew locking. For fit approval, check base bolt spacing, centre height and foot length.
Clean the shaft and mounting surface before fit-up. Start fixing hardware loosely, position the unit without side-loading the shaft, and only then tighten according to the machine procedure. If significant force is required to make the holes line up, stop and investigate the interface rather than using bolts to pull the housing into shape.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
