TP-SUEPA Thermoplastic Pillow Block Bearing Units
TP-SUEPA Thermoplastic Pillow block bearing units is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses concentric locking collar. For fit approval, check base bolt spacing, centre height and foot length.
Look at the direction from which a technician will approach the fixing bolts and locking hardware. A compact housing is not necessarily easy to maintain if the wrench swing is blocked or if the collar faces a permanent frame member. On crowded equipment, even a small change in housing outline can decide whether replacement requires removing several unrelated parts.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Maintenance Access in Tight Spaces
Service-access buying notes
TP-SUEPA Thermoplastic Pillow block bearing units is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses concentric locking collar. For fit approval, check base bolt spacing, centre height and foot length.
The surrounding use case is typically food processing, bottling, packaging and wet-process machinery, but the final choice still depends on the actual machine position and service conditions.
Representative
TP-SUEPA205
Mounting
Tapped-base pillow block
Locking
Concentric collar
Representative bore
25 mm
H
36.5 mm
L
84 mm
Maintenance Access in Tight Spaces
Bearing supports are often selected while the machine is open and easy to reach, then serviced years later after guards, drives, ducts or product-contact parts surround them. Access therefore belongs in the selection conversation from the start.
Look at the direction from which a technician will approach the fixing bolts and locking hardware. A compact housing is not necessarily easy to maintain if the wrench swing is blocked or if the collar faces a permanent frame member. On crowded equipment, even a small change in housing outline can decide whether replacement requires removing several unrelated parts.
Photograph the wider installation, not only the bearing close-up. That image helps buyers and application engineers understand why one mounting form is preferred. It also gives future maintenance teams a record of how the support sat before dismantling, including guard position and clearance to adjacent components.
Where possible, orient service features toward the maintenance side without altering the intended mechanical installation. After a successful job, note any special access sequence in the maintenance record so the next changeout can be planned with the correct tools and time allowance.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H | 36.5 mm |
| L | 84 mm |
| J | 56 mm |
| A | 38 mm |
| H0 | 72 mm |
| G | 12 mm |
| H1 | 14 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Bolt size | M10 |
| Weight | 0.33 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 8,540 N |
| Mode 2 | 7,010 N |
| Mode 3 | 2,850 N |

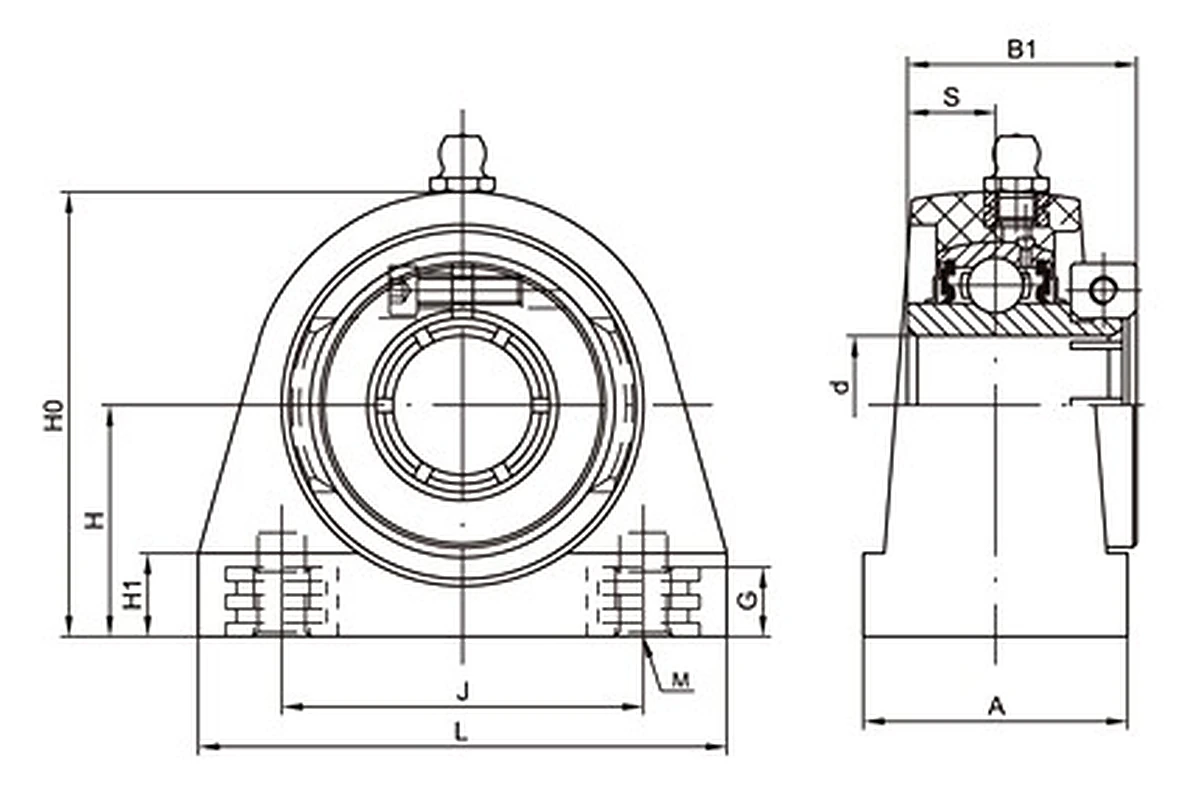

Service-clearance drawing check
Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUEPA205 can be considered for food processing where its tapped-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUEPA205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
