TP-SUEP Thermoplastic Pillow Block Bearing Units
On TP-SUEP-SERIES, the mechanical form is pillow block bearing units, the construction is corrosion-resistant thermoplastic housing, and the shaft connection is concentric locking collar. The machine-side comparison should cover base bolt spacing, centre height and foot length.
Start by reserving a clear shaft line and the envelope needed by the chosen mounting form. Leave realistic room for bolts, collars, grease access and eventual removal. A housing that fits in a CAD model can still become awkward on the shop floor if a guard blocks the fastener path or if a wrench cannot reach the locking feature after the rest of the machine is assembled.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
TP-SUEP205
Mounting
Solid-base pillow block
Locking
Concentric collar
Representative bore
25 mm
H
36.5 mm
L
140 mm
Designing the Support Into New Equipment
Design-stage selection notes
On TP-SUEP-SERIES, the mechanical form is pillow block bearing units, the construction is corrosion-resistant thermoplastic housing, and the shaft connection is concentric locking collar. The machine-side comparison should cover base bolt spacing, centre height and foot length.
This product family is commonly reviewed for food processing, bottling, packaging and wet-process machinery. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Designing the Support Into New Equipment
New-machine projects allow the bearing position to be engineered before the frame, guards and nearby components become fixed. That makes early interface planning more valuable than simply selecting a familiar housing and drawing the structure around it later.
Start by reserving a clear shaft line and the envelope needed by the chosen mounting form. Leave realistic room for bolts, collars, grease access and eventual removal. A housing that fits in a CAD model can still become awkward on the shop floor if a guard blocks the fastener path or if a wrench cannot reach the locking feature after the rest of the machine is assembled.
The design record should identify the exact product reference, the shaft size, the locking method and the mounting dimensions that locate the unit. Put these items in the bill of materials rather than relying on a generic note such as “flange bearing.” Doing so makes the first build easier to inspect and gives future maintenance teams a better starting point when the same support must be replaced.
Think about spares at the same stage. If several positions could share one product, verify the interfaces deliberately instead of assuming commonality because the shaft diameters match. A small amount of design discipline now can prevent a plant from carrying several almost-identical housings that cannot actually substitute for one another.
Machine drawing review

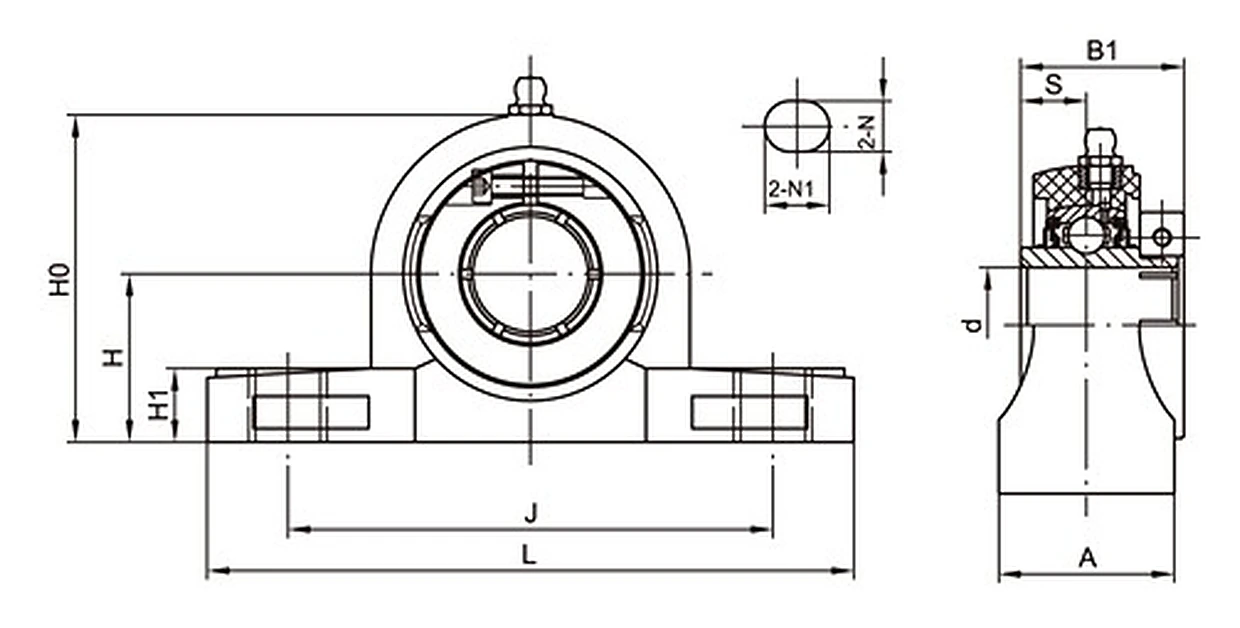

Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H | 36.5 mm |
| L | 140 mm |
| J | 105 mm |
| A | 38 mm |
| H0 | 71 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Bolt size | M10 |
| Weight | 0.35 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - load mode 1 | 13,700 N |
| Load mode 2 | 10,000 N |
| Load mode 3 | 5,100 N |
Applications
Food Processing
TP-SUEP205 can be considered for food processing where its solid-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUEP205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
