TP-SUEF Thermoplastic 4-Bolt Flange Bearing Units
The requested TP-SUEF-SERIES configuration combines corrosion-resistant thermoplastic housing with concentric locking collar in a 4-bolt flange bearing units format. The decisive fit dimensions are four-hole flange pattern, centre opening and rear clearance.
Describe the cleaning routine at the exact bearing location. A support under direct spray has a different service environment from another unit on the dry side of the same conveyor. Note whether fluid can collect beneath a base, behind a flange or around a cover. These local details are more useful than a broad statement that the machine is used in food or packaging production.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
TP-SUEF205
Mounting
4-bolt flange
Locking
Concentric collar
Representative bore
25 mm
L
95 mm
J
70 mm
Washdown and Cleaning Exposure
Washdown-focused buying notes
The requested TP-SUEF-SERIES configuration combines corrosion-resistant thermoplastic housing with concentric locking collar in a 4-bolt flange bearing units format. The decisive fit dimensions are four-hole flange pattern, centre opening and rear clearance.
The surrounding use case is typically food processing, bottling, packaging and wet-process machinery, but the final choice still depends on the actual machine position and service conditions.
Washdown and Cleaning Exposure
Bearing positions in frequently cleaned machinery are exposed to conditions that do not appear on a basic load-and-speed description. Water direction, cleaning chemicals, trapped residue and repeated wet-dry cycles all influence how the housing and sealing arrangement should be discussed with the supplier.
Describe the cleaning routine at the exact bearing location. A support under direct spray has a different service environment from another unit on the dry side of the same conveyor. Note whether fluid can collect beneath a base, behind a flange or around a cover. These local details are more useful than a broad statement that the machine is used in food or packaging production.
During replacement, inspect the old unit before cleaning it. Water tracks, corrosion marks and residue deposits often show the direction from which contamination reaches the support. That observation can help the maintenance team decide whether the next improvement should focus on housing construction, sealing, mounting drainage or simply better cleaning access.
After installation, make sure protective features are seated as intended and that the mounting surface does not create a new trap for moisture. The objective is not to claim a bearing is “washdown proof” from a general description, but to match the ordered configuration to the real sanitation practice around the machine.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| L | 95 mm |
| J | 70 mm |
| A2 | 17 mm |
| A1 | 14 mm |
| A | 28 mm |
| N | 11 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Z | 38 mm |
| Bolt size | M10 |
| Weight | 0.35 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 16,000 N |
| Mode 2 | 12,150 N |
| Mode 3 | 6,590 N |

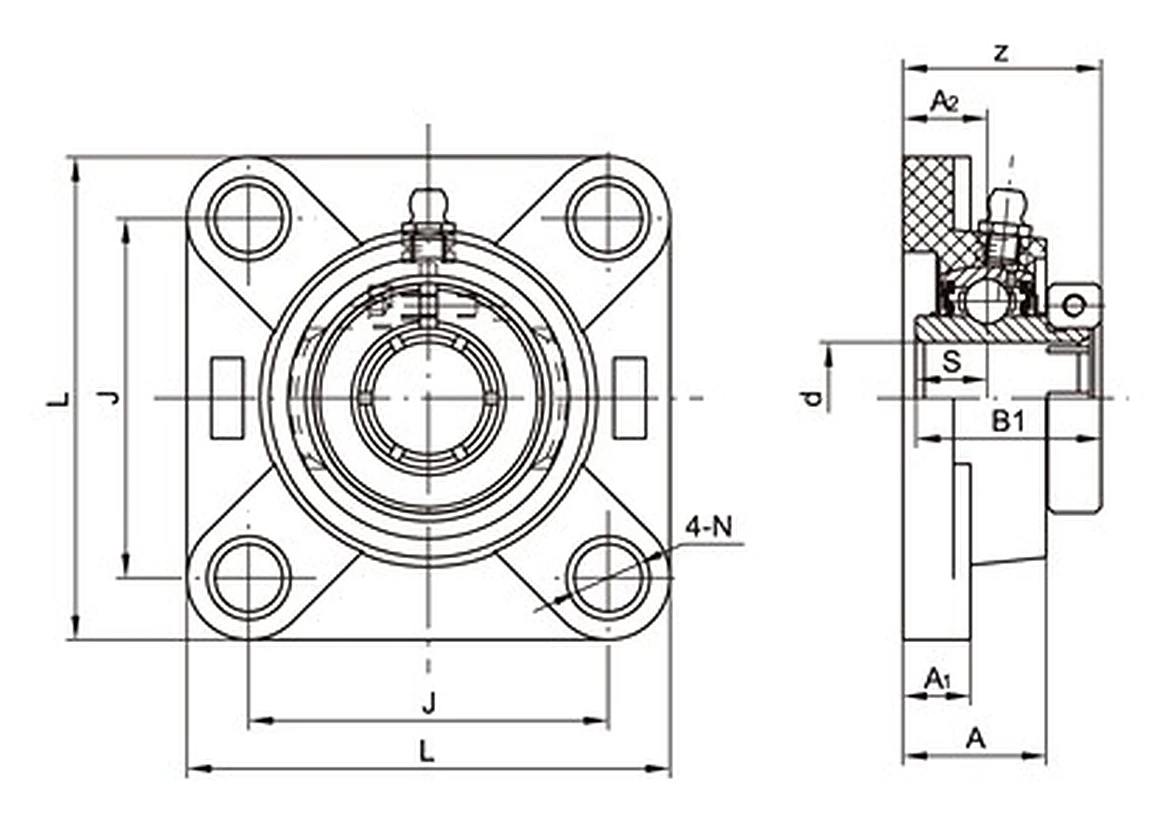

Cleaning-side drawing check
Use the drawing to compare four-hole flange pattern, centre opening and rear clearance. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUEF205 can be considered for food processing where its 4-bolt flange geometry matches the machine. Four-hole pitch, rear clearance and centre opening control the flange interface.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUEF205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
