TP-SUEFL Thermoplastic 2-Bolt Flange Bearing Units
For TP-SUEFL Thermoplastic 2-bolt flange bearing units, review the complete mounted interface: two-hole spacing, flange length and shaft centre position, then the concentric locking collar shaft connection. The product construction is corrosion-resistant thermoplastic housing.
Measure from stable machine datums instead of from worn edges or old paint marks. On base-mounted units, the shaft centre and foot-hole locations usually control fit. On flanged units, the bolt pattern and plate opening become more important. Take-up and cartridge arrangements have their own locating dimensions. The drawing should therefore be read according to the mounting form, not as a generic list of numbers.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Mounting Pattern Control
Mounting-geometry buying notes
For TP-SUEFL Thermoplastic 2-bolt flange bearing units, review the complete mounted interface: two-hole spacing, flange length and shaft centre position, then the concentric locking collar shaft connection. The product construction is corrosion-resistant thermoplastic housing.
This product family is commonly reviewed for food processing, bottling, packaging and wet-process machinery. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Representative
TP-SUEFL205
Mounting
2-bolt flange
Locking
Concentric collar
Representative bore
25 mm
H
131 mm
J
99 mm
Mounting Pattern Control
A mounted bearing can have the correct bore and still be unusable if its fixing pattern does not match the machine. For procurement, bolt centres, centre height and housing envelope are often approval dimensions rather than secondary drawing details.
Measure from stable machine datums instead of from worn edges or old paint marks. On base-mounted units, the shaft centre and foot-hole locations usually control fit. On flanged units, the bolt pattern and plate opening become more important. Take-up and cartridge arrangements have their own locating dimensions. The drawing should therefore be read according to the mounting form, not as a generic list of numbers.
When a frame has elongated holes or field modifications, document them. Pulling a new housing into position with the fixing bolts can twist the support or move the shaft away from its intended line. It is better to resolve the machine interface first and allow the bearing unit to seat naturally against the mounting surface.
Store the confirmed interface dimensions with the product reference after a successful replacement. This makes the next purchase easier and helps distinguish similar models whose main difference is hidden in the mounting geometry.

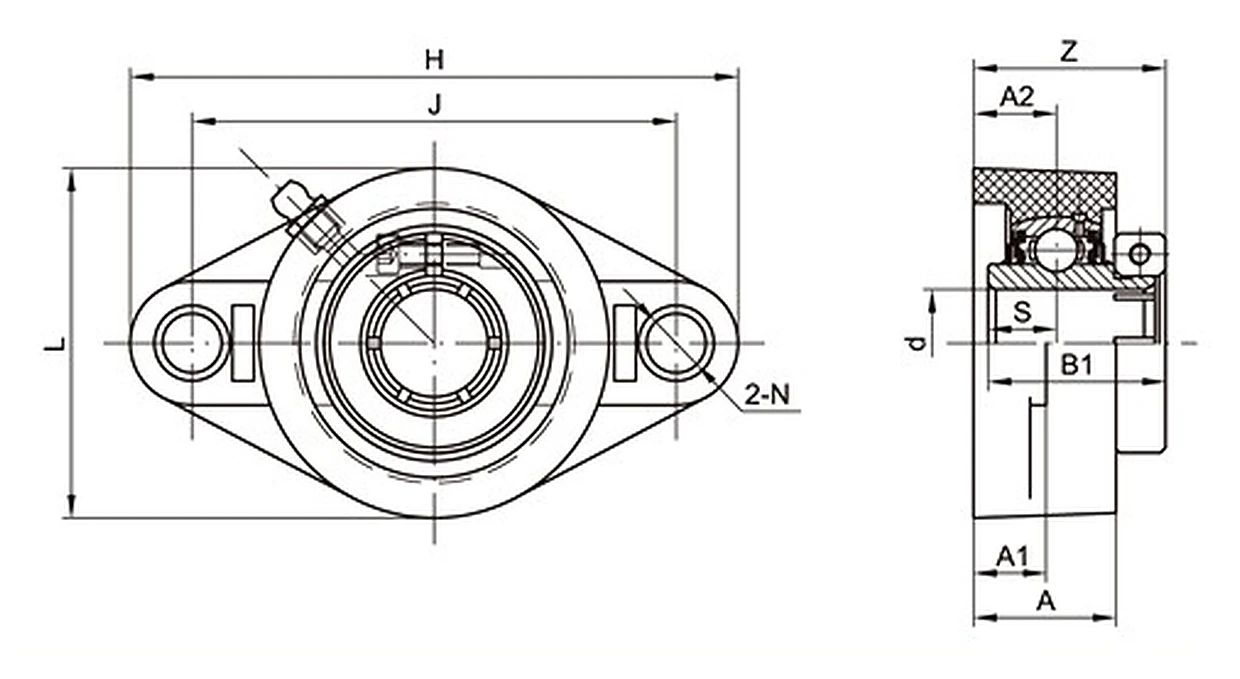

Bolt-pattern drawing review
Use the drawing to compare two-hole spacing, flange length and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H | 131 mm |
| J | 99 mm |
| A2 | 17 mm |
| A1 | 14 mm |
| A | 29 mm |
| N | 11 mm |
| L | 69 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Z | 38 mm |
| Bolt size | M10 |
| Weight | 0.32 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 12,554 N |
| Mode 2 | 15,093 N |
| Mode 3 | 5,310 N |
Applications
Food Processing
TP-SUEFL205 can be considered for food processing where its 2-bolt flange geometry matches the machine. Two-hole spacing and flange thickness should be checked before replacing an older support.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUEFL205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
