TP-SUEFB Thermoplastic Flange Bracket Bearing Units
TP-SUEFB-SERIES belongs to the thermoplastic housed units range. It is supplied as a flange bracket bearing units with corrosion-resistant thermoplastic housing and concentric locking collar; compare bracket outline, bolt locations and shaft offset before approval.
Identify the dimensions that locate the support: bore, centreline, fixing pattern, outside diameter, bracket offset or take-up guide dimensions, depending on the product form. Read the stated values; do not scale the illustration. A picture can be resized for presentation and should never be treated as a measurement source.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
TP-SUEFB205
Mounting
Flange bracket
Locking
Concentric collar
Representative bore
25 mm
H0
121 mm
H
46 mm
Drawing-Led Model Approval
Drawing-led buying notes
TP-SUEFB-SERIES belongs to the thermoplastic housed units range. It is supplied as a flange bracket bearing units with corrosion-resistant thermoplastic housing and concentric locking collar; compare bracket outline, bolt locations and shaft offset before approval.
Applications include food processing, bottling, packaging and wet-process machinery. Treat that as context only; dimensions and environment at the real bearing point control the final selection.

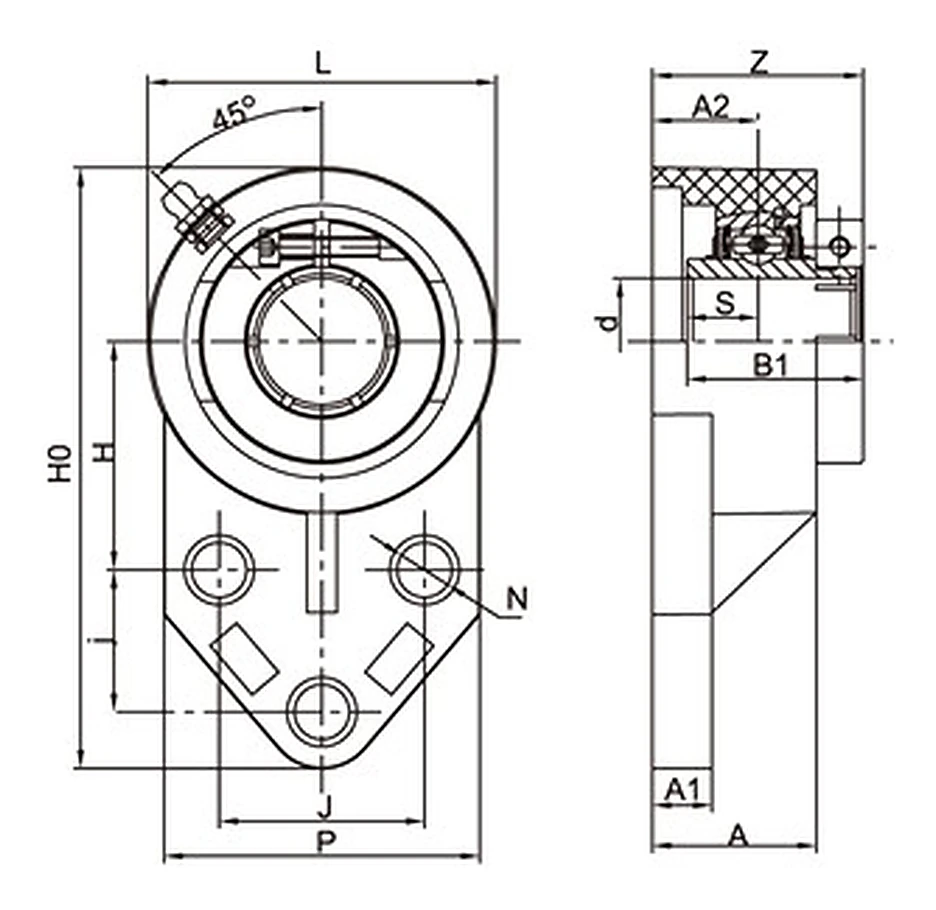

Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H0 | 121 mm |
| H | 46 mm |
| J | 41.3 mm |
| j | 28.6 mm |
| A2 | 21.3 mm |
| A1 | 12.3 mm |
| A | 33 mm |
| N | 11 mm |
| L | 70 mm |
| P | 63 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Z | 42.4 mm |
| Bolt size | M10 |
| Weight | 0.33 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 9,100 N |
| Mode 2 | 11,100 N |
| Mode 3 | 2,800 N |
Drawing-Led Model Approval
Product images are useful for recognition, but drawings are the better approval tool when several bearing units share the same general appearance. The drawing shows the interfaces that actually determine whether the unit belongs on the machine.
Identify the dimensions that locate the support: bore, centreline, fixing pattern, outside diameter, bracket offset or take-up guide dimensions, depending on the product form. Read the stated values; do not scale the illustration. A picture can be resized for presentation and should never be treated as a measurement source.
For existing equipment, mark the measured machine values directly on a copy of the drawing or provide a separate sketch. This creates a simple comparison between the proposed model and the installation. It is especially useful when the frame has been modified and the original machine drawing is no longer fully representative.
Save the approved drawing with the spare-parts record. Future buyers can then verify a substitute against the same dimensional reference instead of restarting the identification process from photographs.
Use stated dimensions only
Use the drawing to compare bracket outline, bolt locations and shaft offset. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUEFB205 can be considered for food processing where its flange bracket geometry matches the machine. Bracket hole pattern and offset influence how the bearing sits against the support plate.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUEFB205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
