TP-SUCFB Thermoplastic Flange Bracket Bearing Units
For TP-SUCFB Thermoplastic Flange bracket bearing units, review the complete mounted interface: bracket outline, bolt locations and shaft offset, then the setscrew locking shaft connection. The product construction is corrosion-resistant thermoplastic housing.
Before removing the old unit, note where surface attack is concentrated. Compare the housing, exposed fasteners, shaft area and any cover. The pattern can show whether moisture is pooling under the support, reaching the shaft entry from one direction or remaining after cleaning. This is more actionable than a general statement that the application is “corrosive.”
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Mapping Local Corrosion Risk
Corrosion-focused buying notes
For TP-SUCFB Thermoplastic Flange bracket bearing units, review the complete mounted interface: bracket outline, bolt locations and shaft offset, then the setscrew locking shaft connection. The product construction is corrosion-resistant thermoplastic housing.
This product family is commonly reviewed for food processing, bottling, packaging and wet-process machinery. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Representative
TP-SUCFB205
Mounting
Flange bracket
Locking
Setscrew
Representative bore
25 mm
H0
121 mm
H
46 mm
Mapping Local Corrosion Risk
Corrosion exposure is usually local rather than uniform across a machine. A bearing close to spray, drainage or a chemical cleaning path may age very differently from another support on the same line.
Before removing the old unit, note where surface attack is concentrated. Compare the housing, exposed fasteners, shaft area and any cover. The pattern can show whether moisture is pooling under the support, reaching the shaft entry from one direction or remaining after cleaning. This is more actionable than a general statement that the application is “corrosive.”
Mounting details can contribute to the problem. A base that traps liquid or a flange with poor drainage can keep a support wet long after the rest of the machine has dried. When the frame is being repaired, use the opportunity to improve the interface rather than expecting housing material alone to solve every corrosion issue.
Keep periodic photos in the maintenance history. Comparing the same position over time helps buyers distinguish normal staining from a recurring environmental problem and gives future RFQs a clearer description of the actual exposure.
Corrosion-position drawing note

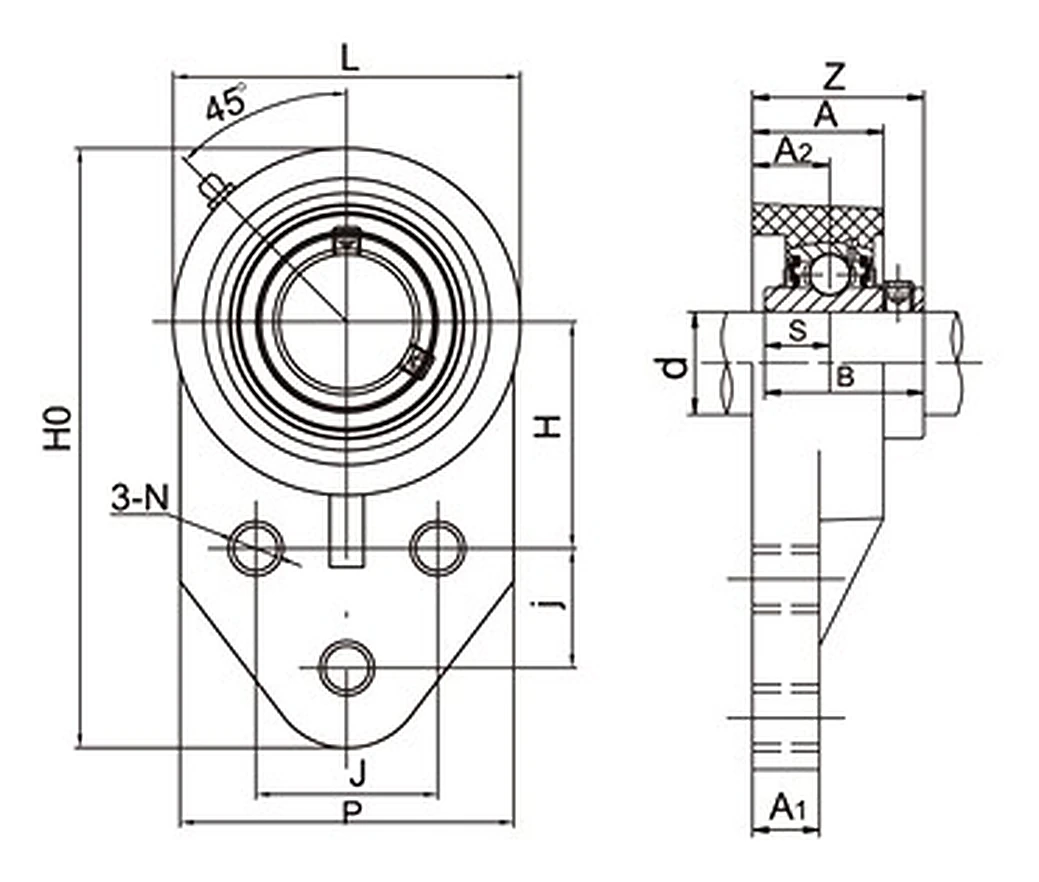

Use the drawing to compare bracket outline, bolt locations and shaft offset. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| H0 | 121 mm |
| H | 46 mm |
| J | 41.3 mm |
| j | 28.6 mm |
| A2 | 21.3 mm |
| A1 | 12.3 mm |
| A | 33 mm |
| N | 11 mm |
| L | 70 mm |
| P | 63 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| Z | 41.1 mm |
| Bolt size | M10 |
| Weight | 0.30 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 9,100 N |
| Mode 2 | 11,100 N |
| Mode 3 | 2,800 N |
Applications
Food Processing
TP-SUCFB205 can be considered for food processing where its flange bracket geometry matches the machine. Bracket hole pattern and offset influence how the bearing sits against the support plate.
Bottling & Packaging
For bottling & packaging, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUCFB205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
