TP-SUET Thermoplastic Take-Up Bearing Units
Buyers evaluating TP-SUET Thermoplastic Take-up bearing units should treat it as a take-up bearing units rather than a bore-only bearing reference. Its construction is corrosion-resistant thermoplastic housing, with concentric locking collar on the shaft.
Use the complete approved reference from quotation through receiving. If the old label is damaged, do not invent the missing characters from appearance. Combine the readable part of the code with bore measurement, mounting dimensions and photos of the shaft-locking area. This produces a more reliable cross-reference than guessing a suffix because the housing “looks the same.”
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Full-Code and Suffix Discipline
Code-control buying notes
Buyers evaluating TP-SUET Thermoplastic Take-up bearing units should treat it as a take-up bearing units rather than a bore-only bearing reference. Its construction is corrosion-resistant thermoplastic housing, with concentric locking collar on the shaft.
Applications include food processing, bottling, packaging and wet-process machinery. Treat that as context only; dimensions and environment at the real bearing point control the final selection.
Representative
TP-SUET205
Mounting
Take-up unit
Locking
Concentric collar
Representative bore
25 mm
L
99 mm
A2
27.5 mm

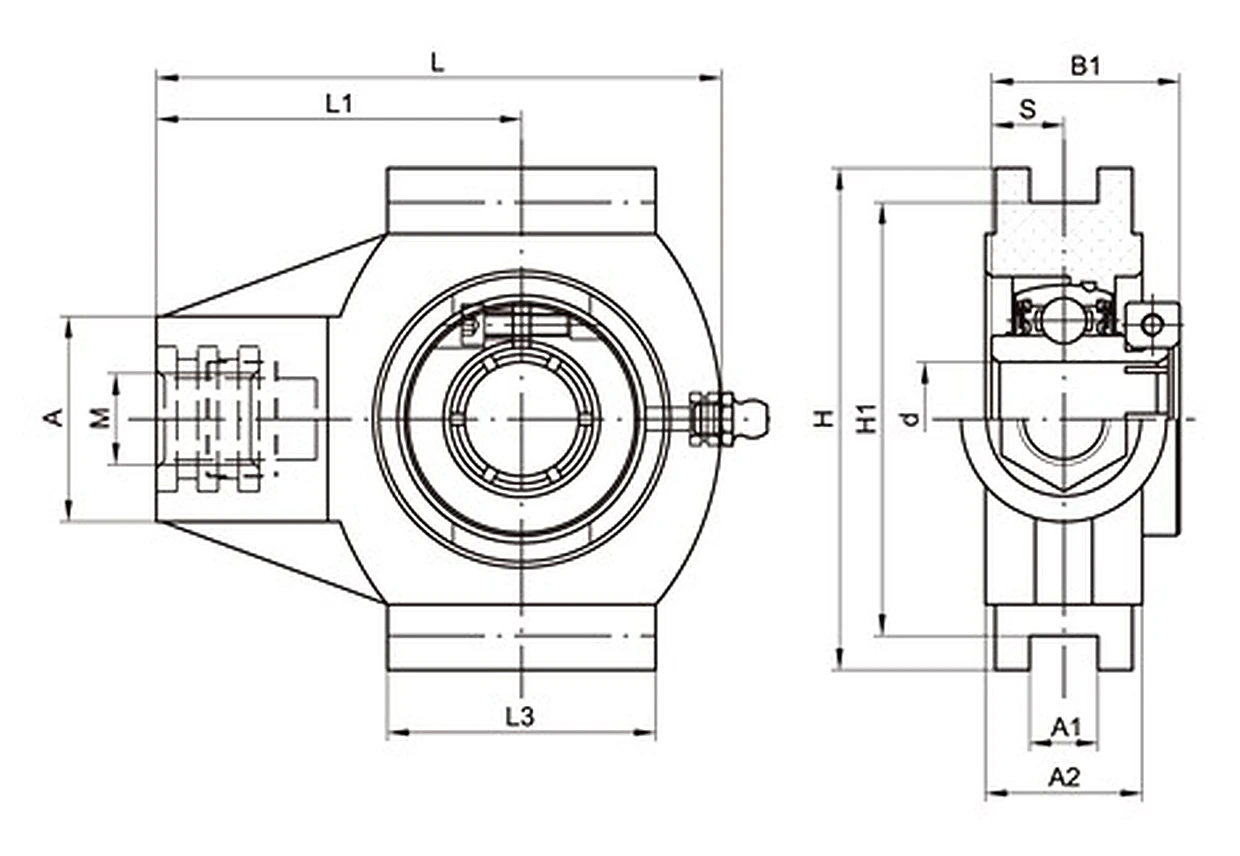

Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| L | 99 mm |
| A2 | 27.5 mm |
| A1 | 12 mm |
| L1 | 64 mm |
| H | 88 mm |
| H1 | 76 mm |
| Thread M | M16 |
| A | 36 mm |
| L3 | 47 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Weight | 0.35 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 15,500 N |
| Mode 2 | 4,530 N |
| Mode 3 | 10,350 N |
| Mode 4 | 45,300 N |
Full-Code and Suffix Discipline
Industrial bearing families often contain several versions whose visible shape is almost identical. A suffix can represent locking, sealing, housing detail or another configuration change that is easy to lose when purchase documents use only the broad family name.
Use the complete approved reference from quotation through receiving. If the old label is damaged, do not invent the missing characters from appearance. Combine the readable part of the code with bore measurement, mounting dimensions and photos of the shaft-locking area. This produces a more reliable cross-reference than guessing a suffix because the housing “looks the same.”
Receiving inspection should compare the delivered configuration with the purchase description before the machine is dismantled. Finding a code discrepancy at the warehouse is inconvenient; finding it after the old support has been removed is much more disruptive.
After the first verified installation, update the maintenance system with the exact reference that worked. This creates a controlled trail for future orders and helps inventory teams keep nearby variants separated.
Suffix and drawing confirmation
Use the drawing to compare take-up guide width, adjustment travel and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUET205 can be considered for food processing where its take-up unit geometry matches the machine. Guide width and adjustment travel must remain compatible with the tensioning frame.
Bottling & Packaging
For bottling & packaging, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUET205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
