TP-SUCT Thermoplastic Take-Up Bearing Units
The requested TP-SUCT-SERIES configuration combines corrosion-resistant thermoplastic housing with setscrew locking in a take-up bearing units format. The decisive fit dimensions are take-up guide width, adjustment travel and shaft centre position.
Create a small comparison sheet for candidate common spares. Include bore, locking style, mounting dimensions, housing form and the service environment at each position. If any of those items differ materially, keep the substitution under engineering control instead of letting stores make the decision during a shutdown.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
TP-SUCT205
Mounting
Take-up unit
Locking
Setscrew
Representative bore
25 mm
L
99 mm
A2
27.5 mm
Spare-Parts Consolidation
Spare-planning buying notes
The requested TP-SUCT-SERIES configuration combines corrosion-resistant thermoplastic housing with setscrew locking in a take-up bearing units format. The decisive fit dimensions are take-up guide width, adjustment travel and shaft centre position.
The surrounding use case is typically food processing, bottling, packaging and wet-process machinery, but the final choice still depends on the actual machine position and service conditions.
Spare-Parts Consolidation
Plants often try to reduce the number of bearing units held in stores, but visual similarity is not enough to justify consolidation. One stocked item should cover multiple positions only after the machine interfaces have been compared carefully.
Create a small comparison sheet for candidate common spares. Include bore, locking style, mounting dimensions, housing form and the service environment at each position. If any of those items differ materially, keep the substitution under engineering control instead of letting stores make the decision during a shutdown.
Where a common spare is approved, document the machines and positions it actually covers. This avoids the opposite problem: a later buyer assuming that an item standardized for two locations must also fit a third because the shaft diameter is the same.
Use replacement history as feedback. If one position consumes spares much faster than similar locations, the answer may be application, alignment or contamination rather than simply increasing inventory. A clean spare-parts program links purchasing records with maintenance observations.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| L | 99 mm |
| A2 | 27.5 mm |
| A1 | 12 mm |
| L1 | 64 mm |
| H | 88 mm |
| H1 | 76 mm |
| Thread M | M16 |
| A | 36 mm |
| L3 | 47 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| Weight | 0.34 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - mode 1 | 15,500 N |
| Mode 2 | 4,530 N |
| Mode 3 | 10,350 N |
| Mode 4 | 45,300 N |
Common-spare dimension check

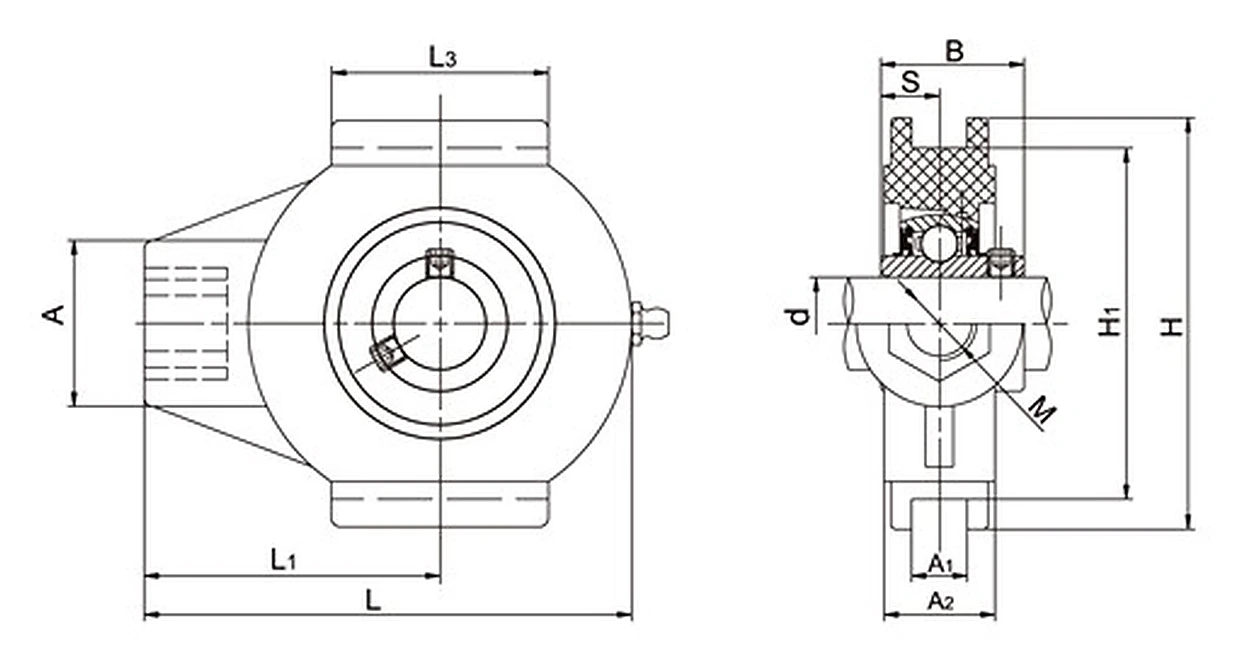

Use the drawing to compare take-up guide width, adjustment travel and shaft centre position. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUCT205 can be considered for food processing where its take-up unit geometry matches the machine. Guide width and adjustment travel must remain compatible with the tensioning frame.
Bottling & Packaging
For bottling & packaging, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUCT205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
