UEFT200 Series 2-Bolt Flange Bearing Units — Inch-Based Housing, Concentric Collar Locking
The UEFT200 series combines the inch-based FT oval flange housing of the UCFT200 with the concentric locking collar insert of the UEFL200 metric series. This pairing targets the specific case where an inch-standard machine frame dictates the use of an FT-format oval flange housing, and the operating conditions — high shaft speed, bidirectional rotation, or dynamic balance requirements — make setscrew locking inadequate. The UEFT200 is therefore the inch-housing equivalent of the metric UEFL200: same locking principle, same 360° uniform contact geometry, same bidirectional capability, but in the inch-dimension housing format that fits existing North American and British machine frame hole patterns without re-drilling.
Concentric Collar in an Inch-Housing Oval Flange
The UE series concentric collar insert applies 360° uniform clamping pressure to the shaft with no eccentric mass. Unlike a setscrew (which concentrates clamping force at two points) or an eccentric collar (which introduces a small imbalance mass), the concentric collar's symmetric geometry produces no net radial force at any rotation speed. This makes the UEFT200 appropriate for bracket-mounted fan shafts, winding machine spindle supports, and servo-indexed reversing drives in inch-standard machinery where both the frame bolt pattern and the operating conditions are constraints that must be satisfied simultaneously.
The concentric collar releases symmetrically in both directions, so the UEFT200 is fully bidirectional — it can be used on reversing drives, jogging drives, and oscillating shafts without the directional constraint of the eccentric collar. The B1 dimension (collar insert width) is slightly wider than the UCFT200 B at equivalent bore sizes: verify axial clearance before retrofitting into a position previously holding a UCFT200 setscrew unit.
Key Features
🌎
Inch-Based Housing Dimensions
H, J, A2, A1, A, L values correspond to inch-fraction equivalents — same as UCFT200. Direct replacement in inch-standard frame hole patterns. No re-drilling required.
🔄
Concentric 360° Locking Collar
Uniform shaft contact, no eccentric mass, no imbalance force at any speed. Releases symmetrically — fully bidirectional. Correct choice for high-speed and reversing inch-housing oval flange installations.
↔
Wide Inner Ring UE Insert
Spherical OD accommodates 2° misalignment. B1 slightly wider than UCFT200 B — verify axial clearance when retrofitting.
📏
Metric and Inch Bore
20–55 mm metric bore with inch bore variants per housing size. (Starts at 20 mm / UEFT204 — no UEFT201–203.)
☑
Solid Base Option
Hollow base standard. Solid base (SB) on request.
✅
ANSI / BS / AS Standards
Inch housing dimensions per ANSI, British Standards, and Australian Standards. Drop-in replacement for UE-insert FT-pattern oval flange units.

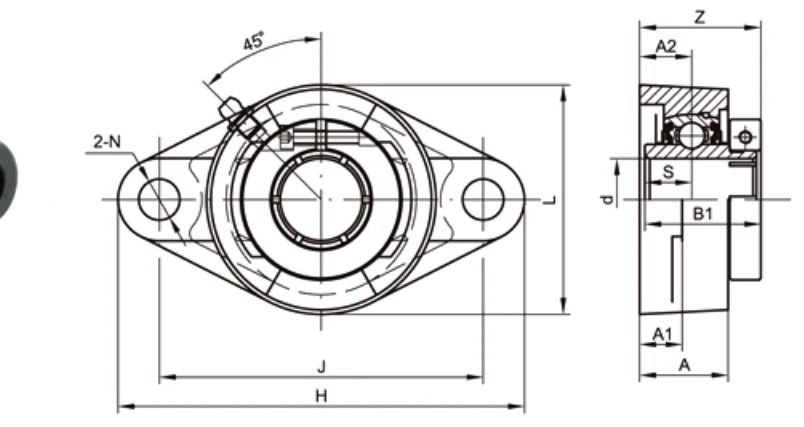

Full Dimensional Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A1 mm | A mm | N mm | L mm | B1 mm | S mm | Z mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UEFT204 / 204-12 | 20 | 3/4 | 112 | 89.7 | 14.3 | 11 | 25 | 10.5 | 60 | 33 | 12.7 | 34.6 | M8 | 0.51 |
| UEFT205 / 205-13~16 | 25 | 13/16~1 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.4 | 14.3 | 36.9 | M10 | 0.72 |
| UEFT206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 39.8 | 15.9 | 41.8 | M10 | 1.04 |
| UEFT207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 43.9 | 17.5 | 45.5 | M12 | 1.48 |
| UEFT208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 50.2 | 19 | 52.2 | M12 | 1.86 |
| UEFT209 / 209-26~28 | 45 | 1-5/8~1-3/4 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 50.2 | 19 | 53 | M14 | 2.14 |
| UEFT210 / 210-29~32 | 50 | 1-13/16~2 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 52.6 | 19 | 55.8 | M14 | 2.26 |
| UEFT211 / 211-32~35 | 55 | 2~2-3/16 | 216 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 56.6 | 22.2 | 59.8 | M16 | 3.31 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
All H, J, A2, A1, A, L are inch-fraction equivalents in mm. B1 = concentric collar insert width (wider than UCFT200 B at same bore — verify axial clearance). UEFT range starts at 20 mm (UEFT204). For setscrew locking in the same FT housing, see the UCFT200 series.
Applications
🌎
High-Speed Inch-Standard Oval Flange Mounts
Oval flange shaft supports in inch-frame machines where shaft speeds exceed setscrew retention limits and the FT housing must fit existing frame holes.
⇄
Reversing Drives in Inch-Standard Machinery
Servo-indexed, jogging, and reciprocating drive shaft oval flange positions in inch-frame equipment where shaft reversal makes setscrew or eccentric collar locking inadequate.
🌀
Fan & Blower Inch-Frame Supports
Centrifugal fan shaft oval flange supports in inch-standard fan units where shaft speed and the FT housing format are both fixed design parameters.
⚙
Centrifuge & Separator Inch Oval Flanges
Centrifuge shaft oval flange supports in inch-frame equipment where dynamic balance and bidirectional retention are both required and the FT housing must fit existing hole positions.
🧵
Textile & Winding Inch-Frame Spindles
High-speed winding machine spindle oval flange supports in inch-standard machines where shaft balance is critical and the UEFT200 concentric collar eliminates setscrew imbalance.
🔄
Upgrade UCFT200 to UEFT200 on Reversing Drives
Drop-in insert upgrade from UCFT200 where reversal causes setscrew loosening. Housing H, J, bolt positions unchanged — replace insert bearing only.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Frequently Asked Questions
Difference between UEFT200 and UCFT200?
UEFT200 = concentric collar (high speed and reversing). UCFT200 = setscrew. Same inch FT housing. Replace insert only to upgrade.
Difference between UEFT200 and UEFL200?
UEFT200 = inch housing for inch-standard frame holes. UEFL200 = metric housing. Same UE concentric collar insert in both.
Can UEFT200 be used on a reversing drive?
Yes — concentric collar is fully bidirectional, no directional dependency.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for UEFT200 Series
Provide shaft diameter, operating speed (rpm), rotation direction, bore type, and quantity. Contact us.
