UCFT200 Series 2-Bolt Flange Bearing Units — Inch-Based Housing, Setscrew Locking
The UCFT200 series provides a standard duty cast iron two-bolt oval flange bearing unit with setscrew locking in an inch-based housing format. All H, J, A2, A1, A, and L dimensions correspond to inch-fraction equivalents rather than the rounded metric values of the UCFL200, making the UCFT200 the direct bolt-in replacement for inch-standard oval flange setscrew bearings in North American (ANSI), British (BS), and Australian Standards machinery where re-drilling the mounting panel to metric spacing is not practical.
The UC series wide inner ring insert bearing and dual 120° setscrew locking are identical in function to the metric UCFL200 equivalent, providing the same self-aligning spherical OD, axial float capacity, and bidirectional retention. The difference is entirely in the housing dimensions: a UCFT204 (20 mm bore) has J = 89.7 mm versus UCFL204 J = 90 mm. That 0.3 mm difference is significant when existing machine frame holes are drilled to the inch-fraction position and a metric housing would require slot-drilling to fit.
Inch Housing vs Metric Housing — When It Matters
Inch-standard oval flange bearings (FT series) originate from North American and British engineering practice where bolt-hole positions, housing heights, and overall lengths are all derived from inch fractions. When an OEM specifies a replacement bearing by a North American part number, or when a legacy machine carries drilled holes at inch-standard spacing, specifying UCFT200 eliminates the need for slot drilling, oversized holes, or spacer plates to adapt a metric UCFL200 to the existing hole pattern. For new machines designed in metric, UCFL200 is the standard choice — UCFT200 addresses the retrofit and replacement market.
Key Features
🌎
Inch-Based Housing Dimensions
H, J, A2, A1, A, L values correspond to inch-fraction equivalents. Direct replacement for inch-standard oval flange setscrew bearings without re-drilling existing frame holes.
🔧
Dual Setscrew Locking at 120°
Same UC series wide inner ring insert and 120° setscrew geometry as UCFL200. Bidirectional retention at standard operating speeds. Metric and inch bore inserts available.
↔
Self-Aligning Wide Inner Ring Insert
Spherical OD compensates up to 2° misalignment between shaft and housing face. Axial float accommodates thermal shaft expansion.
📏
Metric and Inch Bore
12–55 mm metric bore with inch bore variants (201-8, 202-9, …) per housing size.
☑
End Caps Available
SM (closed one side) or S (open) pressed steel end caps available on request.
✅
ANSI / BS / AS Standards
Inch housing dimensions per ANSI, British Standards, and Australian Standards oval flange bearing conventions. Drop-in replacement for FT-pattern oval flanges.

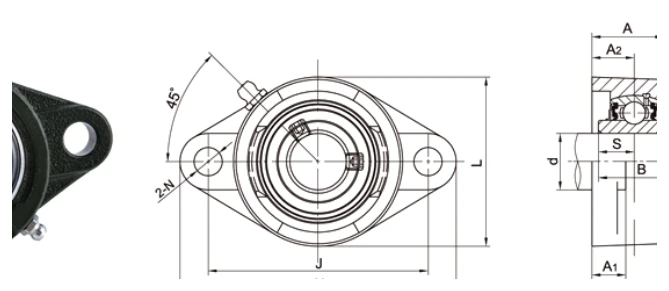

Full Dimensional Specifications
| Unit No. | d mm | d inch | H mm | J mm | A2 mm | A1 mm | A mm | N mm | L mm | B mm | S mm | Z mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFT201~203 / 201-8~203-11 | 12~17 | 1/2~11/16 | 99 | 76.2 | 15.1 | 11 | 25 | 10.5 | 54 | 27.4 | 11.5 | 31 | M8 | 0.40 |
| UCFT204 / 204-12 | 20 | 3/4 | 112 | 89.7 | 14.3 | 11 | 25 | 10.5 | 60 | 31 | 12.7 | 32.6 | M8 | 0.45 |
| UCFT205 / 205-13~16 | 25 | 13/16~1 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 34.1 | 14.3 | 35.6 | M10 | 0.66 |
| UCFT206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 38.1 | 15.9 | 40.1 | M10 | 0.86 |
| UCFT207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 42.9 | 17.5 | 44.5 | M12 | 1.31 |
| UCFT208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 49.2 | 19 | 51.2 | M12 | 1.53 |
| UCFT209 / 209-26~28 | 45 | 1-5/8~1-3/4 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 49.2 | 19 | 52 | M14 | 1.73 |
| UCFT210 / 210-29~32 | 50 | 1-13/16~2 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 51.6 | 19 | 54.8 | M14 | 2.28 |
| UCFT211 / 211-32~35 | 55 | 2~2-3/16 | 216 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 55.6 | 22.2 | 58.8 | M16 | 2.72 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
All H, J, A2, A1, A, L are inch-fraction equivalents in mm. B = setscrew insert width. Solid base: suffix SB. For concentric collar locking in the same FT housing, see the UEFT200 series.
Applications
🌎
North American Inch-Standard Machinery
Direct replacement for FT-pattern setscrew bearings in equipment built to ANSI inch-standard oval flange dimensions where existing frame holes match inch-fraction J spacing.
⚒
British & Commonwealth Inch Equipment
Replacement bearings in legacy British and Australian industrial equipment where BS inch-standard oval flange setscrew bearings are specified and inch housing dimensions are required for direct fit.
🌿
North American Agricultural Equipment
Oval flange shaft supports on North American farm equipment built to ASABE inch-standard frame designs where bolt-hole patterns match UCFT200 J dimensions.
⚙
Construction Equipment Oval Flanges
Oval flange shaft supports on construction equipment built to inch-standard frame designs where the bolt pattern matches UCFT200 housing dimensions.
🔄
OEM Spare Parts Programmes
Replacement bearing supply for OEM spare parts programmes where the original part number is an inch-standard FT-series setscrew oval flange unit and metric housings are not interchangeable.
▶
Light Conveyor Inch-Frame Supports
Drive shaft and idler shaft oval flange supports on conveyors built to inch-standard frame designs where the UCFT200 allows direct replacement without frame modification.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Frequently Asked Questions
Difference between UCFT200 and UCFL200?
UCFT200 = inch-based housing for direct fit into inch-standard frame holes. UCFL200 = metric housing. Same UC insert and setscrew locking in both.
Difference between UCFT200 and UEFT200?
UCFT200 = setscrew. UEFT200 = concentric collar. Same inch FT housing. Replace insert only to upgrade.
Can UCFT200 be used on a reversing drive?
Yes — setscrew is bidirectional. For high-speed reversing drives, upgrade to UEFT200 concentric collar.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for UCFT200 Series
Provide shaft diameter, bore type (metric or inch), quantity, and confirm the frame hole pattern requires inch-standard FT housing dimensions. Contact us.
