SALP200 & SBLP200 Series Pillow Block Bearing Units — Light Duty, Compact Housing
The SALP200 and SBLP200 series target the lower end of the pillow block load range — shaft diameters from 12 to 35 mm, light radial loads, and installations where the mounting footprint must be as small as possible. SALP uses a SA eccentric locking collar; SBLP uses setscrew locking — same housing, two locking options, covering single-direction and bidirectional drives respectively.
SALP vs SBLP — Same Housing, Different Retention
The SALP200 and SBLP200 use an identical cast iron housing. The difference is the insert bearing: SALP200 carries a SA series eccentric locking collar insert, while SBLP200 carries a standard setscrew insert. This means the two series are dimensionally interchangeable at the housing level, and a machine can be upgraded from setscrew (SBLP) to eccentric collar (SALP) on a unidirectional drive without changing any mounting hardware — simply swap the insert bearing and locking collar.
Key Features
▶
Two Locking Styles, One Housing
SALP = eccentric collar for unidirectional drives. SBLP = setscrew for bidirectional. Identical housing allows switching between locking styles without modifying the mounting structure.
▼
Compact Lightweight Design
Significantly lighter than equivalent UCP200 bore sizes. Smaller housing footprint suits compact machine frames.
↔
Self-Aligning Insert Bearing
Spherical OD on insert accommodates up to 2° misalignment. Same alignment-compensation capability as heavier series.
⚙
Cast Iron Housing
Grey cast iron construction despite the light-duty designation. Corrosion resistance and surface hardness maintained.
💧
Grease Fitting Standard
Grease fitting at 45° standard on both SALP and SBLP. Factory pre-lubricated insert.
📏
Full Metric and Inch Bore Coverage
Each housing size accepts multiple inch bore insert variants in addition to the metric bore.

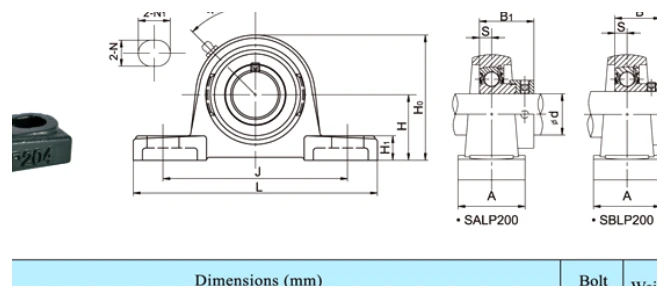

Full Dimensional Specifications
| Series / Unit No. | d mm | d inch | H mm | L mm | J mm | A mm | N mm | N1 mm | H1 mm | H0 mm | B/B1 mm | S mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SALP201~203 / 201-8~203-11 | 12~17 | 1/2~11/16 | 30.2 | 114 | 87 | 25 | 11 | 16 | 12 | 57 | 28.6 | 6.5 | M10 | 0.40 |
| SALP204 / 204-12 | 20 | 3/4 | 33.3 | 125 | 97 | 27 | 11.5 | 16 | 14 | 63.8 | 30.9 | 7.5 | M10 | 0.52 |
| SALP205 / 205-14/15/16 | 25 | 7/8~1 | 36.5 | 130 | 100 | 29 | 11.5 | 16 | 15 | 69.5 | 30.9 | 7.5 | M10 | 0.61 |
| SALP206 / 206-17/18/19/20 | 30 | 1-1/16~1-1/4 | 42.9 | 156 | 121 | 33 | 14 | 21 | 16 | 82 | 35.7 | 9 | M12 | 0.73 |
| SALP207 / 207-20/21/22/23 | 35 | 1-1/4~1-7/16 | 47.6 | 165 | 127 | 35 | 14 | 21 | 16 | 93 | 38.9 | 9.5 | M12 | 1.00 |
| SBLP201~203 / 201-8~203-11 | 12~17 | 1/2~11/16 | 30.2 | 114 | 87 | 25 | 11 | 16 | 12 | 57 | 22 | 6.5 | M10 | 0.40 |
| SBLP204 / 204-12 | 20 | 3/4 | 33.3 | 125 | 97 | 27 | 11.5 | 16 | 14 | 63.8 | 25 | 7.5 | M10 | 0.52 |
| SBLP205 / 205-14/15/16 | 25 | 7/8~1 | 36.5 | 130 | 100 | 29 | 11.5 | 16 | 15 | 69.5 | 27 | 7.5 | M10 | 0.61 |
| SBLP206 / 206-17/18/19/20 | 30 | 1-1/16~1-1/4 | 42.9 | 156 | 121 | 33 | 14 | 21 | 16 | 82 | 30 | 9 | M12 | 0.73 |
| SBLP207 / 207-20/21/22/23 | 35 | 1-1/4~1-7/16 | 47.6 | 165 | 127 | 35 | 14 | 21 | 16 | 93 | 32 | 9.5 | M12 | 1.00 |
→ Scroll table horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
B column for SBLP = insert width (setscrew type). B1 column for SALP = eccentric collar insert width — slightly wider. Housing H, L, J, A dimensions identical between SALP and SBLP for same bore size. Light duty: not rated for impact loads or sustained heavy radial loads.
Applications
🌿
Light Agricultural Equipment
Seed drill metering roller shafts, small sprayer pump drives, and compact tillage implement shafts where 12–25 mm drive shafts are standard and full UCP200 housings are too large for the implement frame.
📦
Packaging & Labelling Machinery
Label applicator roller shafts, date coder drive rollers, and small conveyor transfers in tabletop packaging equipment.
⚙
Light Industrial Fan & Blower Supports
Small centrifugal fan shaft supports in ventilation units, fume extraction systems, and laboratory equipment.
🧱
Light Conveyor & Feeder Drives
Small parts conveyor tail rollers, vibratory feeder drive shafts, and parts washing conveyor drives.
🌳
Wood Craft & Light Processing Equipment
Bandsaw guide roller shafts, wood lathe tailstock bearings, and light-duty scroll saw table pivots.
🔄
SBLP to SALP Upgrade Path
Any existing SBLP200 installation experiencing setscrew loosening on a unidirectional drive can be upgraded to SALP200 by replacing only the insert bearing — housing and mounting hardware remain unchanged.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Detailed engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Load Rating Guidance
The SALP/SBLP200 series is classified as light duty and carries lower static and dynamic load ratings than the UCP200 at equivalent bore sizes. For the same bore sizes with higher load capacity, the UCP200 series (setscrew) or NAP200 series (eccentric collar) provide substantially higher ratings in the same two-bolt pillow block format.
Frequently Asked Questions
Difference between SALP200 and SBLP200?
SALP200 = eccentric collar insert (unidirectional). SBLP200 = setscrew insert (bidirectional). Identical housing — interchangeable locking styles.
Can I upgrade from SBLP to SALP without new housing?
Yes. Replace only the insert bearing. Housing and all mounting hardware remain unchanged.
Why choose SALP/SBLP over UCP200?
Smaller, lighter housing for compact frames. Load capacity is lower — confirm application loads fall within SA/SB insert rating.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for SALP200 & SBLP200 Series
Specify series (SALP or SBLP), shaft diameter, bore type (metric or inch), and quantity. Contact us.
