SB SERIES

SB Insert Ball Bearing

Compact Set Screw Type. Catalogue-backed dimensions, exact series drawing and RFQ support from GBC.

Request a Quotesales@australia-drive.com

Product Overview

SB uses a shorter, lighter dimensional envelope than the larger UC family. It suits equipment where available width is limited and the matching housing has been designed around the SB insert.

The published drawing and dimensional table follow the GBC insert-bearing catalogue for this SB series. It is defined by set screw; -g relubricatable variants shown in catalogue, a spherical od for sb; c-prefix table note denotes cylindrical od version, and the dimensional rows listed below. For broader bearing navigation, explore the Bearings range.

Dimensional Drawing

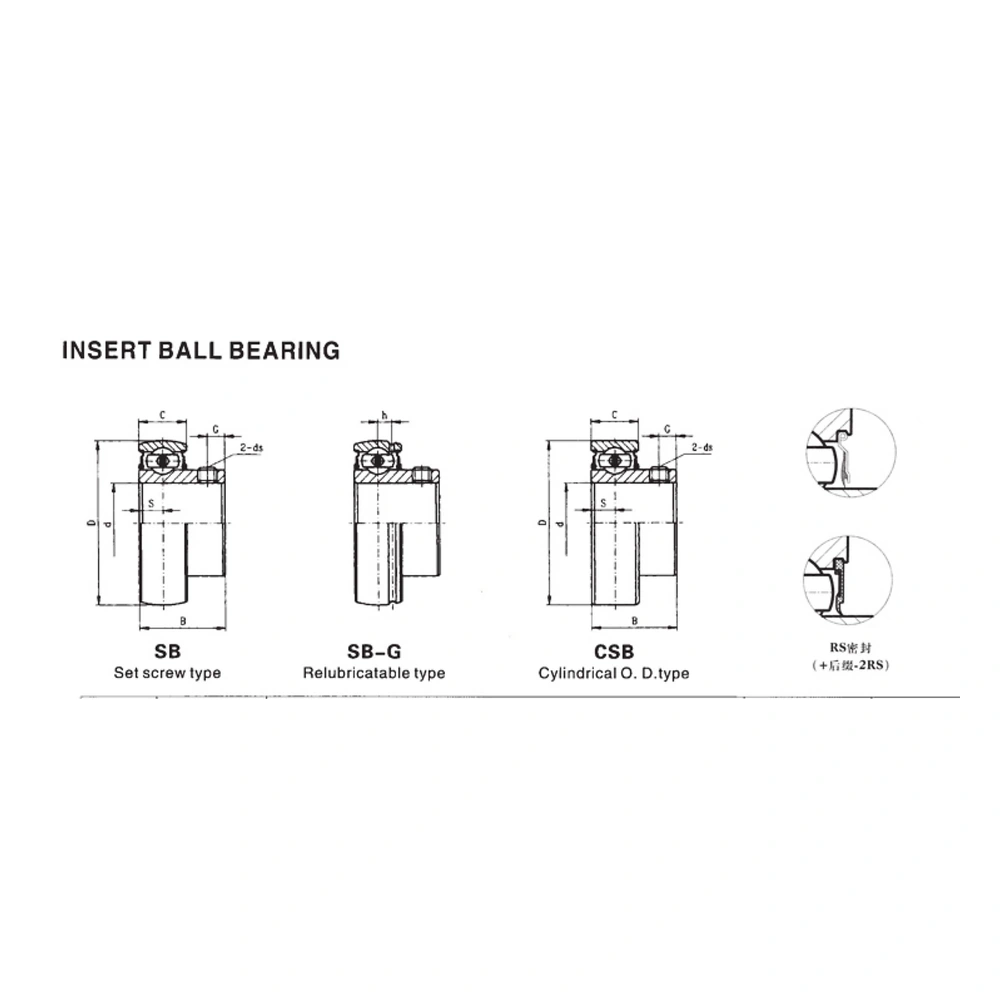

The drawing below is cropped directly from the supplied catalogue. Use its dimension letters with the table; do not scale the image to estimate dimensions.

Technical Parameters

Base metric rows and documented catalogue models are shown here. Inch-bore suffixes remain available where they appear in the catalogue; quote the complete suffix when an inch shaft is involved. Load ratings are catalogue values and should be checked together with duty, speed, lubrication and mounting conditions.

Selection and Housing Match

Choose the bore first, then compare D and B with the retained housing. If regular relubrication is required by the operating environment, specify the -G version shown in the catalogue instead of assuming a grease path is present.

Installation Notes

Confirm the housing series before tightening anything. SB, SB-G and cylindrical-OD C-prefix variants share similar naming but are not interchangeable by bore alone. On set-screw rows, use the catalogue torque for the listed screw size.

For set-screw rows, the catalogue gives the following maximum tightening torques. Use the thread shown in the selected bearing row; a torque value belongs to the screw size, not simply to the bearing bore.

Catalogue Construction Notes

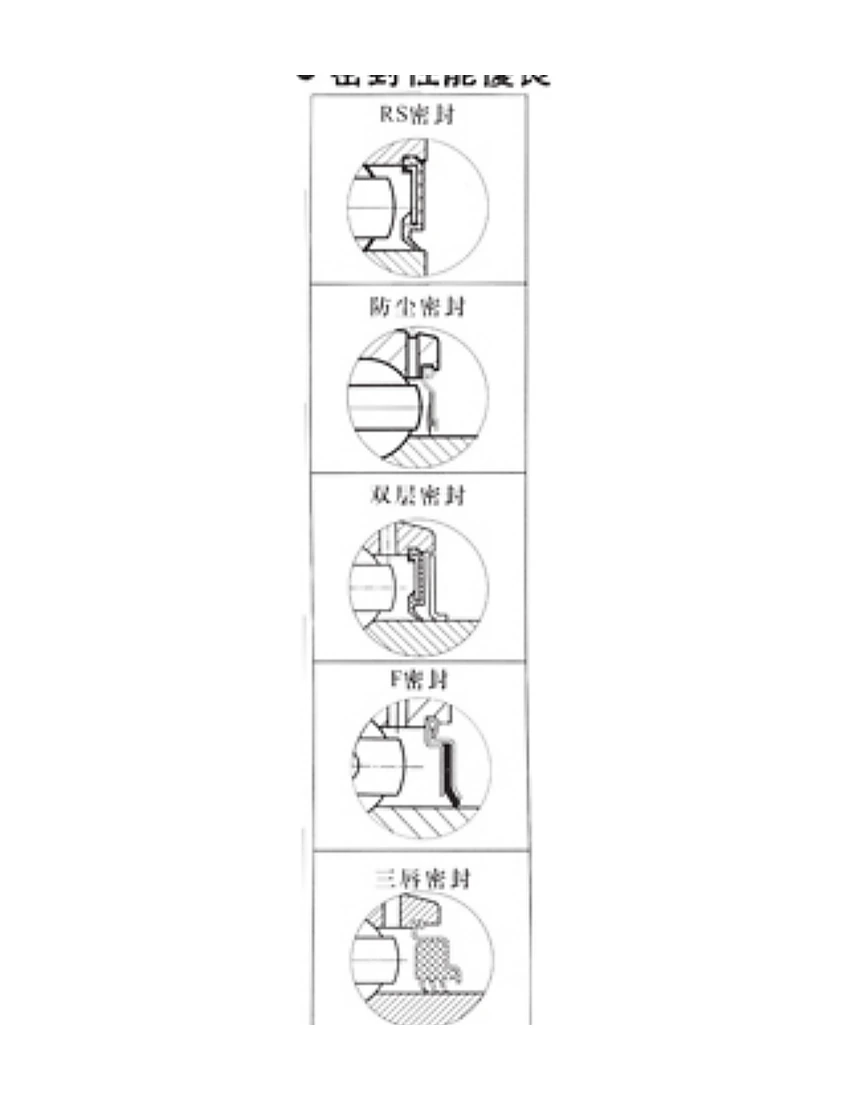

The catalogue describes insert bearings as single-row deep-groove ball bearings and shows dual-seal and triple-lip sealing arrangements within the product family. It also documents hardened inner-ring areas and an anti-rotation device used when a spherical insert is fitted with clearance in its housing. Confirm the exact suffix when a particular seal is required.

Typical Applications

This series is considered for light conveyors, textile machines, agricultural auxiliaries and compact material-handling equipment. Application fit still depends on shaft size, housing geometry, contamination, relubrication needs and the real radial/axial load pattern. For food-processing equipment, specify any material, lubricant or washdown requirement explicitly rather than assuming the standard insert meets a hygienic specification.

Ordering Information

Model codes should be ordered exactly as documented. The catalogue uses -G for relubricatable versions in applicable SB/SA families, C-prefix notation for cylindrical outside-diameter variants, 2RS where the double-rubber-seal designation is part of the model, and +H for UK adapter-sleeve combinations. Not every suffix applies to every series.
