SSUCPA All Stainless Steel Pillow Block Bearing Units
Buyers evaluating SSUCPA All Stainless Steel Pillow block bearing units should treat it as a pillow block bearing units rather than a bore-only bearing reference. Its construction is all-stainless housed construction, with setscrew locking on the shaft.
When reviewing a model, check whether the locking hardware will remain accessible after guards, pulleys or side plates are in place. Maintenance staff need enough room to tighten and release the chosen mechanism without damaging the shaft or dismantling unrelated components. This becomes particularly important on compact machines where the bearing itself is visible but the service approach is restricted.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Shaft Locking as a Selection Decision
Locking-focused buying notes
Buyers evaluating SSUCPA All Stainless Steel Pillow block bearing units should treat it as a pillow block bearing units rather than a bore-only bearing reference. Its construction is all-stainless housed construction, with setscrew locking on the shaft.
Applications include food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports. Treat that as context only; dimensions and environment at the real bearing point control the final selection.
Representative
SSUCPA205
Mounting
Tapped-base pillow block
Locking
Setscrew
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUCPA205 |
| Mounting form | Tapped-base pillow block |
| Locking | Setscrew |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |
| H | 36.5 mm |
| L | 84 mm |
| J | 56 mm |
| A | 38 mm |
| G | 15 mm |
| H1 | 12 mm |
| H0 | 72 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| Bolt size | M10 |
| Weight | 0.78 kg |
| Load / Housing Strength Reference | |
| Recommended set-screw torque for SUC204-206 | 3.9 N.m |
Shaft Locking as a Selection Decision
The way an insert secures to the shaft is a functional choice, not a minor suffix. Setscrews, concentric collars, eccentric collars and tapered arrangements each change how the unit is installed, adjusted and later removed.
When reviewing a model, check whether the locking hardware will remain accessible after guards, pulleys or side plates are in place. Maintenance staff need enough room to tighten and release the chosen mechanism without damaging the shaft or dismantling unrelated components. This becomes particularly important on compact machines where the bearing itself is visible but the service approach is restricted.
Do not change locking styles casually during a replacement. Even if the bore and housing dimensions appear correct, the site may already have established procedures and tooling for one type. A different method can alter shaft marking, removal practice and the amount of room required around the inner ring. If a change is intended, record it as an engineering decision rather than letting it happen through an approximate cross-reference.
For repeat orders, keep the locking description beside the product code in the maintenance system. That small detail helps stores separate look-alike units and gives buyers a clear question to resolve when an old label is partly unreadable.

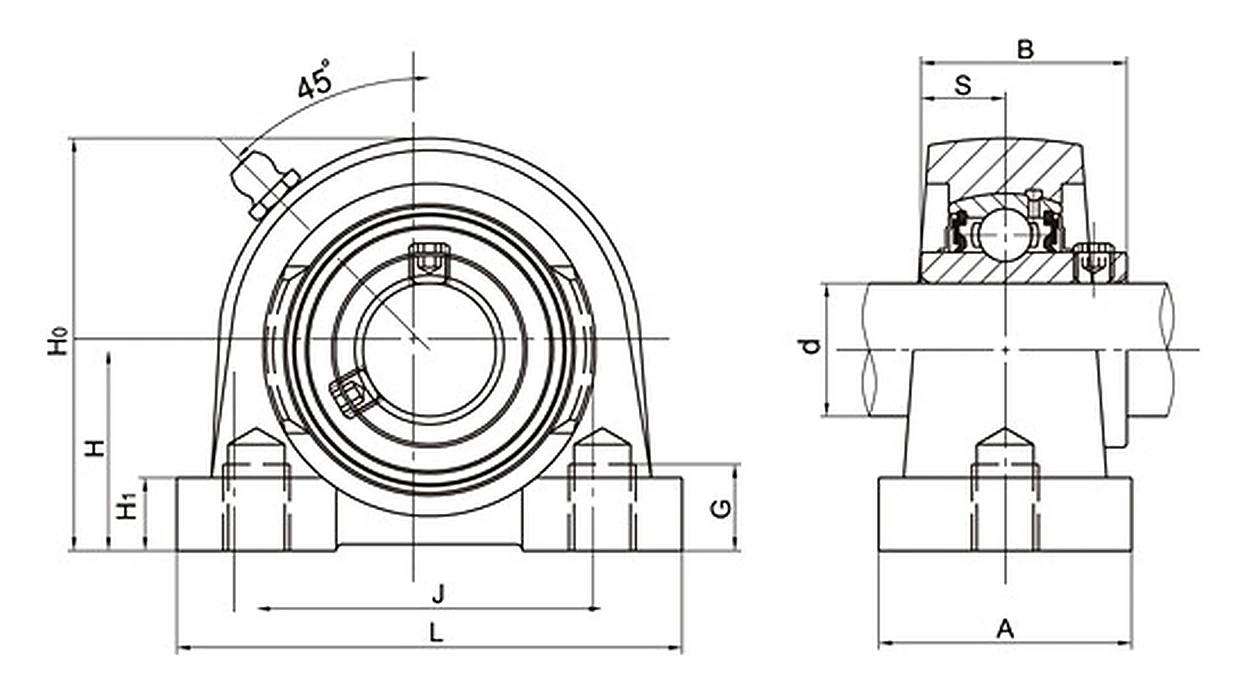

Shaft-locking view
Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food & Beverage
SSUCPA205 can be considered for food & beverage where its tapped-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Pharmaceutical Equipment
For pharmaceutical equipment, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUCPA205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
