SSUCP-A All Stainless Steel Pillow Block Bearing Units
The requested SSUCP-A-SERIES configuration combines all-stainless housed construction with setscrew locking in a pillow block bearing units format. The decisive fit dimensions are base bolt spacing, centre height and foot length.
Create a small comparison sheet for candidate common spares. Include bore, locking style, mounting dimensions, housing form and the service environment at each position. If any of those items differ materially, keep the substitution under engineering control instead of letting stores make the decision during a shutdown.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Representative
SSUCP205A
Mounting
Inch-based solid-base pillow block
Locking
Setscrew
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Spare-Parts Consolidation
Spare-planning buying notes
The requested SSUCP-A-SERIES configuration combines all-stainless housed construction with setscrew locking in a pillow block bearing units format. The decisive fit dimensions are base bolt spacing, centre height and foot length.
The surrounding use case is typically food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports, but the final choice still depends on the actual machine position and service conditions.
Spare-Parts Consolidation
Plants often try to reduce the number of bearing units held in stores, but visual similarity is not enough to justify consolidation. One stocked item should cover multiple positions only after the machine interfaces have been compared carefully.
Create a small comparison sheet for candidate common spares. Include bore, locking style, mounting dimensions, housing form and the service environment at each position. If any of those items differ materially, keep the substitution under engineering control instead of letting stores make the decision during a shutdown.
Where a common spare is approved, document the machines and positions it actually covers. This avoids the opposite problem: a later buyer assuming that an item standardized for two locations must also fit a third because the shaft diameter is the same.
Use replacement history as feedback. If one position consumes spares much faster than similar locations, the answer may be application, alignment or contamination rather than simply increasing inventory. A clean spare-parts program links purchasing records with maintenance observations.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUCP205A |
| Mounting form | Inch-based solid-base pillow block |
| Locking | Setscrew |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |
| H | 36.5 mm |
| L | 140 mm |
| J | 105 mm |
| A | 30 mm |
| N | 13 mm |
| N1 | 19 mm |
| H1 | 15 mm |
| H0 | 70 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| Bolt size | M10 |
| Weight | 0.82 kg |
| Load / Housing Strength Reference | |
| Recommended set-screw torque for SUC204-206 | 3.9 N.m |

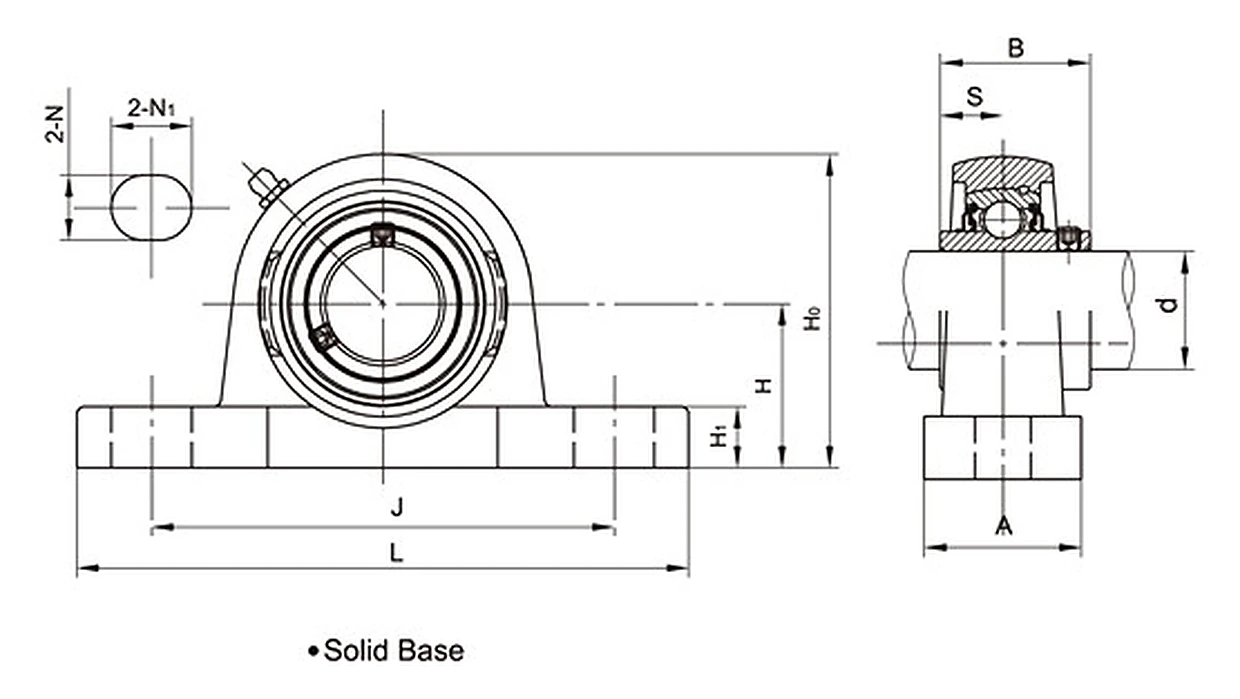

Common-spare dimension check
Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food & Beverage
SSUCP205A can be considered for food & beverage where its inch-based solid-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Pharmaceutical Equipment
For pharmaceutical equipment, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUCP205A only where the actual moisture, contamination and cleaning conditions match the selected product family.
