SSUCPA-A All Stainless Steel Pillow Block Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
SSUEPA-A All Stainless Steel Pillow Block Bearing Units
For SSUEPA-A All Stainless Steel Pillow block bearing units, review the complete mounted interface: base bolt spacing, centre height and foot length, then the concentric locking collar shaft connection. The product construction is all-stainless housed construction.
Measure from stable machine datums instead of from worn edges or old paint marks. On base-mounted units, the shaft centre and foot-hole locations usually control fit. On flanged units, the bolt pattern and plate opening become more important. Take-up and cartridge arrangements have their own locating dimensions. The drawing should therefore be read according to the mounting form, not as a generic list of numbers.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Mounting Pattern Control
Mounting-geometry buying notes
For SSUEPA-A All Stainless Steel Pillow block bearing units, review the complete mounted interface: base bolt spacing, centre height and foot length, then the concentric locking collar shaft connection. The product construction is all-stainless housed construction.
This product family is commonly reviewed for food, beverage, pharmaceutical and chemical-process equipment using complete stainless mounted supports. Actual load, speed, cleaning and contamination conditions should be stated for the ordered position.
Representative
SSUEPA205A
Mounting
Tapped-base, inch-based pillow block
Locking
Concentric collar
Representative bore
25 mm
Housing material
SUS 304
Set screw
SUS 304
Mounting Pattern Control
A mounted bearing can have the correct bore and still be unusable if its fixing pattern does not match the machine. For procurement, bolt centres, centre height and housing envelope are often approval dimensions rather than secondary drawing details.
Measure from stable machine datums instead of from worn edges or old paint marks. On base-mounted units, the shaft centre and foot-hole locations usually control fit. On flanged units, the bolt pattern and plate opening become more important. Take-up and cartridge arrangements have their own locating dimensions. The drawing should therefore be read according to the mounting form, not as a generic list of numbers.
When a frame has elongated holes or field modifications, document them. Pulling a new housing into position with the fixing bolts can twist the support or move the shaft away from its intended line. It is better to resolve the machine interface first and allow the bearing unit to seat naturally against the mounting surface.
Store the confirmed interface dimensions with the product reference after a successful replacement. This makes the next purchase easier and helps distinguish similar models whose main difference is hidden in the mounting geometry.

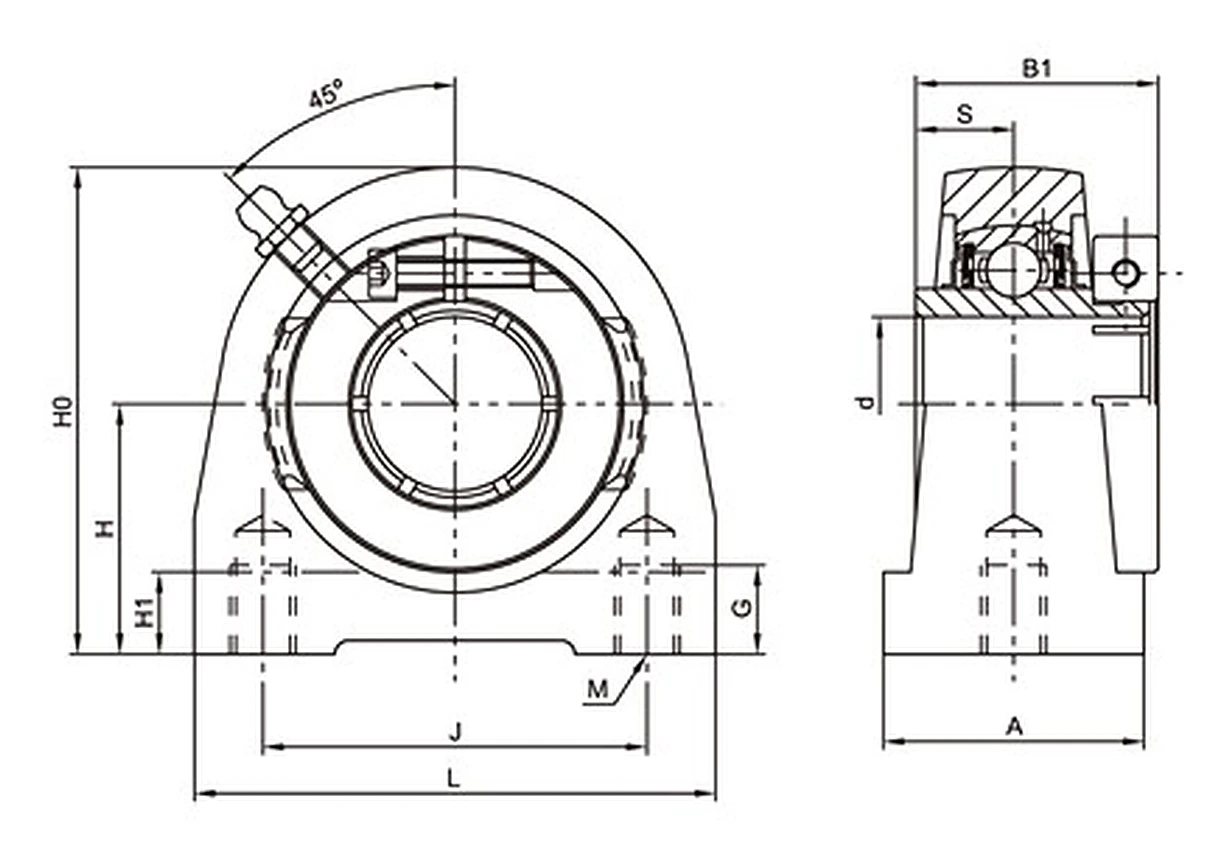

Bolt-pattern drawing review
Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Technical Specifications & Drawing
| Representative bore | 25 mm |
|---|---|
| Representative model | SSUEPA205A |
| Mounting form | Tapped-base, inch-based pillow block |
| Locking | Concentric collar |
| Housing material | SUS 304 |
| Set screw | SUS 304 |
| Retainer | SUS 201 |
| Slinger & frame | SUS 304 |
| Inner & outer rings | SUS 440 |
| Balls | SUS 440 |
| Grease nipple | SUS 304 |
| Operating temperature | -20 C to 120 C |
| H | 36.5 mm |
| L | 76 mm |
| J | 50.8 mm |
| A | 38 mm |
| G | 13 mm |
| H1 | 12 mm |
| H0 | 71 mm |
| B1 | 35.4 mm |
| S | 14.3 mm |
| Mounting thread | 3/8-16 |
| Weight | 0.80 kg |
Applications
Food & Beverage
SSUEPA205A can be considered for food & beverage where its tapped-base, inch-based pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Pharmaceutical Equipment
For pharmaceutical equipment, the concentric collar arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Packaging Lines
In washdown packaging lines service, use the construction of SSUEPA205A only where the actual moisture, contamination and cleaning conditions match the selected product family.
Related Products
SSUCPA All Stainless Steel Pillow Block Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
SSUCP-A All Stainless Steel Pillow Block Bearing Units
Compare mounting style, shaft locking, bore range and installation envelope before selecting the alternative.
Mounting-pattern RFQ
Attach the machine bolt pattern or housing dimensions together with shaft size and required quantity.
For SSUEPA-A All Stainless Steel Pillow block bearing units, review the complete mounted interface: base bolt spacing, centre height and foot length, then the concentric locking collar shaft connection. The product construction is all-stainless housed construction.
Measure from stable machine datums instead of from worn edges or old paint marks. On base-mounted units, the shaft centre and foot-hole locations usually control fit. On flanged units, the bolt pattern and plate opening become more important. Take-up and cartridge arrangements have their own locating dimensions. The drawing should therefore be read according to the mounting form, not as a generic list of numbers.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
