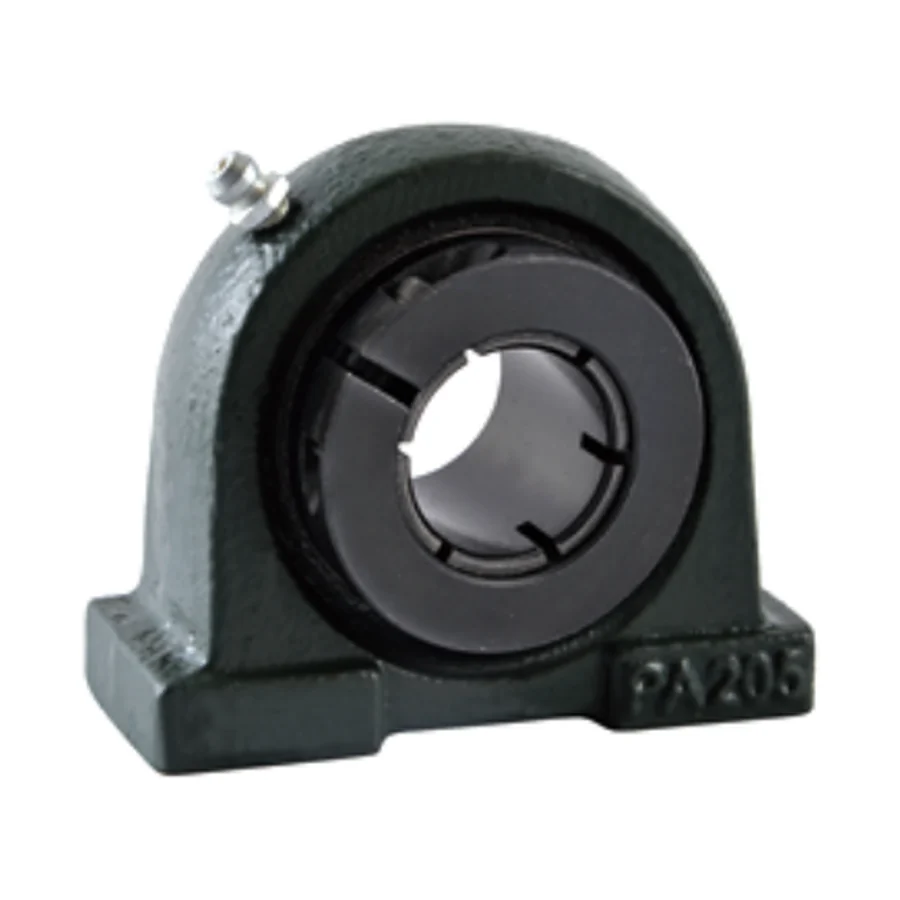

UEPA200 Series Tapped Base Pillow Block Bearing Units — Tapped Base, Concentric Collar Locking
The UEPA200 series is the intersection of two specific requirements that occasionally appear together: the need for bolt-from-below mounting (tapped base) and the need for a concentric locking collar that handles high shaft speeds or bidirectional rotation. Neither requirement alone is unusual — UCPA200 provides the tapped base with setscrew locking, and UEP200 provides the concentric collar in a standard clearance-hole housing. The UEPA200 exists for the case where both are needed simultaneously.
Why This Combination Matters
High-speed drives in enclosed machine frames frequently require single-side assembly. A CNC spindle support, a high-speed fan bearing in a sealed enclosure, or a precision winding mandrel bearing in a guarded textile machine all share this characteristic: the mounting bolts must be inserted and tightened from the accessible side only, and the shaft will run at speeds where setscrew retention is considered marginal by the machine designer. The UEPA200 addresses both constraints in a single unit.
Key Features
🔧
Tapped Base — Single-Side Assembly
Threaded bolt holes in housing base. Mounting bolts engage from below only. No nut hardware above base required.
🔄
Concentric Locking Collar
360° uniform shaft contact. No eccentric mass. Full bidirectional retention — suitable for reversing drives and high-speed unidirectional shafts alike.
↔
Wider Inner Ring Insert
UE series wide inner ring insert with concentric collar extension. Self-aligning spherical OD. Axial float capacity for thermal expansion.
⚙
Compact Tapped Base Housing
Same compact housing footprint as UCPA200. Verify J and A dimensions against the machine frame design.
📏
Metric Thread Standard
Tapped base thread (G column) in metric M series. Inch UNC equivalent available on request.
✅
GB / ISO / ANSI / JIS Compliant
External housing dimensions comply with major standards. Interchangeable with equivalent UEPA-profile units.

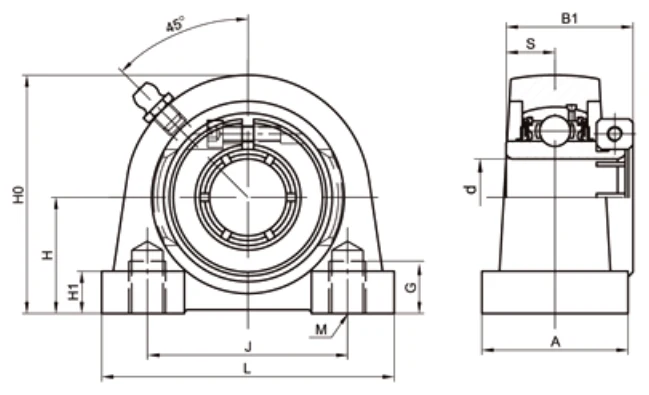

Full Dimensional Specifications
| Unit No. | d mm | d inch | H mm | L mm | J mm | A mm | G | H1 mm | H0 mm | B1 mm | S mm | Bolt | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UEPA204 / 204-12 | 20 | 3/4 | 30.2 | 76 | 52 | 38 | M10 | 11 | 62 | 33 | 12.7 | M10 | 0.65 |
| UEPA205 / 205-14/15/16 | 25 | 7/8~1 | 36.5 | 84 | 56 | 38 | M10 | 12 | 72 | 35.4 | 14.3 | M10 | 0.85 |
| UEPA206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 42.9 | 94 | 66 | 48 | M14 | 12 | 84 | 39.8 | 15.9 | M14 | 1.30 |
| UEPA207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 47.6 | 110 | 80 | 48 | M14 | 13 | 95 | 43.9 | 17.5 | M14 | 1.70 |
| UEPA208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 49.2 | 116 | 84 | 54 | M14 | 13 | 100 | 50.2 | 19.0 | M14 | 2.12 |
| UEPA209 / 209-26~28 | 45 | 1-5/8~1-3/4 | 54.2 | 120 | 90 | 54 | M14 | 13 | 108 | 50.2 | 19.0 | M14 | 2.54 |
| UEPA210 / 210-30~32 | 50 | 1-7/8~2 | 57.2 | 130 | 94 | 60 | M16 | 14 | 116 | 52.6 | 19.0 | M16 | 3.25 |
| UEPA211 / 211-32~35 | 55 | 2~2-3/16 | 63.5 | 140 | 104 | 66 | M16 | 14 | 125 | 56.6 | 22.2 | M16 | 3.63 |
| UEPA212 / 212-36~39 | 60 | 2-1/4~2-7/16 | 69.9 | 150 | 114 | 68 | M16 | 17 | 138 | 66.6 | 25.4 | M16 | 4.70 |
→ Scroll table horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
G = tapped thread in housing base. B1 = concentric collar insert width (wider than standard setscrew insert B — check axial clearance). Minimum bolt engagement: 1.5 × bolt diameter.
Applications
⚙
High-Speed Enclosed Machine Spindles
Precision grinding spindle support bearings and high-speed router spindle shaft supports in CNC machines where the spindle housing cover prevents above-base access and shaft speeds exceed setscrew retention limits.
🧵
Textile Winding Machine Bearings
High-speed yarn winding mandrel supports and texturing machine spindle bearings where the machine frame is enclosed after assembly.
🌀
Sealed HVAC Fan Supports
Centrifugal fan shaft bearings in hermetically sealed air handling units where the fan bearing housing cover is a pressure boundary.
⇄
Reversing Drive Precision Machines
Servo-driven reversing shafts in CNC plasma cutters, laser engravers, and precision transfer presses where both high speed and frequent reversal make setscrew retention unsuitable.
🌿
Agricultural OEM Precision Seeder Heads
Seed metering disc shafts where the metering housing encloses the shaft from above, bolt access is from the frame underside only, and shaft reversal demands bidirectional collar retention.
📦
Packaging Machinery Sealed Enclosures
Film web guide roller bearings and tension roller supports in wash-down packaging machines where bearing mounting bolts must be accessible from the outside frame face only.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Detailed engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Selecting UEPA200 vs UCPA200 vs UEP200
Choose UEPA200 when both tapped base and concentric locking are required simultaneously. Choose UCPA200 when tapped base is needed but setscrew locking is adequate. Choose UEP200 when concentric locking is needed but standard clearance-hole bolt assembly from above is acceptable.
Frequently Asked Questions
When to use UEPA200 instead of UCPA200?
When shaft speed or reversal frequency makes setscrew locking inadequate AND tapped base mounting is simultaneously required.
Is the concentric collar the same as the NAP200 eccentric collar?
No. UEPA200 concentric collar applies uniform 360° clamping — fully bidirectional. NAP200 eccentric collar is unidirectional only.
What is B1?
Width of the concentric collar insert — wider than setscrew insert B. Check axial clearance in confined spaces.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for UEPA200 Series
Specify shaft diameter, operating speed, rotation direction, thread standard (metric/UNC), and access constraints. Contact us.
