UET200 Series Take Up Bearing Units — Standard Duty, Concentric Collar Locking
A take-up unit combines a mounted bearing with a slotted cast iron housing that slides along a frame rail or between guide faces, driven by an adjusting screw. The slot travel (controlled by dimensions N1 and N2 — slot width and slot length) allows the bearing centreline to be moved axially or laterally relative to the drive structure after installation, tensioning a belt, chain, or timing drive without removing the bearing from the shaft. Once the correct tension is set, the housing is locked in position by tightening the frame bolts through the slot. This combination of bearing and tensioning mechanism in a single unit reduces the number of components on a conveyor or drive frame, lowers installation time, and makes re-tensioning after belt stretch a tool-only operation without shaft removal.
The UET200 brings concentric collar locking to the take-up housing format. The concentric collar applies 360° uniform clamping pressure to the shaft with no eccentric mass, making it suitable for take-up positions on reversing drives, servo-controlled tension systems, and high-speed belt drives where setscrew retention is marginal and the eccentric collar's directional dependency is not acceptable. In take-up applications, the concentric collar is particularly valuable on drives that are frequently jogged or reversed during maintenance — the collar releases symmetrically in both directions, so direction of rotation at re-start never causes the bearing to loosen.
Key Features
🔄
Concentric 360° Locking Collar
Uniform shaft contact, no imbalance mass. Releases symmetrically — fully bidirectional. Correct choice for reversing, jogging, and high-speed take-up drive positions.
⇨
Same Take-Up Frame as UCT200 / NAT200
N1, N2, L, H dimensions match UCT200 for equivalent bore sizes. Upgrade by replacing insert only; frame and slot unchanged.
↔
UE Series Wide Inner Ring Insert
B1 slightly wider than UCT200 B — verify axial clearance when retrofitting into existing UCT200 position.
📏
Metric and Inch Bore
20–60 mm metric bore with inch bore variants per housing size.
⇄
Bidirectional — Reversing Drives
For take-up positions where the drive reverses during operation or maintenance. Concentric collar does not release under reversal.
✅
GB / ISO / ANSI / JIS Compliant
Interchangeable with UET200-pattern concentric collar take-up units.

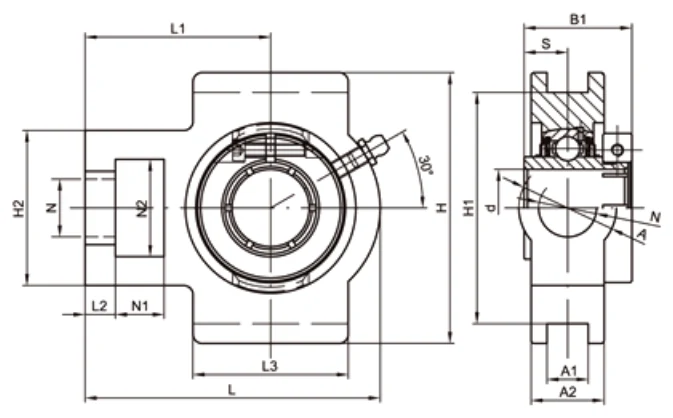

Full Dimensional Specifications
| Unit No. | d mm | d inch | N1 mm | L2 mm | H2 mm | N2 mm | N mm | L3 mm | A1 mm | H1 mm | H mm | L mm | A mm | A2 mm | L1 mm | B1 mm | S mm | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UET204 / 204-12 | 20 | 3/4 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 94 | 32 | 21 | 61 | 33.0 | 12.7 | 0.93 |
| UET205 / 205-14~16 | 25 | 7/8~1 | 16 | 10 | 51 | 32 | 19 | 51 | 12 | 76 | 89 | 97 | 32 | 24 | 62 | 35.4 | 14.3 | 0.96 |
| UET206 / 206-17~20 | 30 | 1-1/16~1-1/4 | 16 | 10 | 56 | 37 | 22 | 57 | 12 | 89 | 102 | 113 | 37 | 28 | 70 | 39.8 | 15.9 | 1.40 |
| UET207 / 207-20~23 | 35 | 1-1/4~1-7/16 | 16 | 13 | 64 | 37 | 22 | 64 | 12 | 89 | 102 | 129 | 37 | 30 | 78 | 43.9 | 17.5 | 1.79 |
| UET208 / 208-24/25 | 40 | 1-1/2~1-9/16 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 114 | 144 | 49 | 33 | 88 | 50.2 | 19 | 2.76 |
| UET209 / 209-26~28 | 45 | 1-5/8~1-3/4 | 19 | 16 | 83 | 49 | 29 | 83 | 16 | 102 | 117 | 144 | 49 | 35 | 87 | 50.2 | 19 | 2.88 |
| UET210 / 210-30~32 | 50 | 1-7/8~2 | 19 | 16 | 83 | 49 | 29 | 86 | 16 | 102 | 117 | 149 | 49 | 37 | 90 | 52.6 | 19 | 2.86 |
| UET211 / 211-32~35 | 55 | 2~2-3/16 | 25 | 19 | 102 | 64 | 35 | 95 | 22 | 130 | 146 | 171 | 64 | 38 | 106 | 56.6 | 22.2 | 4.52 |
| UET212 / 212-36~39 | 60 | 2-1/4~2-7/16 | 32 | 19 | 102 | 64 | 35 | 102 | 22 | 130 | 146 | 194 | 64 | 42 | 119 | 66.6 | 25.4 | 5.41 |
→ Scroll horizontally to view all columns. Catalogue dimensions for reference only — engineering drawings required before order.
B1 = concentric collar insert width (wider than UCT200 B — verify axial clearance). UET range starts at 20 mm (UET204). Solid base: suffix SB.
Applications
⇄
Reversing Belt Drive Take-Up Positions
Take-up positions on reversing conveyors, bi-directional transfer conveyors, and shuttle drives where the drive changes direction in operation and the eccentric collar NAT200 would release under reversal.
🌀
High-Speed Fan Belt Take-Up
Belt drive take-up positions for centrifugal fans and blowers where shaft speed exceeds setscrew retention limits and the take-up position requires periodic tensioning adjustment.
⚙
Servo-Controlled Tension Systems
Take-up positions on servo-controlled belt tension systems where the shaft speed and direction vary continuously and the concentric collar provides retention independent of rotation direction.
📦
Packaging Machine Reversing Drive Take-Up
Take-up positions on packaging machine drives that jog or reverse during format change and maintenance, where the concentric collar prevents loosening during each direction reversal.
🧵
Textile Machine Belt Take-Up
Winding and texturing machine belt drive take-up positions where high shaft speed and frequent direction changes make setscrew or eccentric collar locking unsuitable.
🔄
Upgrade from NAT200 on Reversing Drives
Direct insert-only upgrade from NAT200 where drive reversal causes collar release. Frame, slot, and bolt positions unchanged.
📦 MOQ & Order Information
- Standard parts: quantity-based MOQ applies per model number.
- High-value / large items: minimum order by USD order value.
- New-client samples: 1–5 pcs available at sample price for first-time buyers.
- Multi-model combines: aggregate orders of USD 1,500 or more across models accepted.
- Special materials / processes: subject to process MOQ — confirm at inquiry stage.
- Retail (1–2 pcs): not accepted. Minimum sample order is 1–5 pcs at sample pricing.
Engineering drawings must be submitted and approved before order confirmation. Catalogue dimensions are for reference only.
Frequently Asked Questions
Can UET200 be used on a reversing drive?
Yes — concentric collar is fully bidirectional.
Same frame as UCT200?
Yes for N1, N2, L, H dimensions. B1 wider — verify axial clearance.
What is the MOQ?
Standard parts: quantity-based MOQ. Samples 1–5 pcs. Multi-model from USD 1,500. Retail 1–2 pcs not accepted.
Request a Quote for UET200 Series
Provide shaft diameter, operating speed, rotation direction, bore type, and quantity. Contact us.
