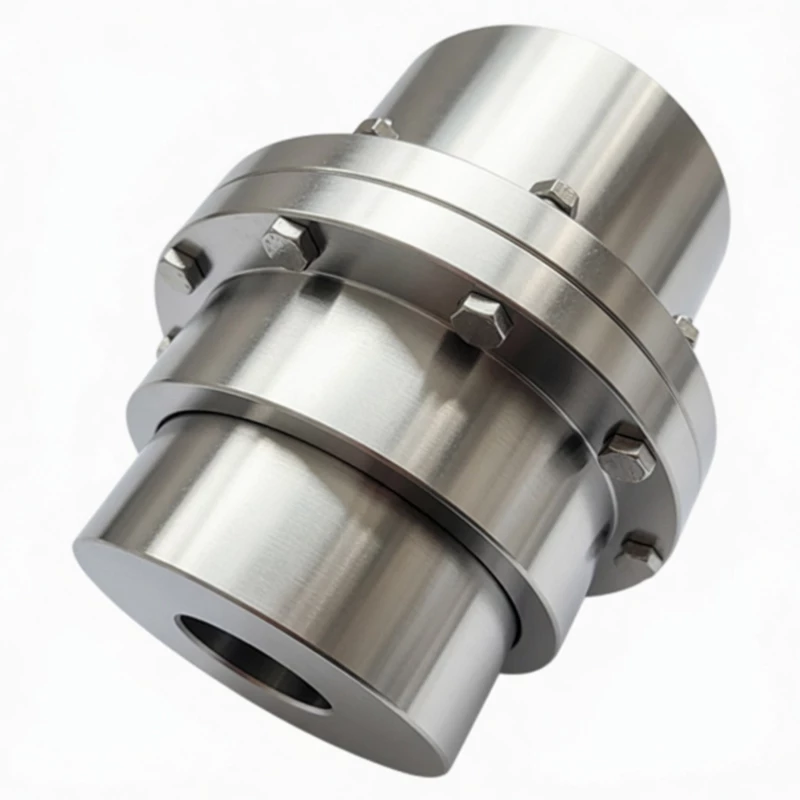

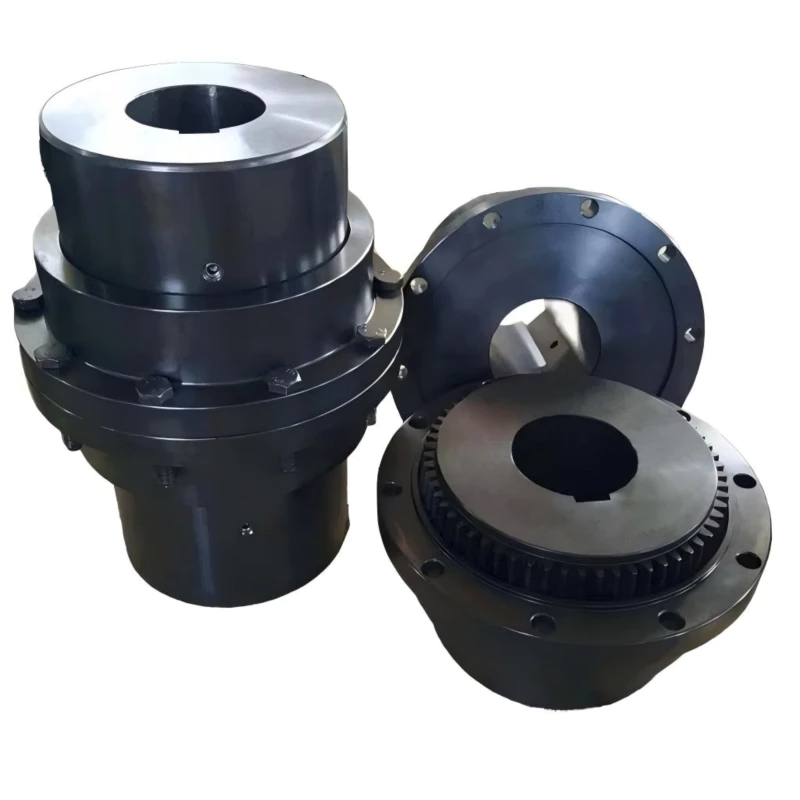

GIICL Drum Shape Gear Coupling

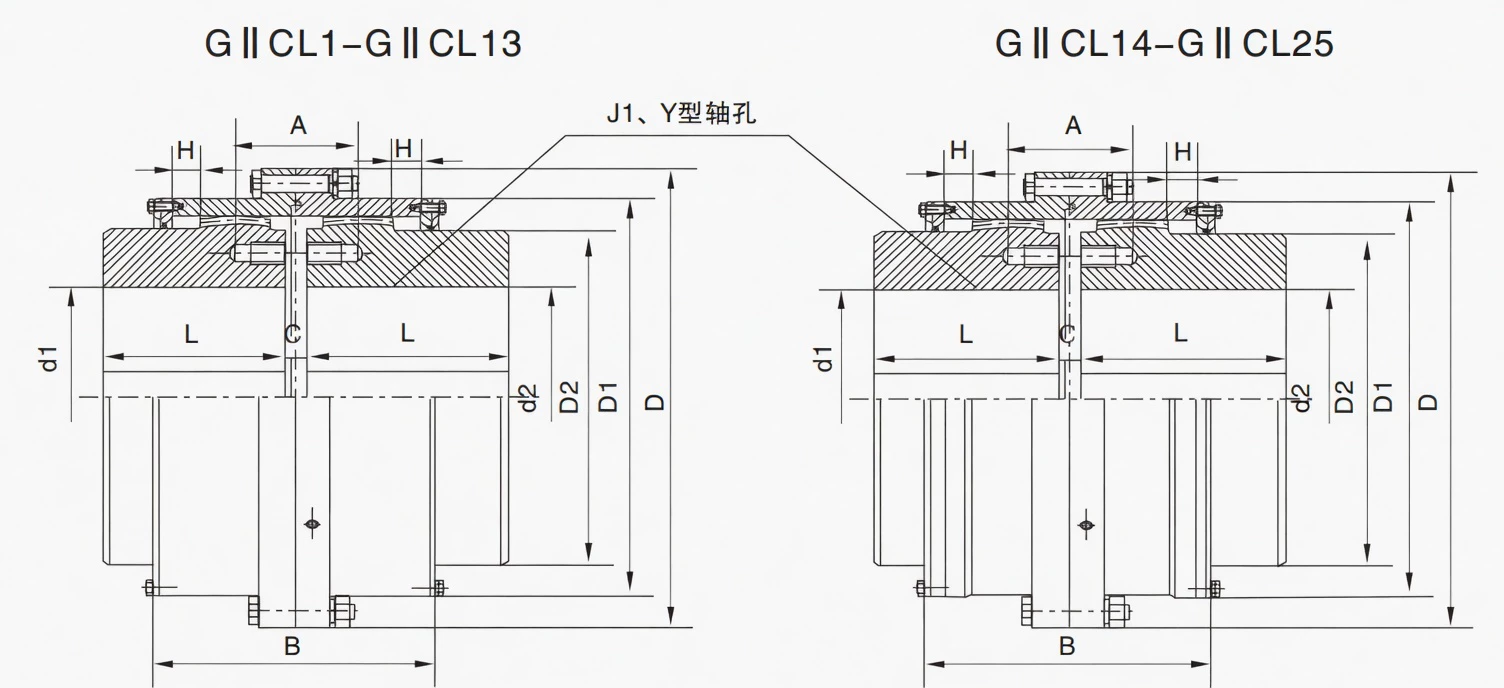

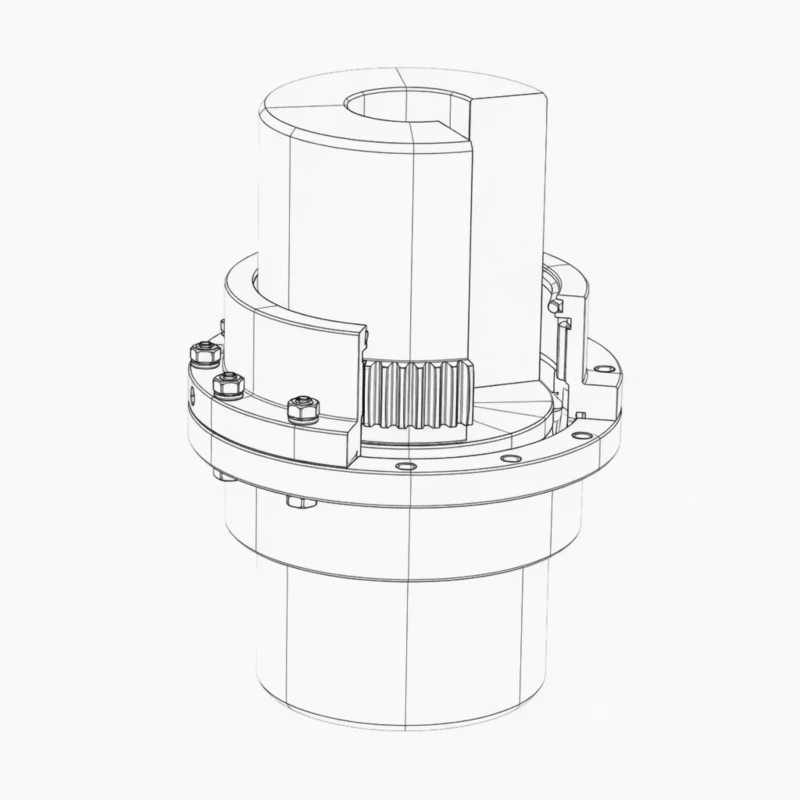

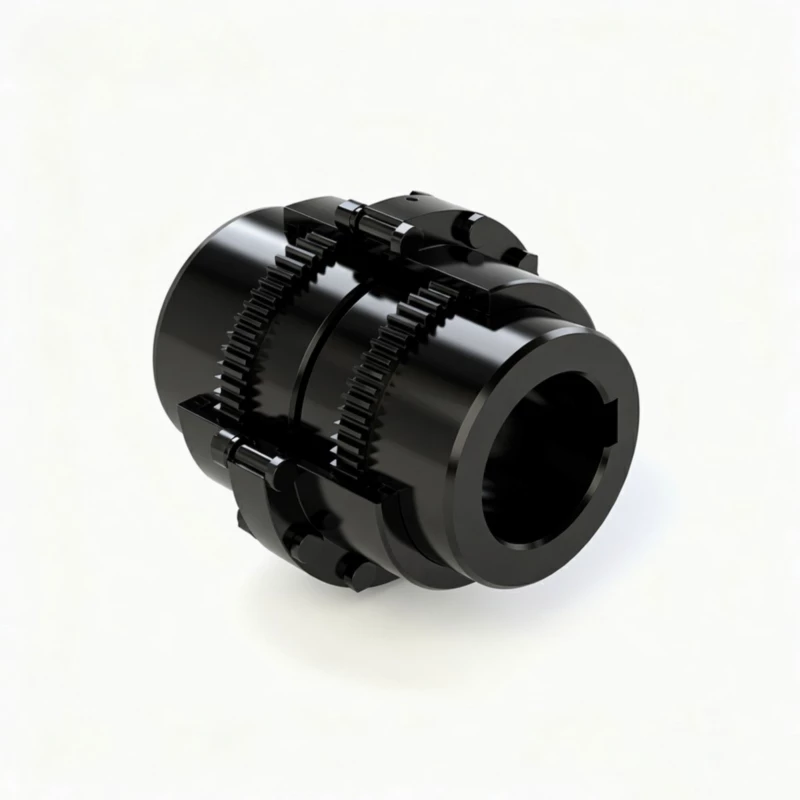

A double-mesh crowned-tooth gear coupling comprising two identical hubs with external drum-teeth and a sleeve assembly with internal straight teeth, delivering compensated torque transmission with angular and axial misalignment tolerance.

Heavy-load horizontal shaft connections in mining equipment, conveyor drives, pump and fan drives, compressors, mills, crane mechanisms, and high-speed industrial gearboxes — wherever compact structure, reliability, and misalignment tolerance are required simultaneously.

GBC is a factory-direct OEM manufacturer with 15+ years of coupling export experience, serving Australian distributors, engineering contractors, and end-users with standard and custom configurations. No middlemen — direct from the production floor to your site.

Mining & Mineral Processing

Equipment: Ball mills, SAG mills, rod mills, gyratory crushers, conveyor head drives, and slurry pump drives on Australian iron ore, gold, and coal operations.

Problem solved: Mill foundation settlement and process-induced shock loads constantly misalign drive shafts. The GIICL's crowned teeth accommodate this without transmitting bending moments back into gearboxes, preventing premature bearing and gear failure that would otherwise cause costly unplanned shutdowns.

Steel & Metals Industry

Equipment: Rolling mill main drives, rolling table drives, continuous caster pinch rolls, and crane runway hoists at steel facilities in Wollongong and Port Kembla.

Problem solved: Rolling mill drives experience severe reversing shock loads. The GIICL's compact, high-torque structure absorbs these shocks at the tooth mesh while protecting the precision-aligned gearbox and motor bearings from bending-moment overload.

Port & Bulk Handling

Equipment: Stacker-reclaimer slewing drives, ship loader boom conveyors, bucket elevator drives, and grain terminal auger drives at ports in Fremantle, Newcastle, and Port Hedland.

Problem solved: Outdoor installations experience thermal cycling misalignment — shafts expand differentially during the day. The GIICL's generous axial clearance (±e per size) absorbs this movement without generating axial thrust loads on motor bearings.

Water & Waste Water Treatment

Equipment: Large centrifugal pump drives, aeration blower drives, and primary treatment sludge agitator drives at metropolitan and regional water utilities.

Problem solved: Pumping infrastructure shafts settle over years of operation. The GIICL's misalignment capacity means drives continue operating within tolerance long after initial shaft alignment has drifted, reducing the frequency of costly re-alignment shutdowns.

Power Generation

Equipment: Boiler feed pump drives, induced and forced draft fan drives, and auxiliary cooling water pump drives at coal-fired and gas power stations.

Problem solved: Power station auxiliary drives run continuously at high speed with minimal maintenance windows. The GIICL's extended service life under combined angular misalignment and axial thermal growth eliminates the need for annual re-alignment outages that straight-tooth couplings demand.

Agribusiness & Food Processing

Equipment: Sugar mill roller drives and cane preparation drives in Queensland; grain drying drum drives and feedlot feed mixer augers in southern states.

Problem solved: Seasonal operations mean equipment is stored and restarted annually. On restart, thermal and ground-movement misalignment is common. The GIICL tolerates this without requiring precision re-alignment every season, saving significant commissioning labour costs.

Higher Misalignment Tolerance — Critical for Australian Mine Sites

The crowned tooth geometry allows the GIICL to accommodate angular misalignment up to 3° total (approximately 1°–1.5° per mesh) compared to less than 1° for equivalent-torque straight tooth designs. On Australian mine sites — particularly in the Pilbara, Hunter Valley, and Bowen Basin — foundation concrete shrinkage, ground movement from blast vibration, and thermal cycling routinely generate shaft misalignments of 0.5° to 1.5°. A straight tooth coupling in this environment enters edge-loading failure mode within months. The GIICL operates reliably for years, protecting the gearboxes and motors connected to it from premature bearing and seal failure caused by bending moments transmitted through a misalignment-intolerant coupling.

Longer Service Life Under Shock Loads

The convex tooth profile distributes contact stress uniformly across the full tooth face width at all operating misalignment angles. In contrast, a straight tooth under equivalent misalignment concentrates the full load onto a tiny area at the tooth end — contact stress at the edge can be 5–10 times higher than at the centre. Under the cyclical shock loads of a crusher, ball mill, or skip hoist, this concentrated stress causes rapid fatigue pitting and spalling of the tooth surface. GIICL couplings routinely achieve 3–5 years of continuous service in mine duty conditions where straight-tooth equivalents require replacement every 12–18 months.

Reduced Bearing Loads on Connected Equipment

When a straight-tooth coupling resists angular misalignment, it transmits a bending couple into the shafts of the connected motor and gearbox. This bending moment adds radial load to the nearest bearings on both sides of the coupling, reducing their L10 life — often by a factor of 8 or more (since bearing fatigue life varies inversely with the cube of the load). The GIICL's crowned teeth pivot freely within the sleeve teeth, generating zero bending couple under misalignment. The only forces transmitted are the driving torque and a small radial reaction force — typically less than 5% of rated torque for normal operating misalignment. This keeps motor and gearbox bearings running at their design load rating, achieving their full calculated life.

Lower Maintenance Frequency and Total Cost of Ownership

The combination of uniform tooth stress, low bearing loads, and effective grease retention (via O-ring and labyrinth seals) allows GIICL couplings to operate with grease replenishment intervals of 6–12 months in typical industrial service. In remote Australian mine sites where the cost of a planned maintenance shutdown can exceed AUD $50,000 per day in lost production, extending coupling service intervals from 3-monthly to 6-monthly represents substantial operational savings. The GIICL's straightforward two-hub-and-sleeve construction also means replacement can be completed by two tradespeople in under two hours without specialist tooling.

Suitable for High-Speed Applications Up to 4000 RPM

The compact, low-inertia structure of the GIICL (compared to flanged sleeve designs) keeps the coupling mass concentrated close to the rotation axis, reducing centrifugal stresses at speed. GIICL1 through GIICL7 are rated to 3750–4000 RPM, making them suitable for direct coupling of high-speed induction motors (up to ~2950 RPM at 50 Hz) to centrifugal pumps, fans, and compressors. The balanced tooth-mesh geometry and precise manufacturing tolerances ensure smooth, vibration-free operation throughout the speed range.

Process Highlights

• Crowned tooth profile generated by CNC gear hobbing with barrel-profile attachment
• Induction hardening to HRC 55–62 surface hardness with 0.8–1.5 mm case depth
• Core hardness maintained at HRC 30–35 for shock absorption
• Bore ground to H7 tolerance for interference or transition fit configurations

Inspection Equipment

• CMM (coordinate measuring machine) — dimensional verification
• Gear profile measuring instrument — tooth form and crown profile
• Rockwell hardness tester — surface and core hardness
• Magnetic particle inspection — crack detection on critical sections
• Surface roughness tester — tooth flank Ra measurement

Certifications & Standards

• ISO 9001:2015 Quality Management System
• CE Marking (Machinery Directive compliance)
• JB/T8854.2 dimensional and performance standard
• Material test certificates available for each batch
• Third-party inspection accepted (SGS / Bureau Veritas)

Australian Standards Awareness

15 years of exporting to Australia means our team understands local operating conditions — from Western Australian iron ore dust to Queensland tropical humidity. We routinely supply couplings pre-specified with protective paint systems, stainless hardware, and enhanced seal packages suited to Australian site conditions.

Competitive MOQ for Australian Buyers

Unlike many Chinese coupling manufacturers who enforce minimum orders of 50–100 units per model, GBC accepts orders from 1 unit upward for standard catalogue sizes. For custom bore or special configurations, MOQ from 2–5 pieces. This makes us the right partner for both plant OEM requirements and one-off breakdown replacements.

English-Speaking Engineering Support

Our export engineering team communicates fluently in English and is experienced in discussing Australian project requirements — including HAZOP considerations, site-specific service factors, and drive train selection calculations. Send us your motor data sheet and we'll return a coupling selection recommendation within 24 hours.

OEM & Custom Drawing Capability

GBC has manufactured replacement couplings to customers' supplied drawings for over a decade, including non-standard bore diameters, custom keyway profiles, tapered bores, split-hub configurations, and OEM-branded assemblies. Our CAD team can work from PDF or DXF drawings and return a confirmation drawing for approval before production.

Reliable Lead Times & Logistics

Standard catalogue sizes: 7–15 business days production + sea freight (approx. 18–22 days to major Australian ports). Air freight available for urgent breakdowns. All shipments include complete export documentation: packing list, commercial invoice, certificate of origin, and material certs. Direct sea container consolidations available for regular buyers.

Factory-Direct Pricing

GBC is the manufacturing source, not a trading company. No additional layers of commission between our production floor and your purchase order. Our pricing is consistently 30–50% below equivalent European-branded product pricing for equivalent manufactured quality, without compromising on material certification or dimensional accuracy.
