TP-SUCP205 Thermoplastic Pillow Block Bearing | Food-Grade Configuration | 25 mm Bore
TP-SUCP205 Thermoplastic Pillow Block Bearing | Food-Grade Configuration | 25 mm Bore is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses setscrew locking. For fit approval, check base bolt spacing, centre height and foot length.
Before dismantling the support, capture the as-installed condition. Measure the shaft centre above the mounting face, record the fixing-hole locations, and photograph any spacers or non-standard hardware. If the base has been welded, slotted or repaired, treat those dimensions as the current machine reality. An old equipment manual can still be helpful, but it should not overrule what is physically present on the machine today.
MOQ: 50 pcs. Minimum order value USD 1,500; mixed orders and trial quantities welcome.
Legacy Footprint Review
Retrofit-focused buying notes
TP-SUCP205 Thermoplastic Pillow Block Bearing | Food-Grade Configuration | 25 mm Bore is a pillow block bearing units using corrosion-resistant thermoplastic housing; this version uses setscrew locking. For fit approval, check base bolt spacing, centre height and foot length.
The surrounding use case is typically food processing, bottling, packaging and wet-process machinery, but the final choice still depends on the actual machine position and service conditions.
Representative
TP-SUCP205
Mounting
Solid-base pillow block
Locking
Setscrew
Bore d
25 mm
H
36.5 mm
L
140 mm
Legacy Footprint Review
Replacement work on an older machine is rarely as simple as reading the code on the bearing housing. The useful question is whether the new unit will occupy the same physical relationship to the shaft and frame after years of repairs, shimming or local modifications.
Before dismantling the support, capture the as-installed condition. Measure the shaft centre above the mounting face, record the fixing-hole locations, and photograph any spacers or non-standard hardware. If the base has been welded, slotted or repaired, treat those dimensions as the current machine reality. An old equipment manual can still be helpful, but it should not overrule what is physically present on the machine today.
Keep the removed unit until the replacement has been checked. The old part can reveal details that a worn label does not: which side maintenance staff approached, where the locking hardware sat, whether a cover was used, and how much clearance existed around the housing. Those clues are especially valuable when two candidate products share the same bore yet use a different footprint or shaft-retention method.
For purchasing, the best record is a short package containing the complete old code, the measured interface, and one wider photo of the installation. This reduces the chance of ordering a visually similar unit that only fails when the shutdown is already underway. Once a replacement fits successfully, update the spare-parts record with the confirmed dimensions rather than keeping an uncertain legacy description.
Technical Specifications & Drawing
| Bore d | 25 mm |
|---|---|
| H | 36.5 mm |
| L | 140 mm |
| J | 105 mm |
| A | 38 mm |
| N | 11 mm |
| N1 | 14 mm |
| H1 | 16 mm |
| H0 | 71 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| Bolt size | M10 |
| Weight | 0.32 kg |
| Load / Housing Strength Reference | |
| Housing breaking point - load mode 1 | 13,700 N |
| Load mode 2 | 10,000 N |
| Load mode 3 | 5,100 N |
As-installed dimensions to check

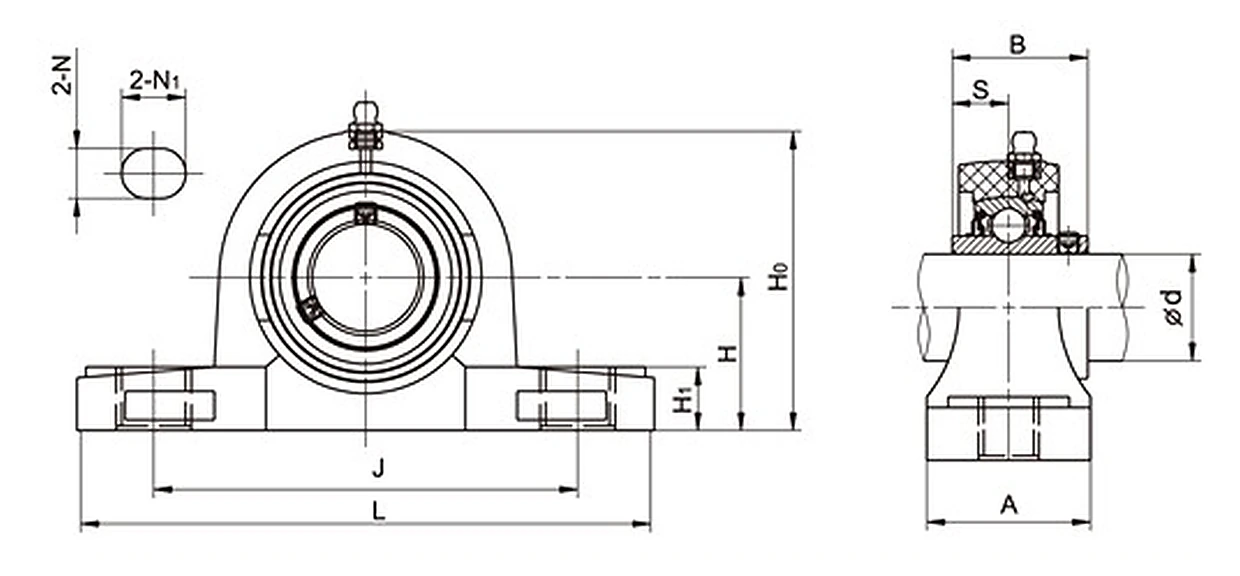

Use the drawing to compare base bolt spacing, centre height and foot length. Read the printed values rather than scaling the illustration; for modified equipment, send current machine measurements with the enquiry.
Applications
Food Processing
TP-SUCP205 can be considered for food processing where its solid-base pillow block geometry matches the machine. Base footprint and shaft-centre height are the first fit checks on existing frames.
Bottling & Packaging
For bottling & packaging, the setscrew arrangement changes installation access and shaft retention. Confirm that detail before standardising the spare.
Washdown Machinery
In washdown machinery service, use the construction of TP-SUCP205 only where the actual moisture, contamination and cleaning conditions match the selected product family.
